Hot Racing Arrma 1/8 Mod 1 Spur Gear, Hardened Steel

About this part

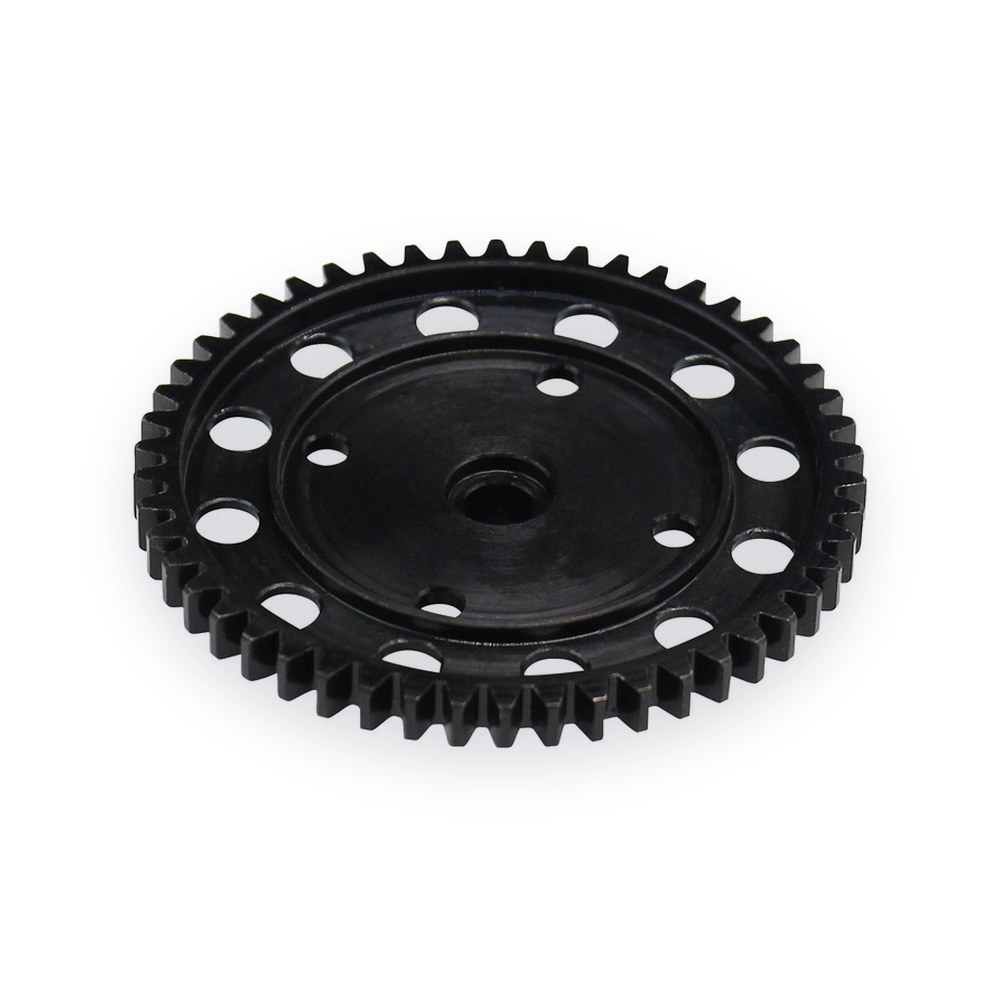

A 50 tooth hardened steel spur gear, Modulus 1 (1.0 metric pitch), for Arrma 1/8 4x4 vehicles. It replaces the stock 50T spur gear.

Features

• CNC machined hardened steel
• Black oxide finish
• Laser etched tooth count marking

You will receive

• One (1) 50 tooth, 1.0 modulus steel spur gear

Requirements

• Installation
• Medium thread lock is recommended on the screws

Specifications

• Overall diameter: 52mm
• Gear face width: 4.5mm

Comments

• Replaces stock 50T spur gear, AR310429.
• Known to fit the following Arrma part numbers. The vehicle part number is on Arrma's website, in the vehicle literature, or on the box near the barcode. A vehicle marked optional may fit but may need modification.
• Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
• Notorious: AR106034/6 (black/blue), ARA106044T1/2 (black/blue)
• Outcast: AR106021, AR106027, AR106032/3 (silver/orange), ARA106042T1/2 (silver/orange)
• Senton: AR106007, AR102654, AR102673
• Talion: AR106003, AR106014, AR106030 (2018 V3 model), ARA106048 (V4)
• Typhon: AR106001, AR106013, AR106028, ARA106046

Fits

Replaces stock part
