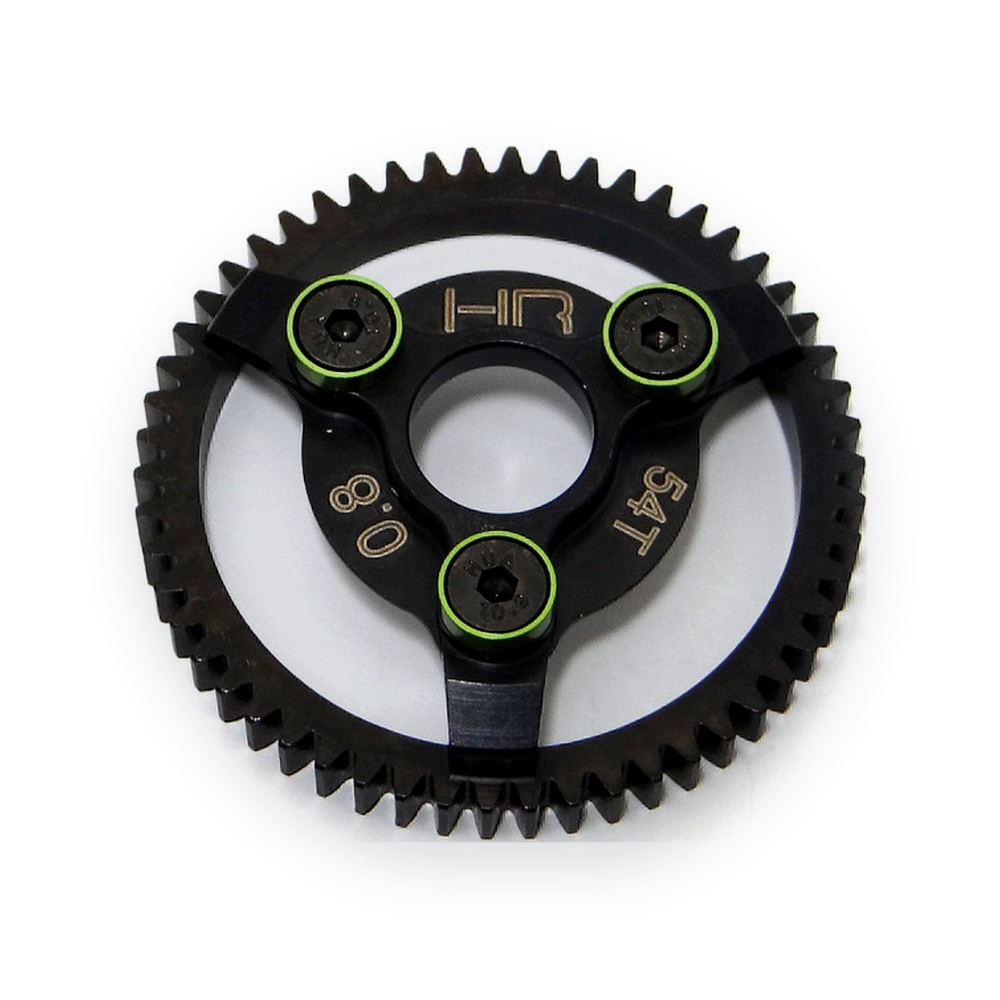

Hot Racing TRA Steel Spur Gear, 54t 32p (Green)

About this part

Lightweight hardened steel spur gear with 54 teeth and a 32 pitch (0.8 module). It is made for the TRA Bandit, Rustler, 2WD Slash, 2WD Stampede and Telluride, and it replaces the stock nylon spur gear. The green anodized washers are countersunk aluminum.

Features

• CNC machined and lightened hardened steel construction
• Rugged 0.8 module, 32 pitch teeth for brushless power
• Black oxide coating for durability and corrosion resistance
• Green anodized countersunk aluminum washers
• High strength hardware

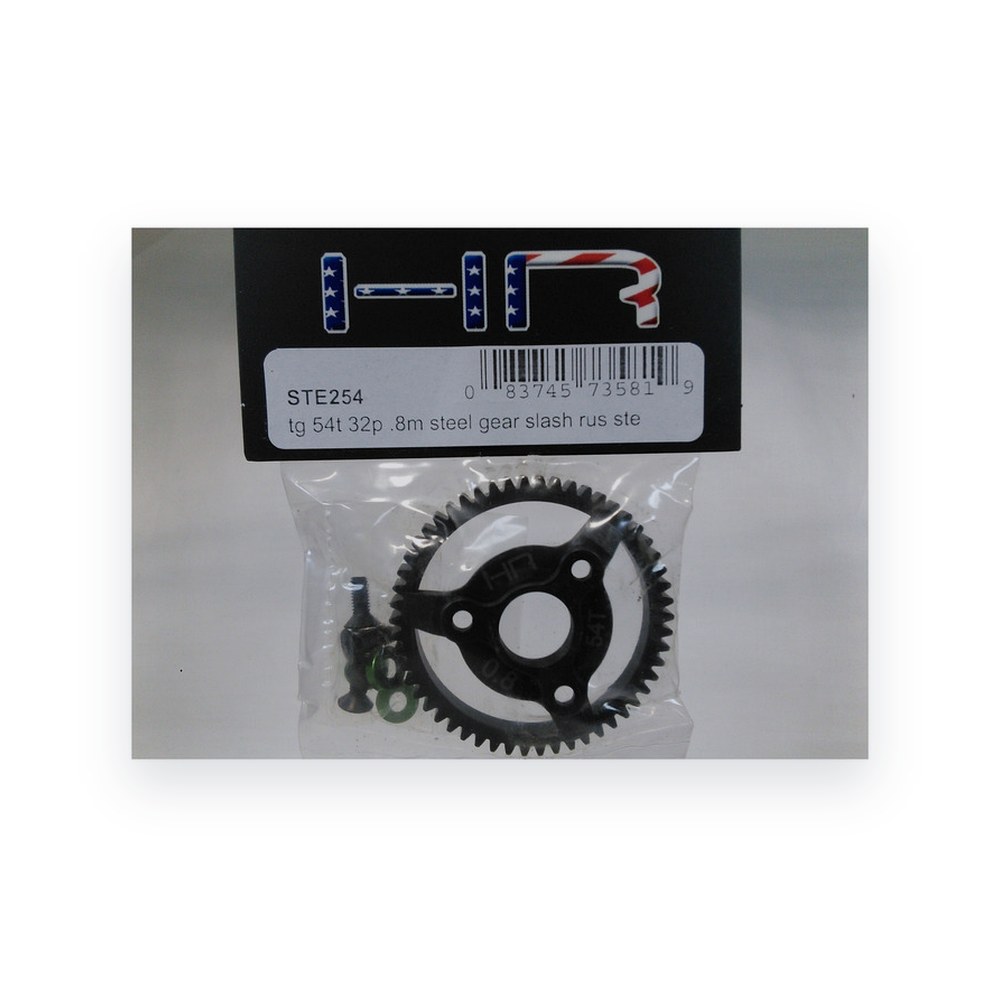

You will receive

• One (1) 54 tooth, 32 pitch (0.8 module) spur gear
• Three (3) mounting screws
• Three (3) green anodized countersunk washers
• Three (3) washers, to use under the countersunk washers when the screw ends would otherwise stick through the spur backing plate

Requirements

• Hardened 0.8 module (32 pitch) steel pinion gear

Specifications

• Teeth: 54
• Pitch: 32 (0.8 module)
• Mounting holes: 3
• Face width: about 5mm

Comments

• Use only with a 0.8 module (32 pitch) pinion gear. Hot Racing motor lock plate TE18L06 is recommended for secure motor mounting. Keep the motor below 180F and the ESC below 160F. Excess heat shortens the life of both.

Fits
