Hot Racing Arrma 6S All Gearbox Case Bulkhead, Aluminum HD

About this part

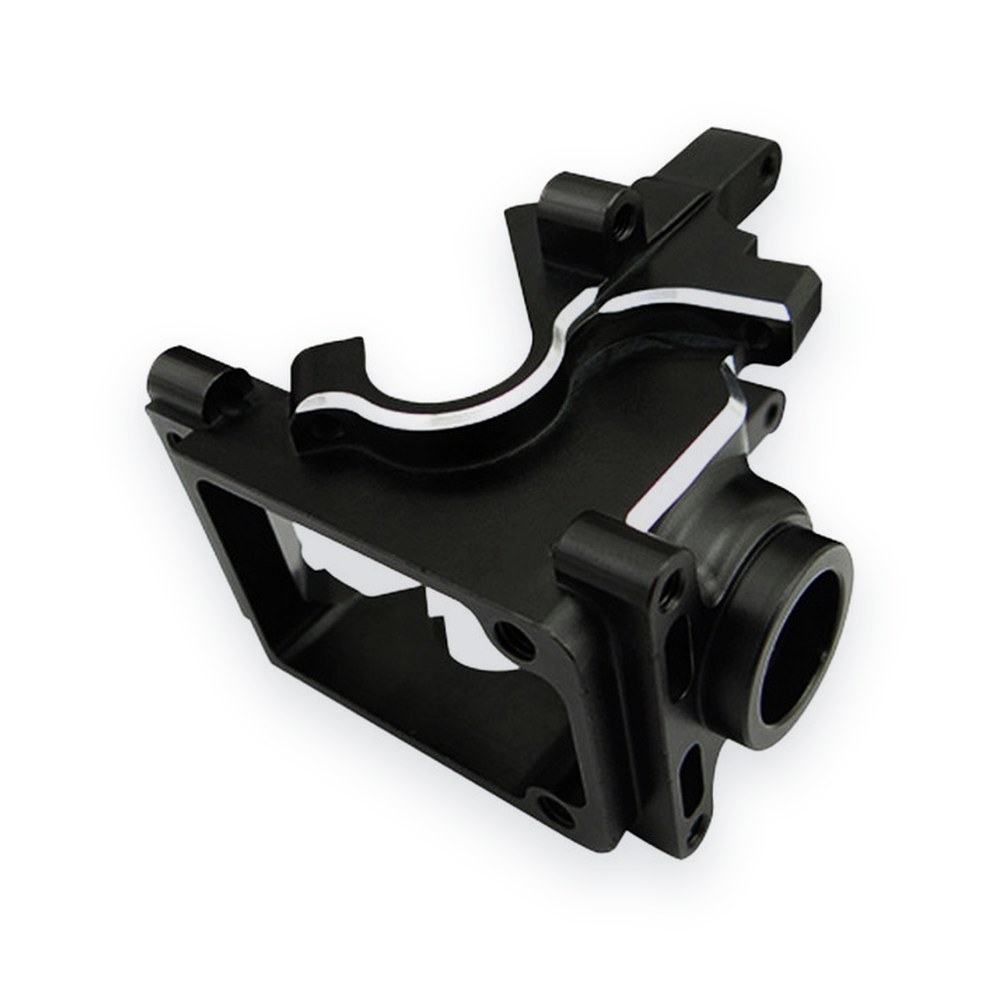

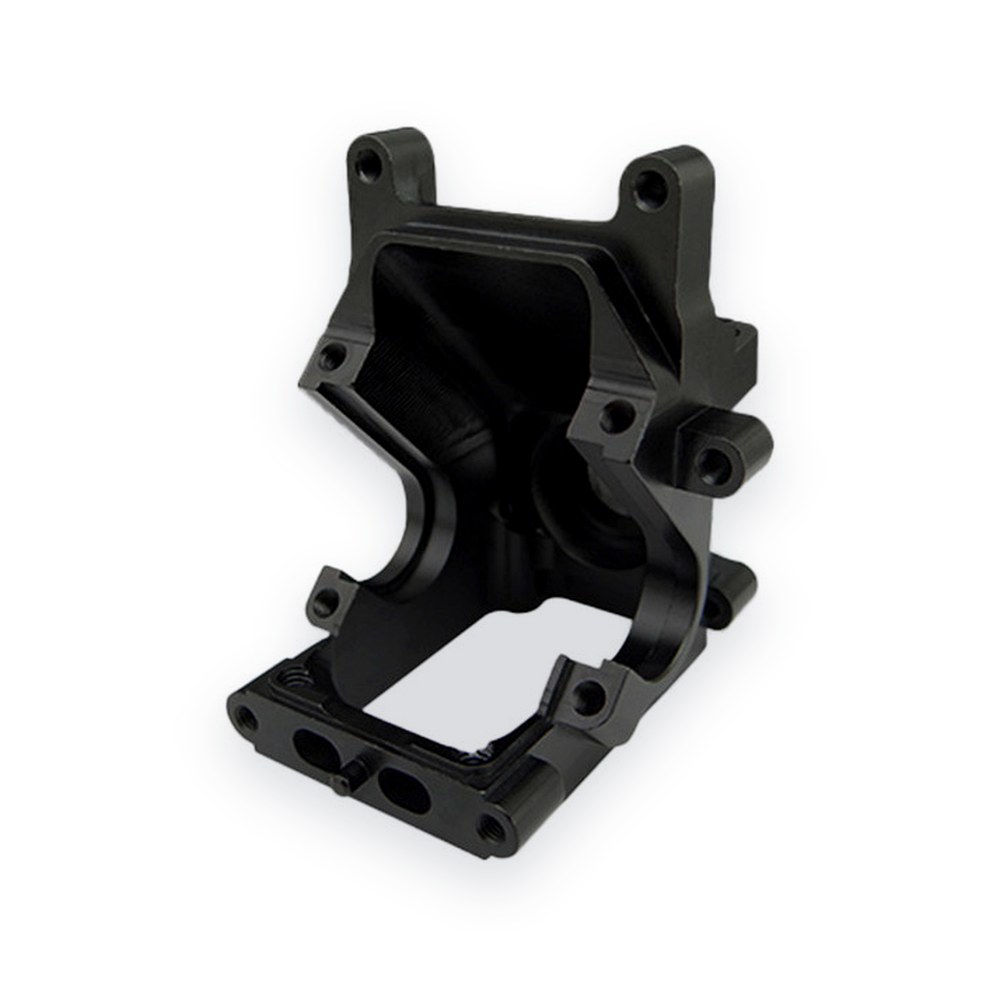

Hot Racing aluminum gearbox case with an HD output bearing, now updated to fit all Arrma 6S vehicles. Check the compatibility notes below before ordering.

Features

• Stiffer, stronger assembly
• Replaces the stock 5x11x4mm unsealed outer pinion bearing with an oversized 5x13x4mm sealed bearing for a stiffer, stronger drive train
• CNC machined aluminum
• Black anodized with machine chamfered edges
• Works on either the front or rear
• Direct fit, no modification needed
• IN THE BOX:
• One gearbox case main body
• One 5x13x4mm black rubber sealed ball bearing
• Hardware

Requirements

• All other parts apart from the lower gearbox case, including the stock 8x19x6mm inner pinion bearing
• Assembly per the vehicle manual
• Medium (blue) thread lock on the screws

Notes

• Replaces the factory lower gearbox case from Arrma AR310427 or AR310854.
• Known to fit the following. Vehicle part numbers can be found on Arrmas website, in the vehicle literature, or on the box near the barcode. A vehicle marked 'optional' may fit but may need modification.
• 1/7 Fe

Fits

Replaces stock part
