Hot Racing Arrma Kraton Outcast Gearbox Case Bulkhead, Aluminum HD

About this part

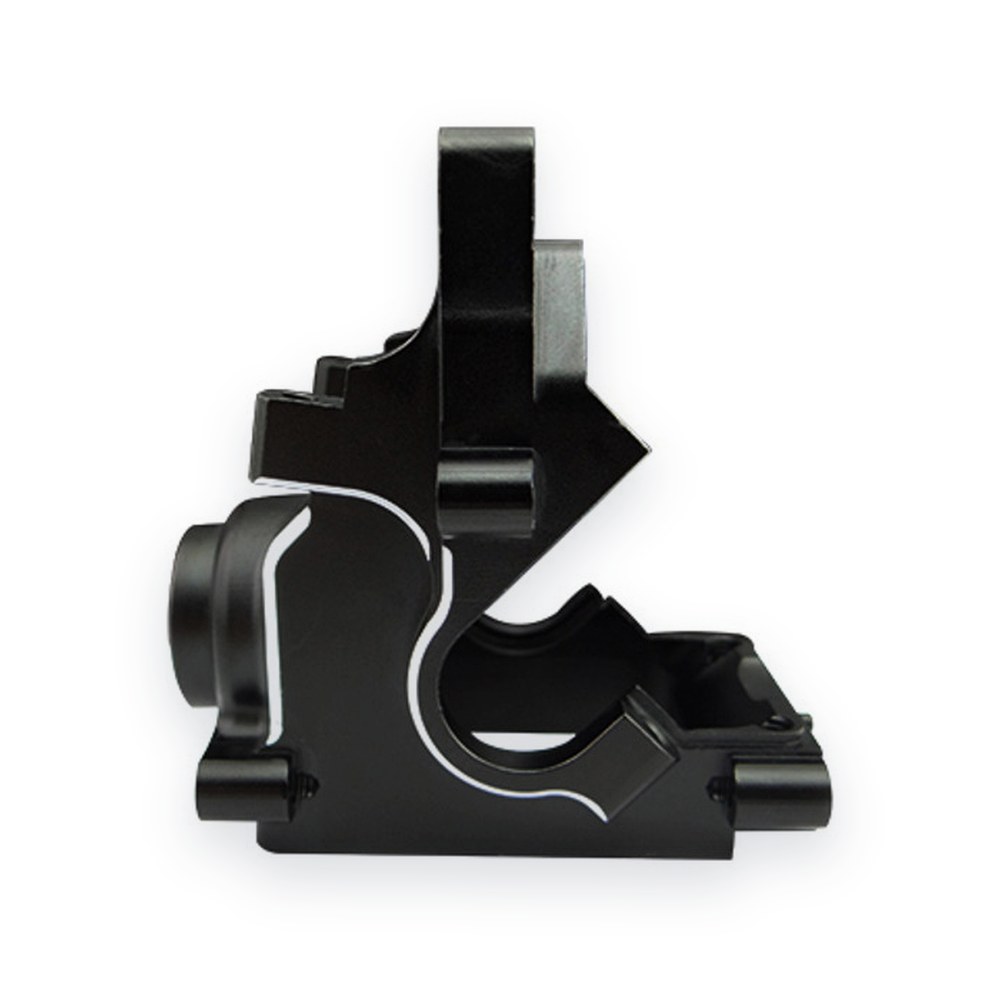

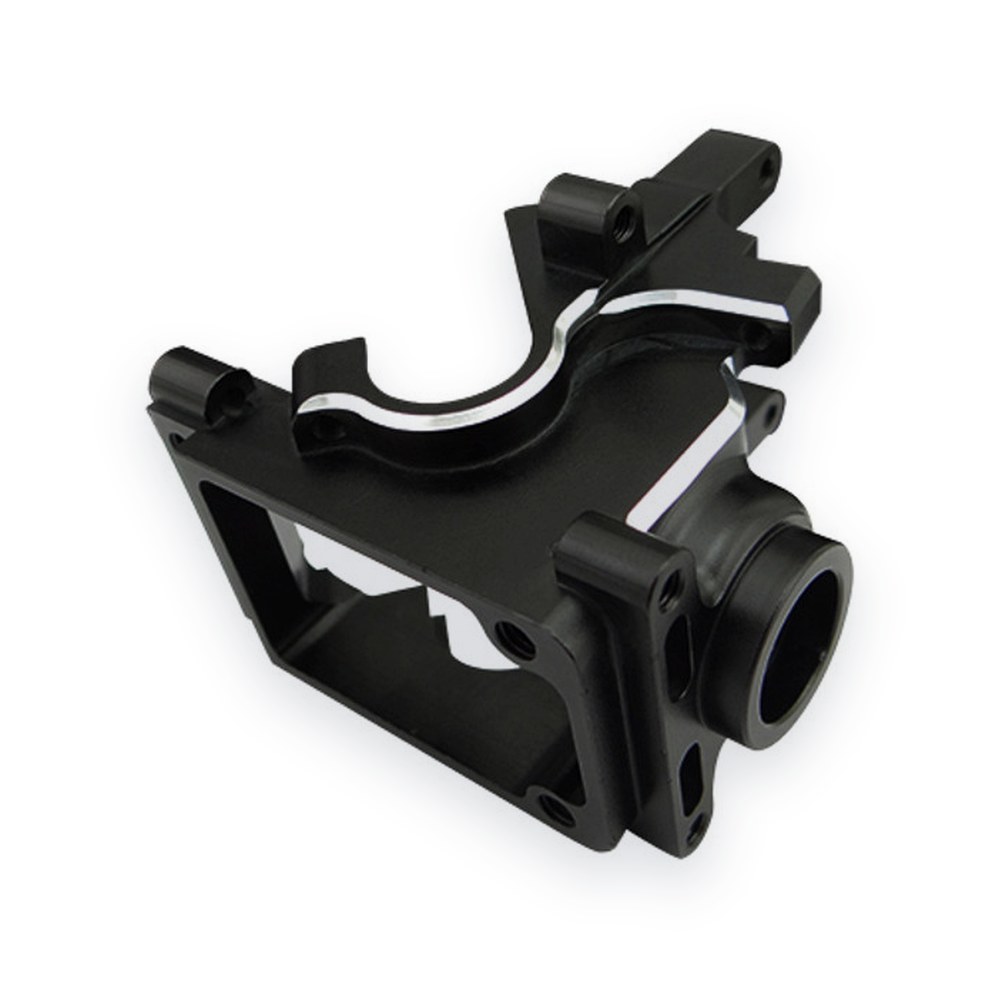

Hot Racing aluminum gearbox case with an HD output bearing, for the front or rear of the 1/8 BLX Arrma Kraton, Notorious, Outcast, Senton, Talion, and Typhon. Check the compatibility notes below before ordering.

Features

• Stiffer, stronger assembly
• Replaces the stock 5x11x4mm unsealed outer pinion bearing with an oversized 5x13x4mm sealed bearing for a stiffer, stronger drive train
• CNC machined aluminum
• Black anodized with machine chamfered edges
• Works on either the front or rear
• Direct fit, no modification needed
• IN THE BOX:
• One gearbox case main body
• One 5x13x4mm black rubber sealed ball bearing
• Hardware

Requirements

• All other parts apart from the lower gearbox case, including the stock 8x19x6mm inner pinion bearing
• Assembly per the vehicle manual
• Medium (blue) thread lock on the screws

Notes

• Will not work with the Felony or Infraction.
• Replaces the factory lower gearbox case from Arrma AR310427 or AR310854.
• Known to fit the following. Vehicle part numbers can be found on Arrma's website, in the vehicle literature, or on the box near the barcode. A vehicle marked 'optional' may fit but may need modification.

Fits

Replaces stock part
