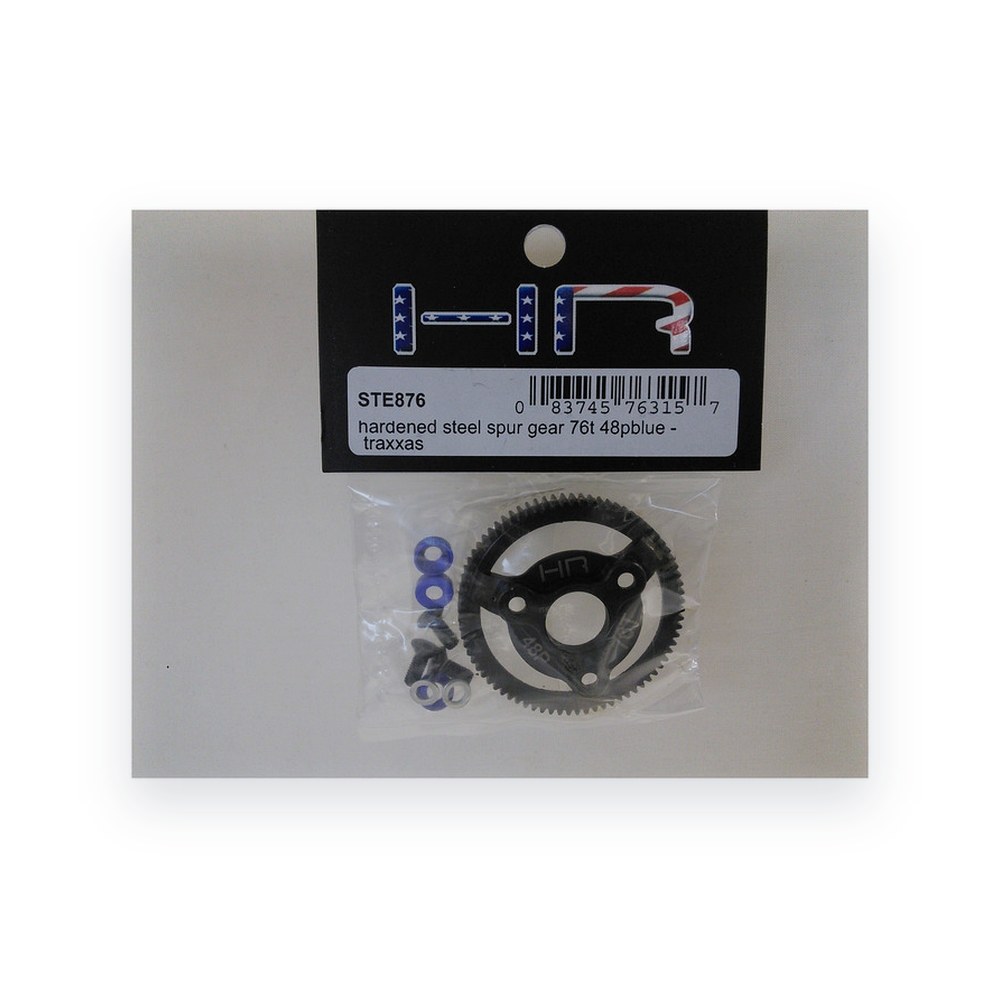

Hot Racing TRA Hardened Steel Spur Gear, 76t 48p (Blue)

About this part

Lightweight hardened steel spur gear with 76 teeth and a 48 pitch. It is made for the TRA Bandit, 2WD Slash, Rustler, 2WD Stampede and Telluride, and it replaces the stock nylon spur gear. The blue washers are anodized countersunk aluminum.

Features

• CNC machined and lightened hardened steel construction
• Replaces the stock nylon spur gear
• Black oxide coating for durability and corrosion resistance
• Blue anodized countersunk aluminum washers
• High strength hardware

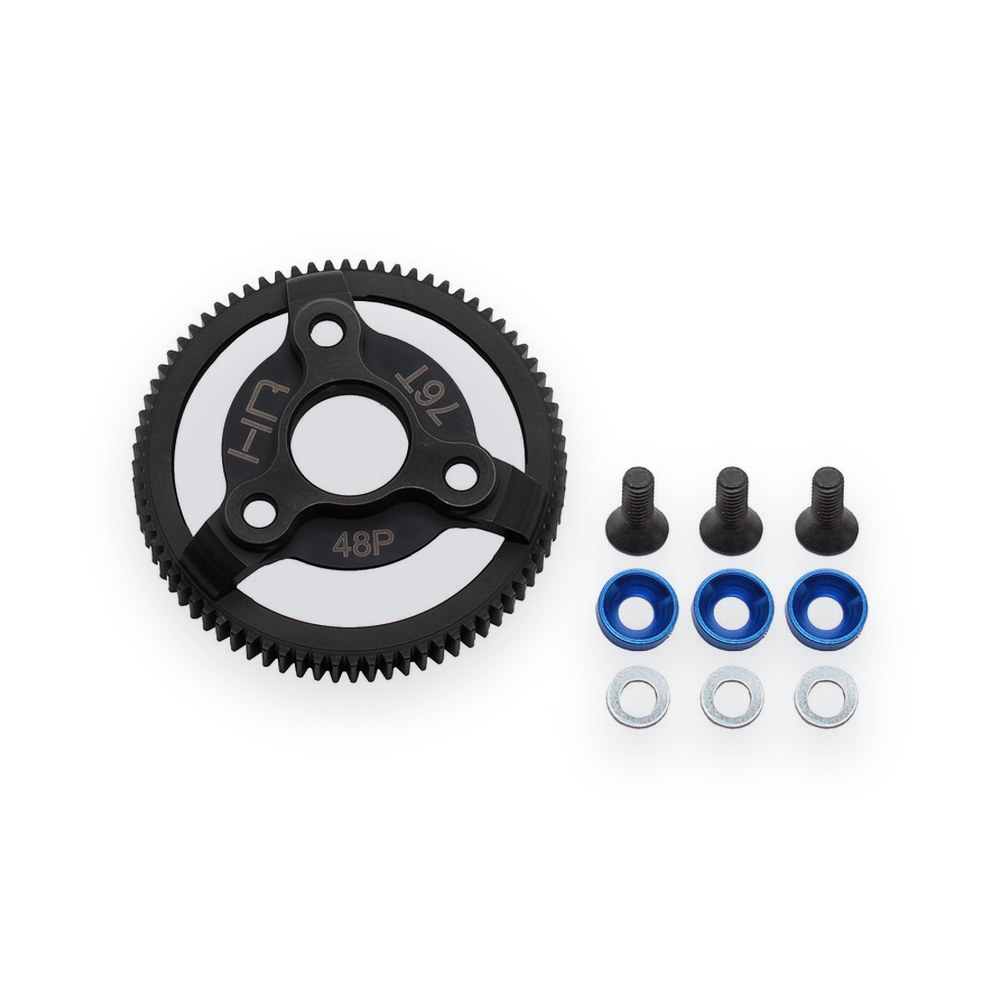

You will receive

• One (1) 76 tooth, 48 pitch spur gear
• Three (3) mounting screws
• Three (3) blue anodized countersunk washers
• Three (3) washers, to use under the countersunk washers when the screw ends would otherwise stick through the spur mounting plate

Specifications

• Teeth: 76
• Pitch: 48
• Mounting holes: 3
• Face width: about 5mm

Comments

• Hot Racing motor lock plate TE18L06 is recommended for secure motor mounting. Keep the motor below 180F, and no higher than 160F if possible. Keep the ESC below 160F. Excess heat shortens the life of both.

Fits
