About this part

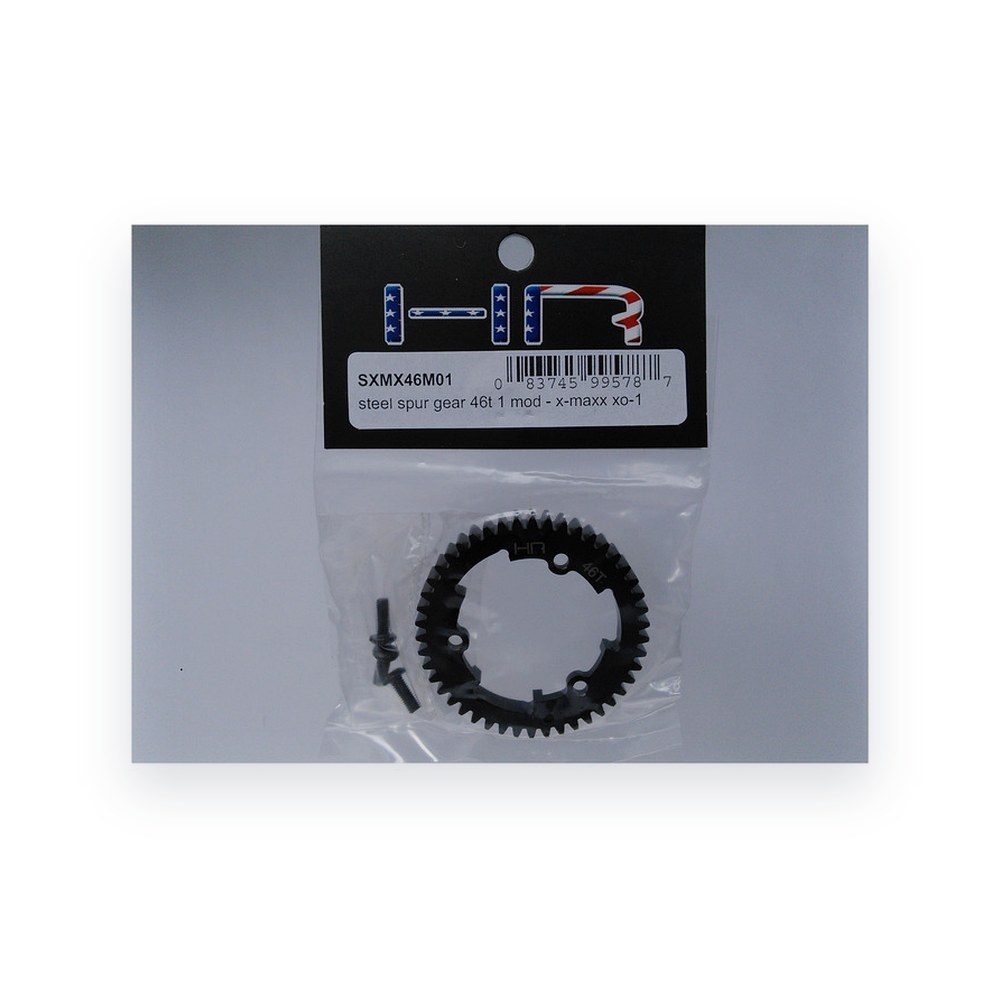

Hot Racing 46 tooth hardened steel Mod 1 (1.0 metric pitch) spur gear for the TRA E-Revo2 6S and 8S, Maxx 4S, XO-1, XRT, and Sand Car. CNC machined, black oxide finished, with a laser-etched tooth count. INCLUDED: One 46 tooth, 1.0 modulus steel spur gear
Requirements

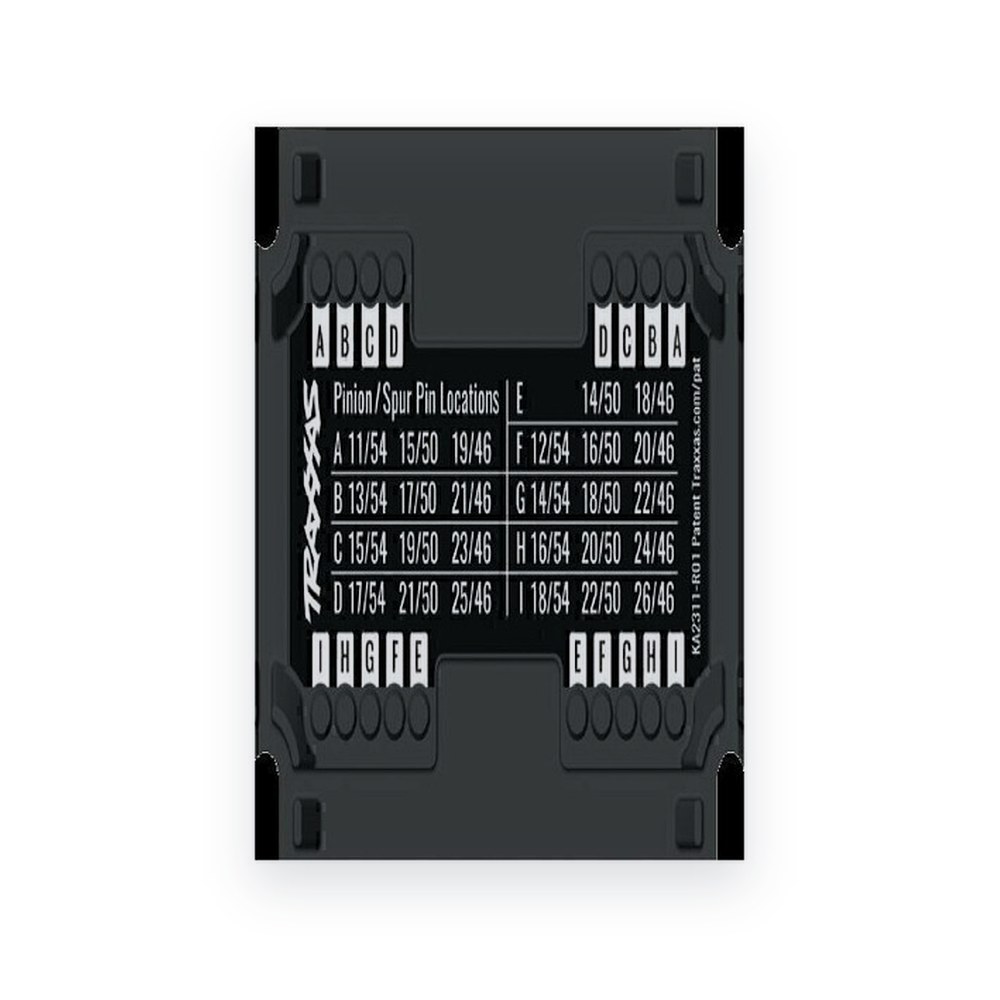

- Do not use the pin system to set gear mesh. Set mesh by hand without the pins, following the TRA manual (ref. pg. 22, Adjusting Gear Mesh). Loosen the four 4x16mm button-head cap screws, run a narrow strip of notebook paper through the mesh, slide the motor and pinion in, retighten the screws, and remove the paper. A fresh strip should pass through without binding.
Specifications
- Overall diameter: 48.7mm
- Gear face width: 8mm
Note
- Replaces the TRA plastic 6447 or 6447X 54T spur gear.
- FITS:
- Traxxas E-Revo 2.0
- Traxxas Maxx, Maxx Slash
- Traxxas Pro Scale 2WD Sand Car
- Traxxas X-Maxx, X-Maxx 8S
