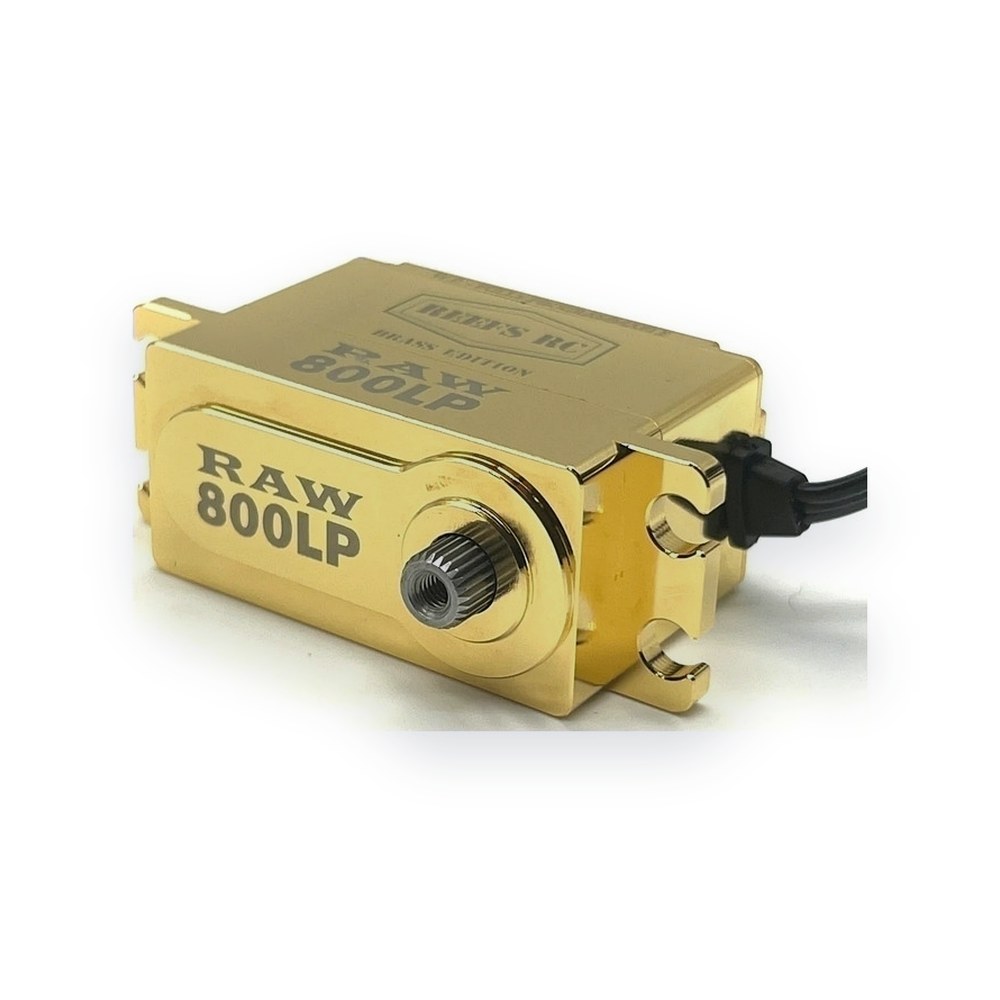

Reefs RC RAW 800LP Brass Edition Servo, Fully Programmable
SEHREEFS160

Reefs RC RAW 800LP Brass Edition Servo, Fully Programmable

Reefs RC Radio Accessories
$225.79
Out of stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked: this one just sold out — check back soon.

About this part

The RAW800LP Brass Edition is a fully programmable, brushless low-profile servo. A BEC is not required, but it is recommended for best performance.

Specifications

  • Motor: 4 pole brushless
  • Submarine waterproof with 7 point seals
  • Positioning: magnetic angle sensor
  • Voltage: 4.8V - 8.4V
  • Programming: REEFS LINK required (optional)
  • Gears: steel
  • Spline: 25T
  • Dead band width: 2
  • Case: CNC aluminum
  • Bearings: 2 ball bearings
  • Weight: 2.3oz / 66gm
  • Dimensions (LWH): 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
  • Torque: 635oz @ 6v / 715oz @ 7.4v / 800oz @ 8.4v
  • Speed: .12sec @ 6v / .10sec @ 7.4v / .09sec @ 8.4v
  • Unload current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
  • Load current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
  • Fits Align T-Rex 250, 450, 500, 550, 600, and 700.

Fits

Align T-Rex 250Align T-Rex 450Align T-Rex 500Align T-Rex 550Align T-Rex 600Align T-Rex 700Arrma 1:10 2WD ADX-10 BuggyArrma 1:10 2WD Fury (old)Arrma 1:10 2WD Granite MegaArrma 1:10 2WD Raider BLX BuggyArrma 1:10 4x4 Vorteks 3S BLXArrma 1:10 Mojave Desert TruckAssociated 1:10 Apex Touring V-TypeAssociated B44.xAssociated RC-10 DS
