Redcat Hexfly 25kg Metal Gear Waterproof Servo, .13/347 @6.8v
RER11856

Redcat Hexfly 25kg Metal Gear Waterproof Servo, .13/347 @6.8v

Redcat Radio Accessories
$39.99
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

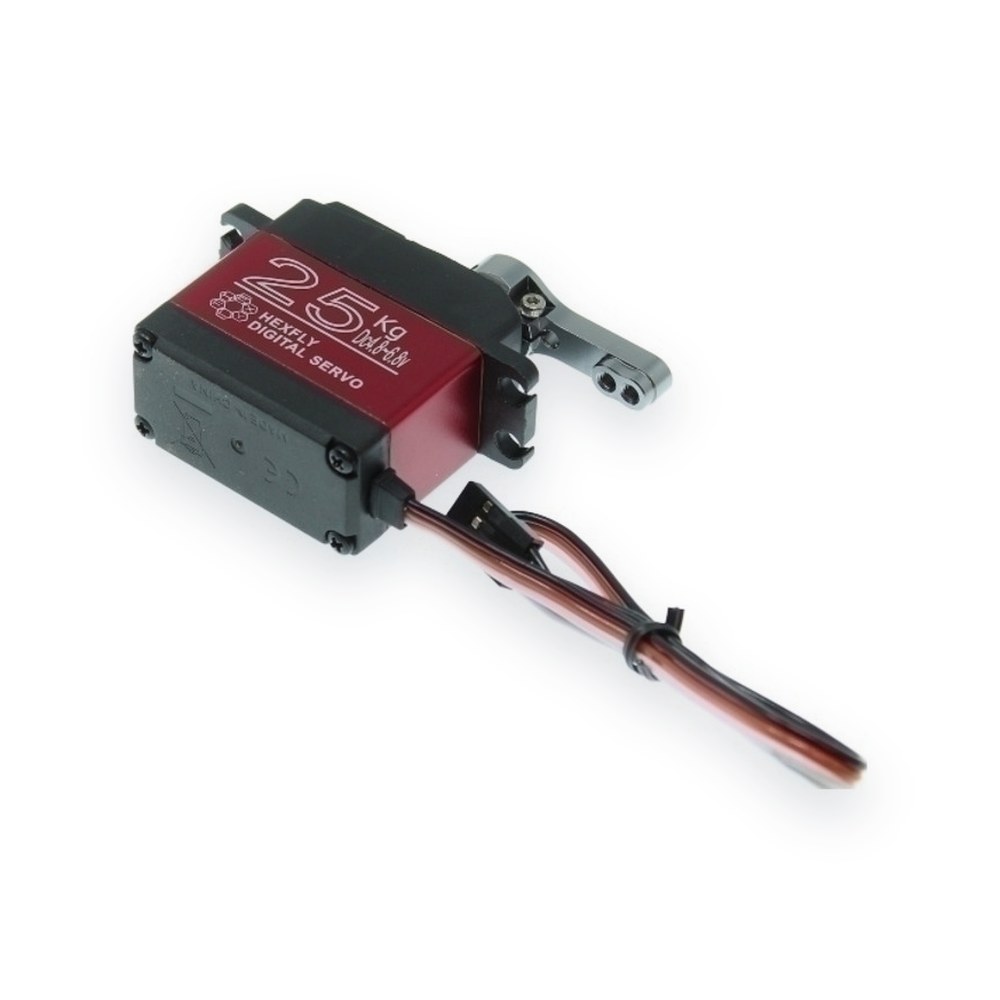

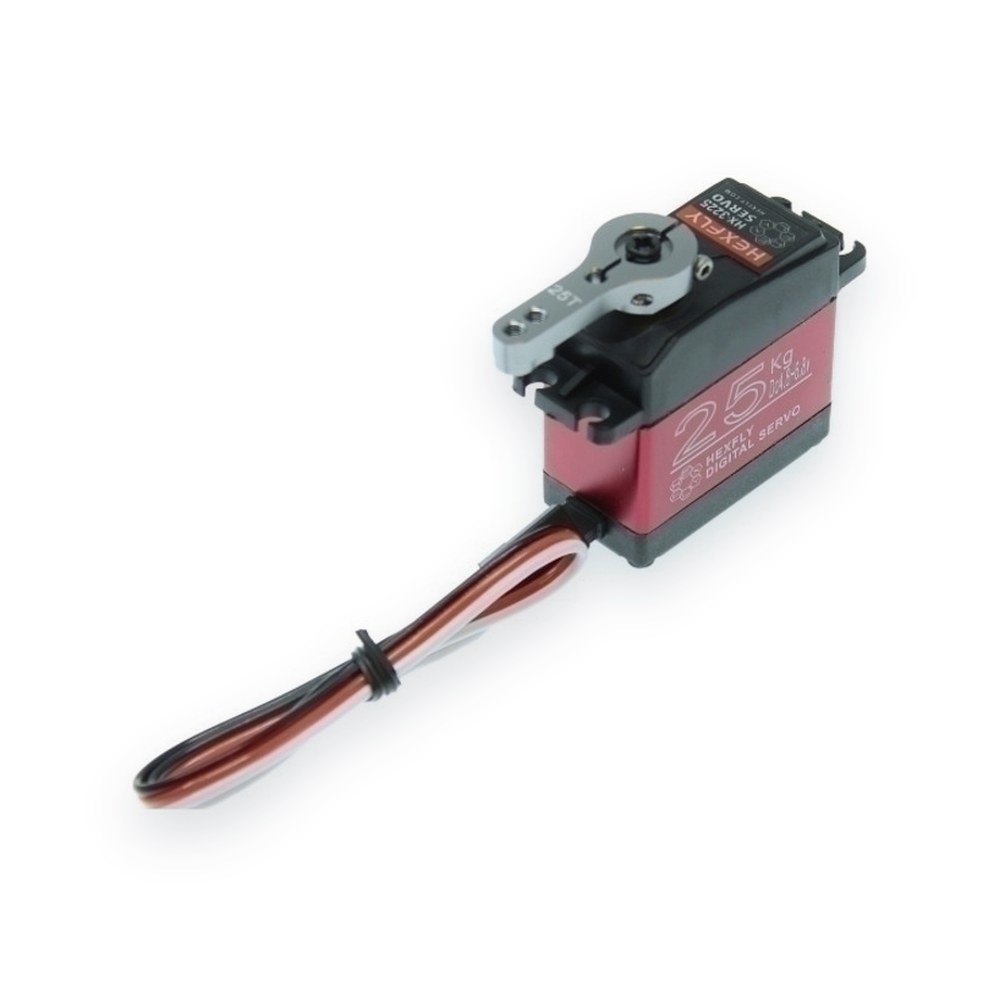

A 25kg high torque waterproof digital servo from Hexfly, model HX-3225. It has metal gears, a CNC aluminum center case for heat dissipation, and an aluminum 25T servo arm. It suits RC trucks, boats, planes and robots. The gears are hard anodized metal for accuracy and longer life.

Specifications

  • Torque up to 25kg/cm at 6.8V
  • Operating voltage 4.8 to 6.8V
  • Speed 0.14 sec/60 degrees at 5.0V, 0.13 sec/60 degrees at 6.8V
  • Stall torque 21kg/cm at 5.0V, 25kg/cm at 6.8V
  • Dead band 3s
  • Working frequency 50 to 333Hz
  • Connector wire 300mm (11.8")
  • Gear type metal, motor type DC
  • Servo size 40 x 20 x 40.5mm
  • Weight 67g
  • 270 degree rotation
  • Fits Align T-Rex 250, 450, 500, 550, 600 and 700.

Fits

Align T-Rex 250Align T-Rex 450Align T-Rex 500Align T-Rex 550Align T-Rex 600Align T-Rex 700Arrma 1:10 2WD ADX-10 BuggyArrma 1:10 2WD Fury (old)Arrma 1:10 2WD Granite MegaArrma 1:10 2WD Raider BLX BuggyArrma 1:10 4x4 Vorteks 3S BLXArrma 1:10 Mojave Desert TruckAssociated 1:10 Apex Touring V-TypeAssociated B44.xAssociated Mini MGT 3.0 RTR
