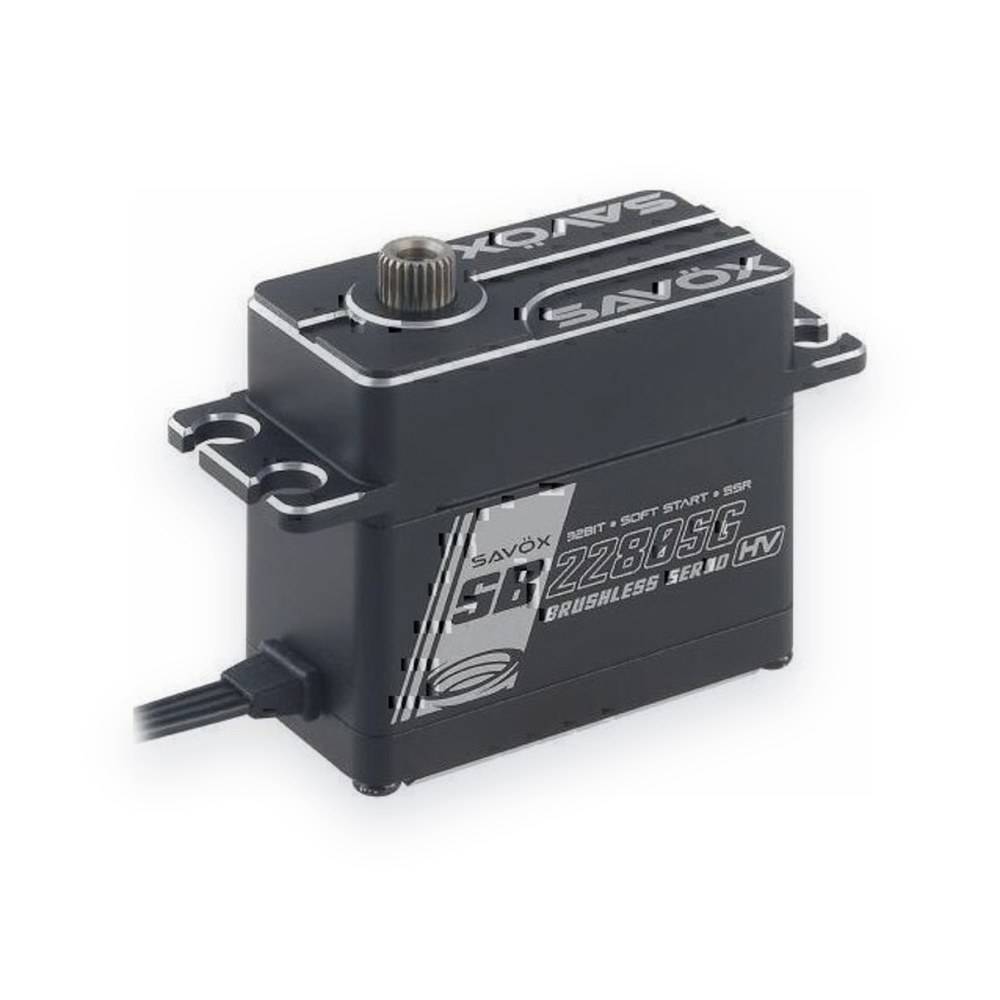

Savox High Voltage Brushless Monster Torque Servo with Steel Gears

About this part

Savox SB-2280SGP high voltage brushless monster torque servo with a steel gear train and soft start. It uses 12-bit (4096) resolution for precise control and is capable of high voltage operation. Plus series models include Sanwa SSR compatibility. It suits 1/8 buggies, crawlers, and large-scale aircraft.

Specifications

• Torque: 40.0 kg-cm / 555.5 oz-in at 6V, 50.0 kg-cm / 694.4 oz-in at 7.4V, 60.0 kg-cm / 833.2 oz-in at 8.4V
• Speed: 0.17 sec/60 at 6V, 0.14 sec/60 at 7.4V, 0.12 sec/60 at 8.4V
• Dimensions (L x W x H): 40.3 x 20.2 x 38.7 mm
• Weight: 83 g
• Operating temperature: -10 to 50 C (14 to 122 F)
• Running current, no load: 180 mA at 6.0V, 200 mA at 7.4V, 220 mA at 8.4V
• Stall current: 6000 mA at 6.0V, 7400 mA at 7.4V, 8400 mA at 8.4V
• Idle current: 5 mA at each voltage
• Wire length: 300 +/- 5 mm
• Output spline: 25 tooth
• Operating travel: 100 (1000-2000 us)
• Neutral: 1500 us
• Pulse width range: 800-2200 us
• Maximum travel: approx. 130 (900-2100 us)
• Refresh rate: 333 Hz
• Motor: brushless
• FITS:
• Align T-Rex 250, 450, 500, 550, 600, 700
