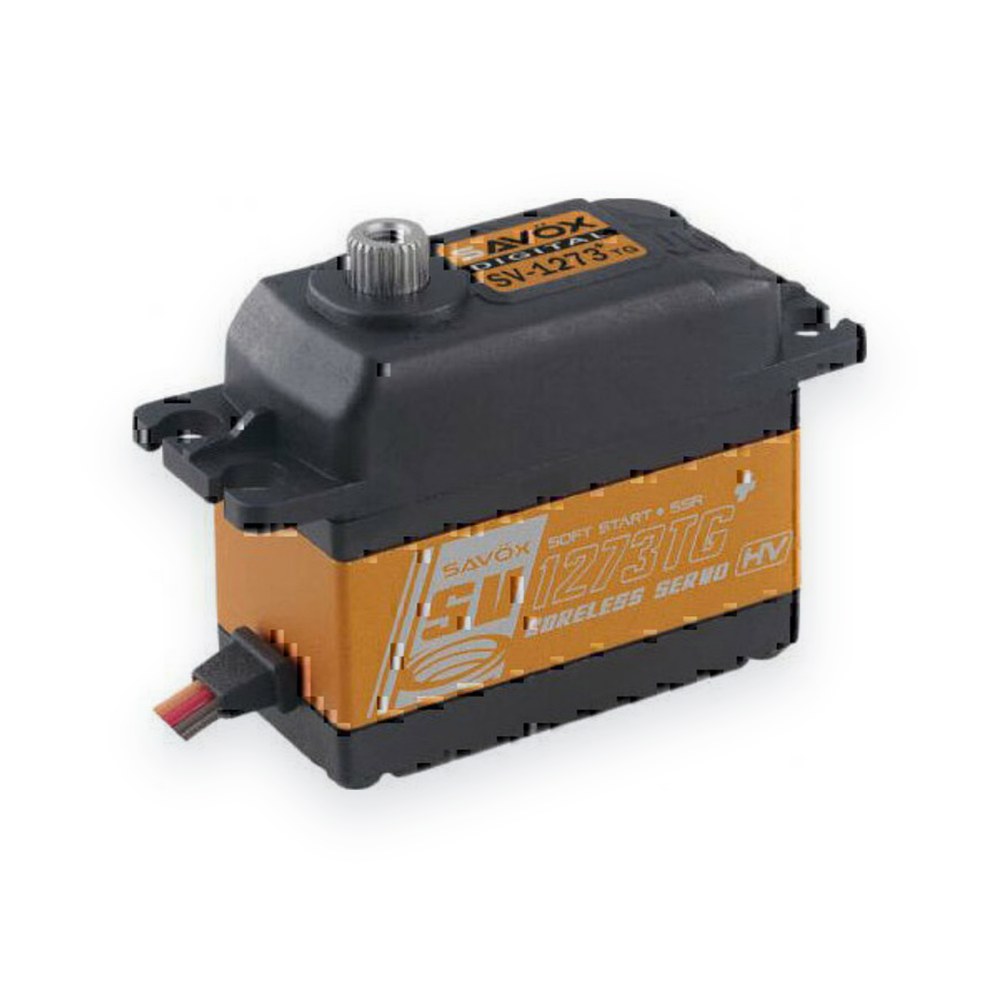

Savox High Voltage Coreless Digital Servo with Soft Start, 0.055 sec

About this part

The SV-1273TG is an ultra-speed high voltage digital servo with titanium gears. It is well suited to 1/10 buggies and some helicopter applications. Plus series servos include soft start and Sanwa SSR compatibility.

Features

• Precision titanium gears that hold up to heavy use
• High voltage (HV) operation
• Ideal for 1/10 buggies and some heli applications

Specifications

• Torque @ 7.4V: 20.0kg/277.7oz-in
• Torque @ 8.4V: 25.0kg/347.2oz-in
• Speed @ 7.4V: 0.065 sec/60 deg
• Speed @ 8.4V: 0.055 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
• Weight: 64.0g
