AON11E02Hot Racing Arrma Differential Case, Modular 31mm
Hot Racing Drive-train: gearbox and gears
$20.79
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part

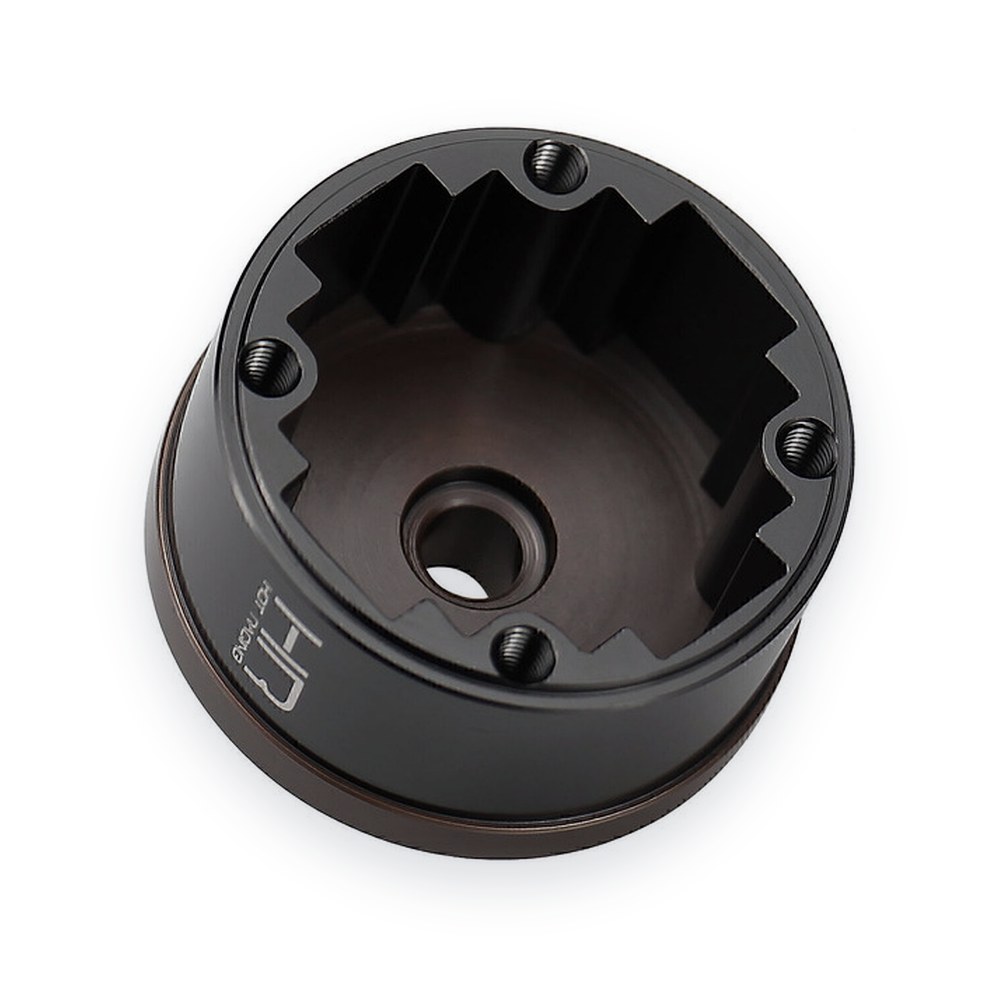

Aluminum modular differential case for the 1/8 Arrma Kraton BLX, Notorious BLX, Outcast BLX, Senton BLX, Talion BLX, and Typhon BLX, and the 1/7 Limitless and Infraction. It fits the front, center, or rear differential. CNC machined from 6061 aluminum, anodized black. It has a steel pinion side plate for longevity and an o-ring for a better seal and easy reuse. Fits: Arrma 1:10 4x4 Senton 6S BLX, 1:7 4x4 Mojave 6S BLX V5, 1:7 Felony, 1:7 Fireteam 6S BLX Assault, 1:7 Infraction, 1:7 Limitless.
You will receive
- One differential carrier
- Four ring gear screws
- Two o-ring gaskets, one already installed
Requirements
- Replacement for Arrma AR310433
- Reused spider and output gears (from Arrma AR310433), gaskets and o-rings, and ring/pinion
- Medium thread lock recommended on the screws. Do not overtighten. Use only silicone diff lube.
Comments
- Replacement o-ring.
- Replaces Arrma AR310433 or ARA220050 differential carrier.
- Entries marked optional may fit but may need modification.
- Infraction: ARA109001
- Kraton: AR106005, AR106015, AR106018, AR106029/31 (red/green), ARA106040T1/2 (red/blue)
