Hot Racing TRA Differential Carrier Housing, Aluminum

About this part

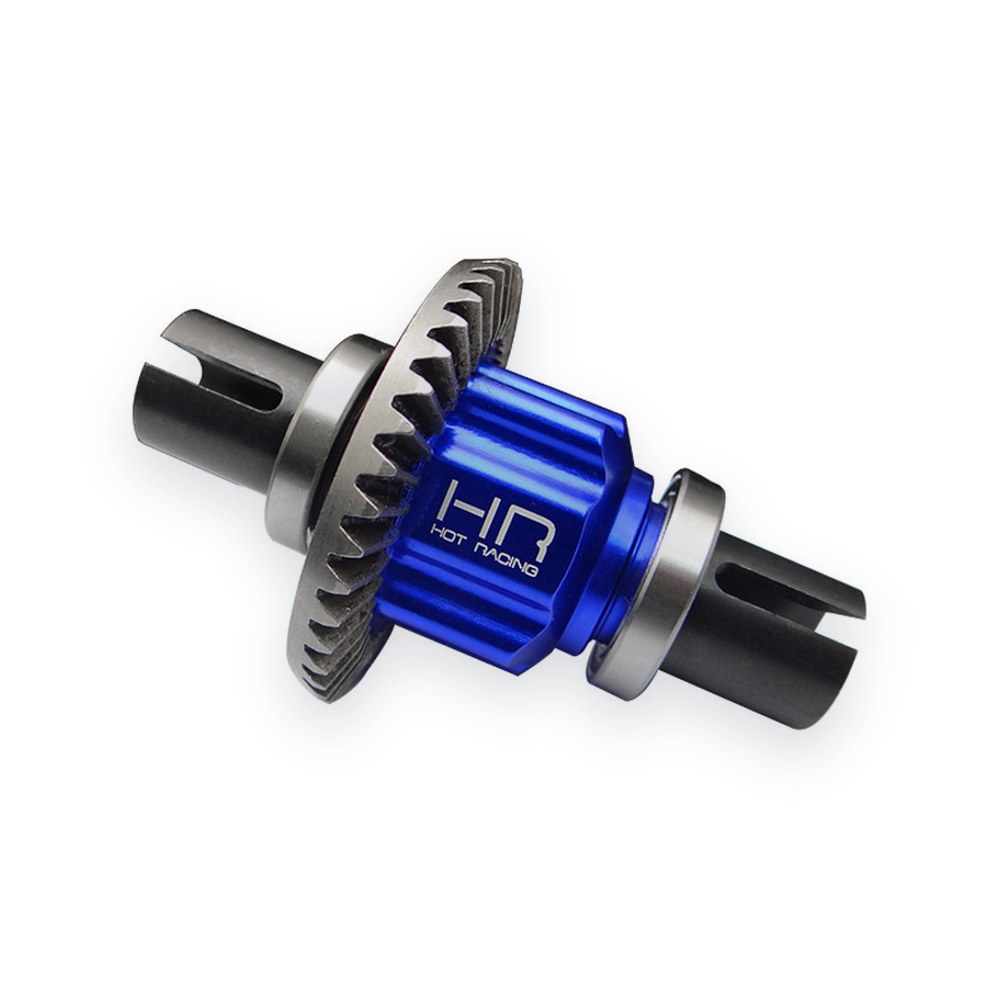

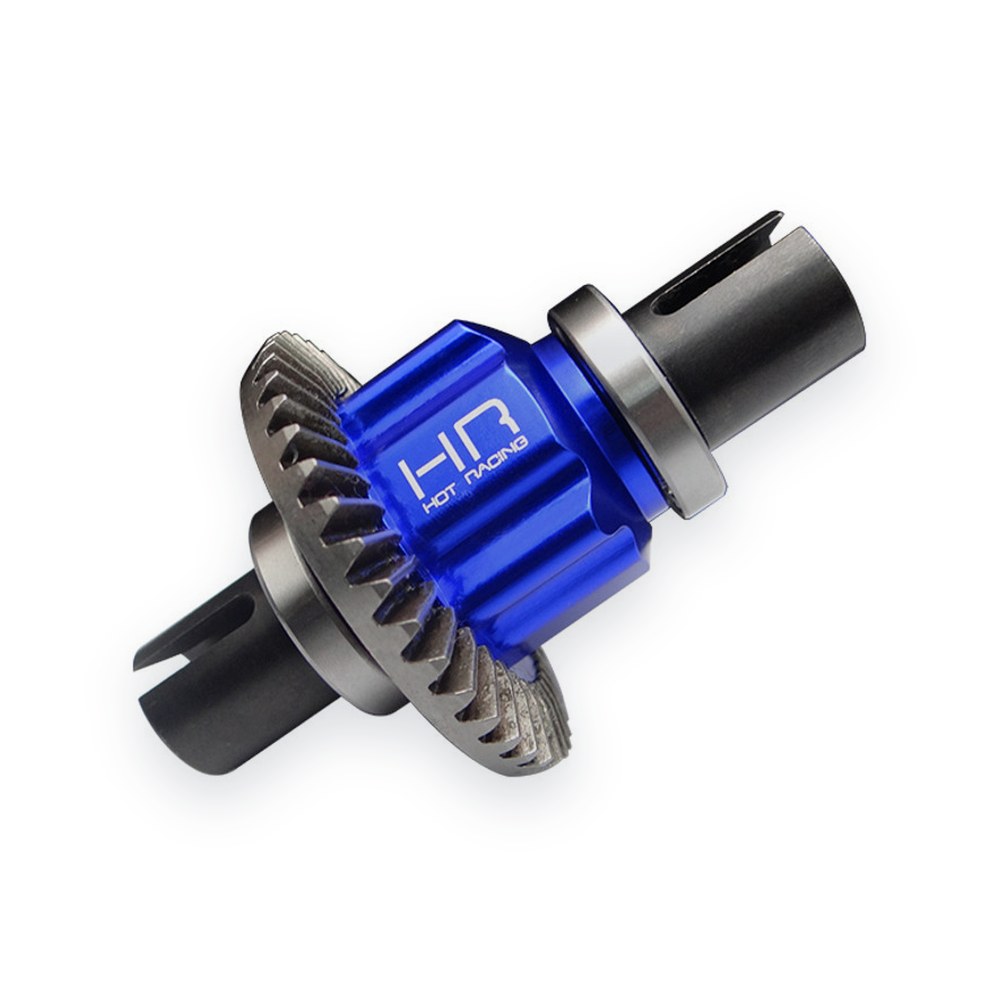

Hot Racing aluminum differential carrier housing for the front, rear and center differential on the TRA 6S and 8S. FITS: Traxxas Pro Scale 2WD Sand Car, X-Maxx, X-Maxx 8S, XRT 8S

Features

• CNC machined from aluminum
• Anodized blue with laser etched lettering
• Fits the front, rear and center differential
• INCLUDED:
• One (1) aluminum differential case
• Four (4) M3x10mm button head cap screws
• REQUIRED:
• Spider gear shaft and spacers (TRA7783), spider gear (TRA7782), and stock gaskets (TRA7781)
• Blue threadlocking compound on the ring gear screws
• Silicone diff lube
• Tighten the ring gear screws in a star pattern
• A light coat of grease on the ring and pinion gears, per TRA recommendations

Specifications

• Length: about 31.7mm, diameter: about 36.7mm
• Bearing race: 17mm
• Weight: 14g

Notes

• Replaces the plastic TRA carrier housing from TRA 7781 (and 7781x). The seals are reused.

Fits

Replaces stock part
