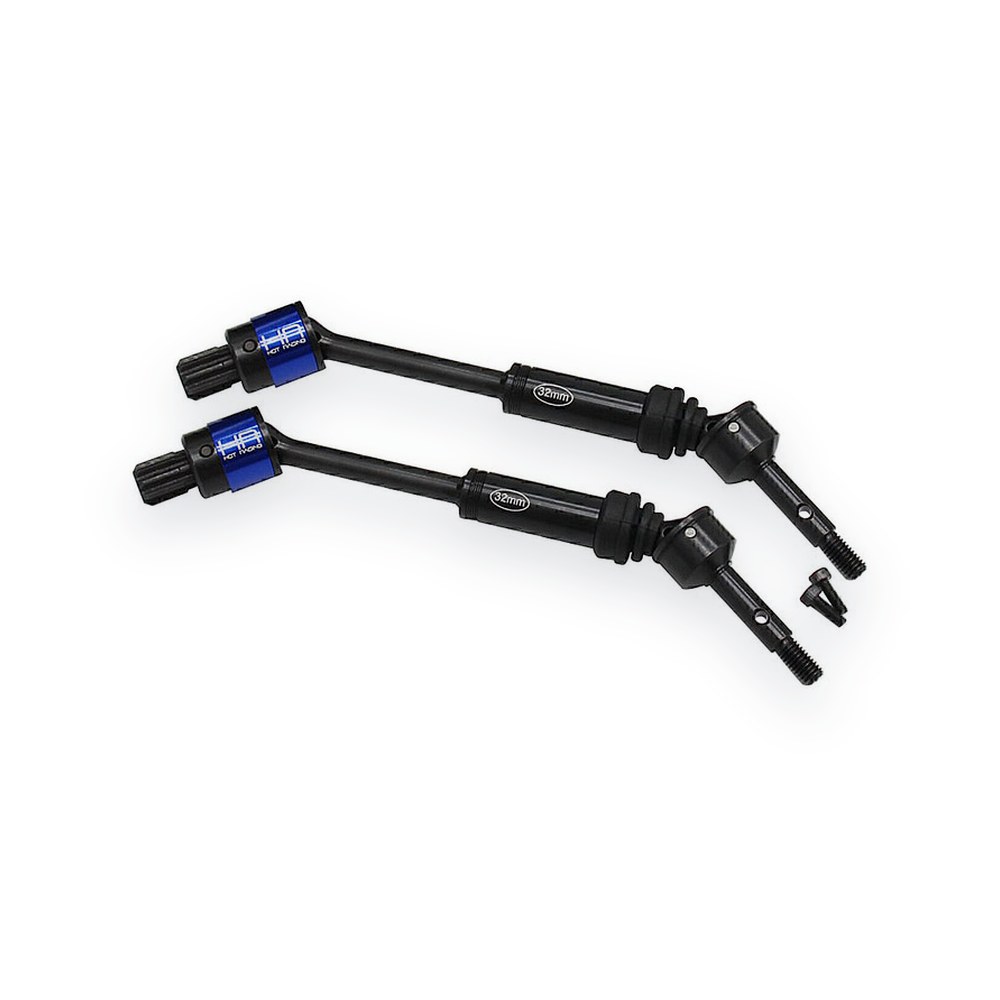

Hot Racing TRA UDR Steel Front CV Splined Axles, Drive Shaft

About this part

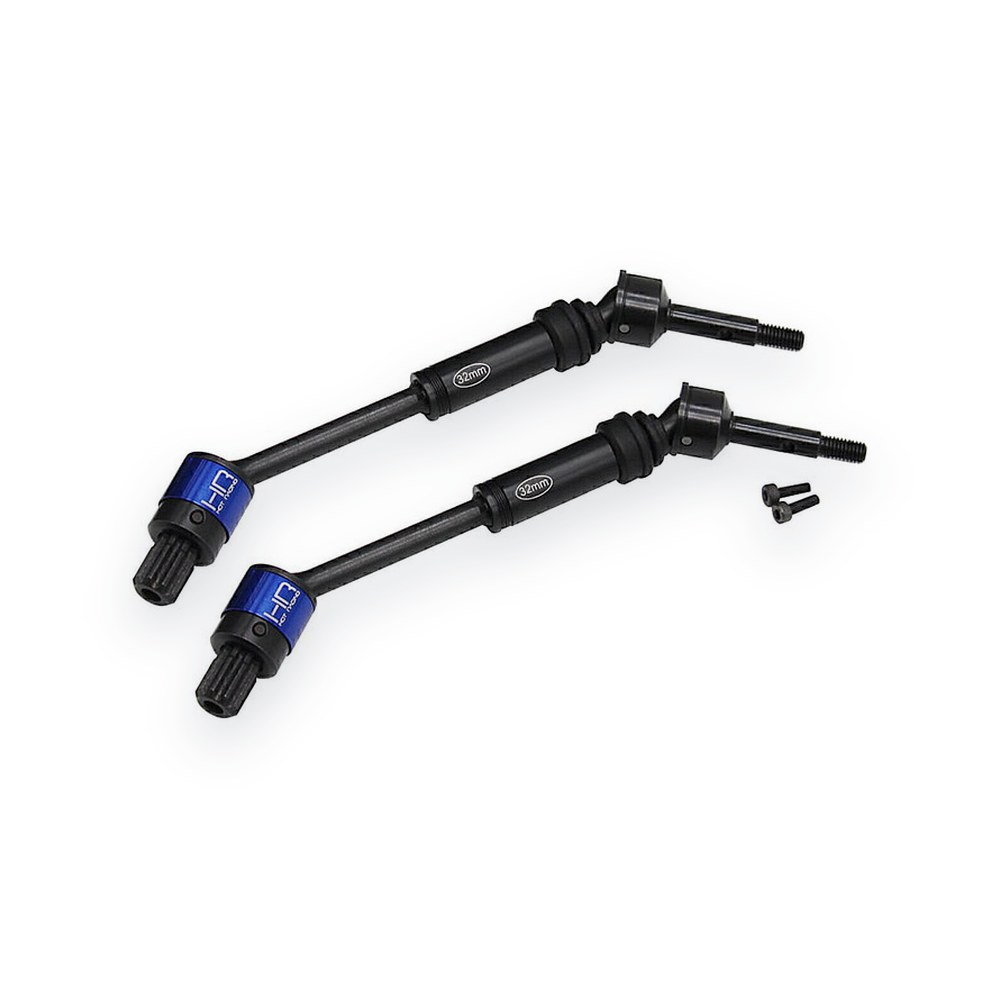

A heavy-duty front splined CV axle kit from Hot Racing for the Traxxas Unlimited Desert Racer. It replaces the factory dogbone-style axles, from the differential out to the wheel hex. The CV joints, drive hub, slider spline, and stub axle are CNC-machined from hardened steel, and the slider tube is CNC-machined aluminum.

Features

• CNC-machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
• CNC-machined aluminum slider tube
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement

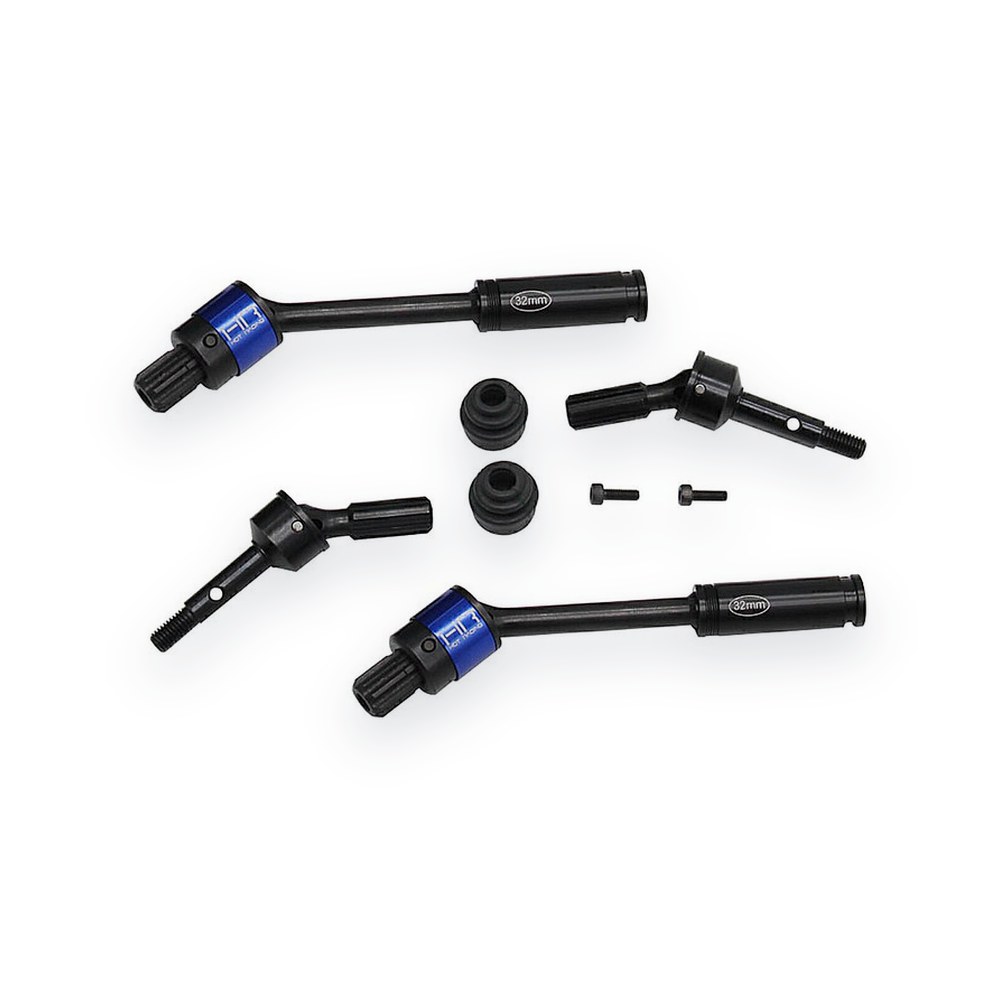

• INCLUDED:
• Two front splined CVD shaft assemblies
• Two M2.5 x 7 mm cap head screws

Requirements

• Installation to the drive assembly
• Reuses the drive pins
• Grease is recommended on the CV joint and shaft spline
• Medium threadlock is recommended on screws that thread into metal

Specifications

• Collapsed overall length 154 mm
• Extended overall length 164 mm, with zero shaft engagement
• Collapsed wheel pin to outdrive pin 138 mm
• Extended wheel pin to outdrive pin 148 mm, with zero shaft engagement
• Weight 132 g per pair

Notes

• Replaces TRA axle parts 8551 (drive cup and screw), 8550 (dogbone), 8553 (stub axle), and 8554 (CV joint)
• The Hot Racing replacement drive hu
