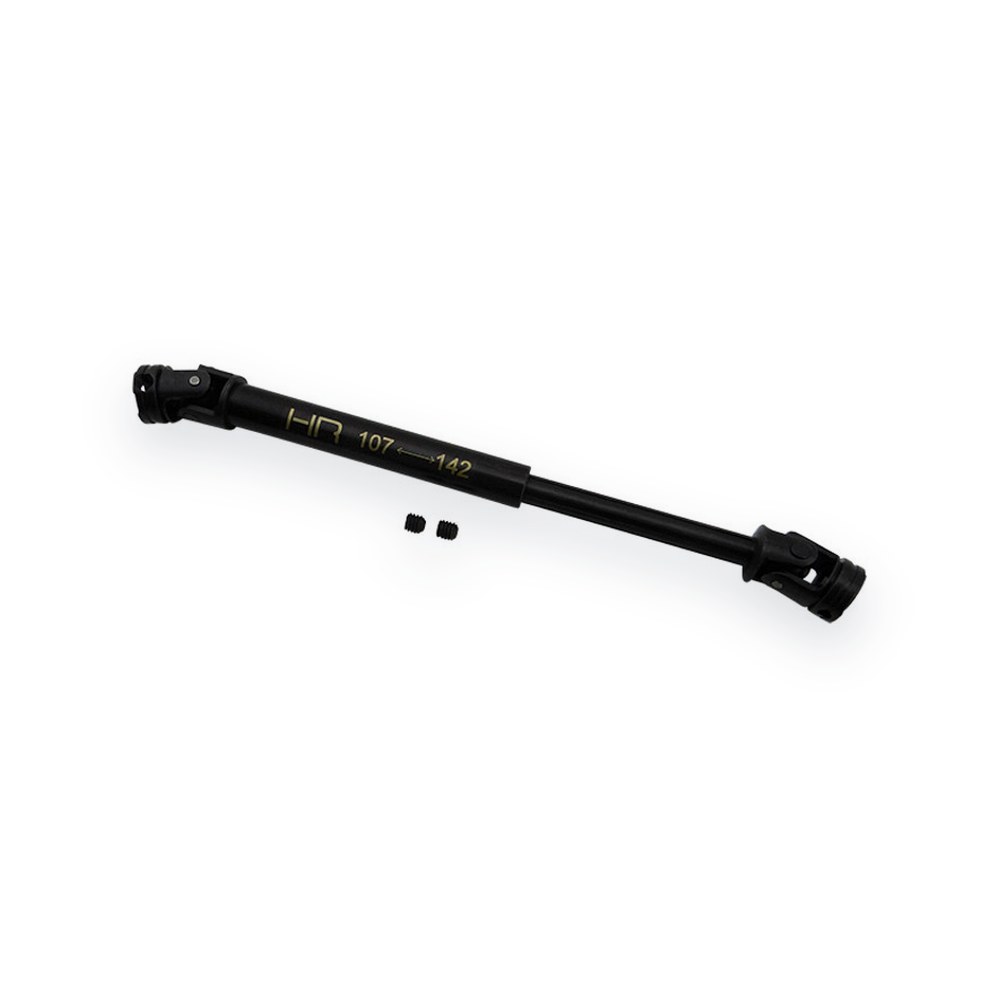

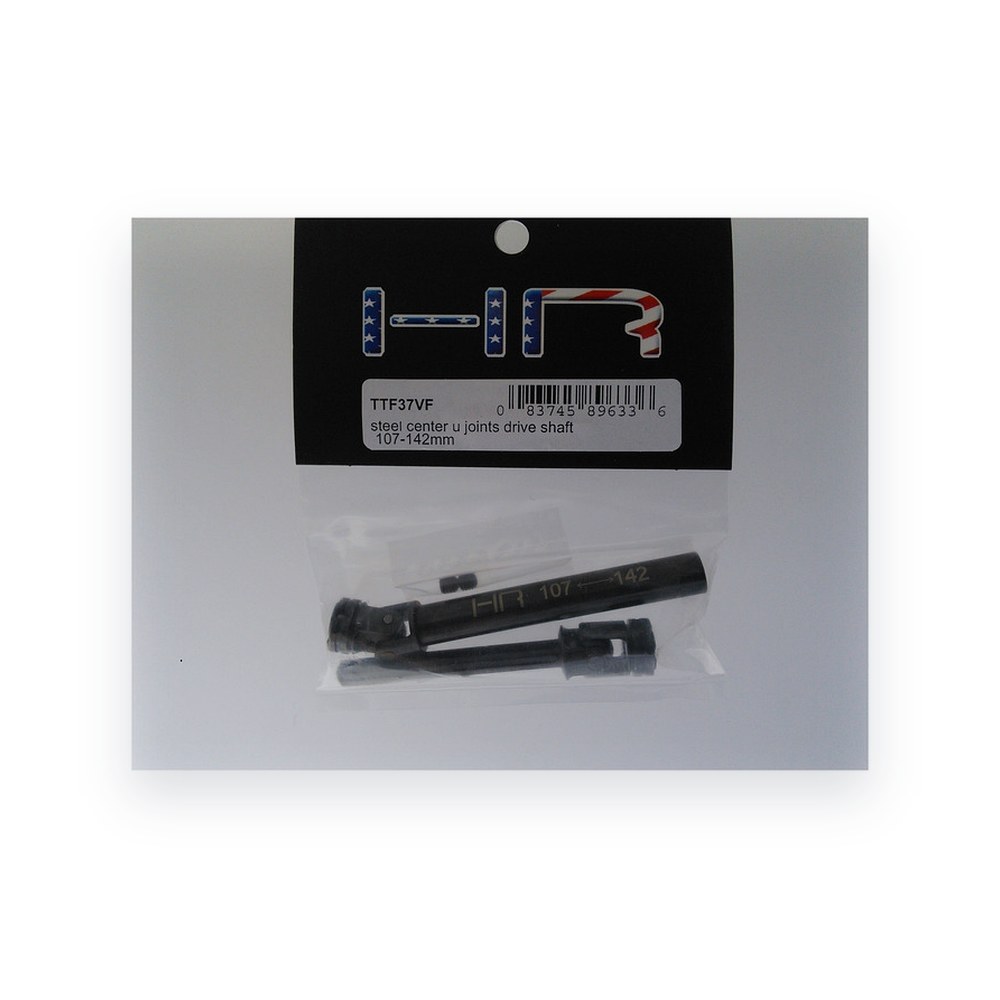

Hot Racing Steel Center U Joints Drive Shaft, 107-142mm

About this part

Optional upgrade center U-joint drive shaft from Hot Racing with splined star ends. It suits a range of vehicles, including the Tamiya Tractor 620, the Hauler, the Tamiya CC-01, the front of the Tamiya CR-01, or a custom build. Check the specifications below to confirm fit for your vehicle.

Features

• Heavy duty CNC machined hardened carbon steel construction
• Compatible with 5mm output shafts
• Black finished steel
• INCLUDED:
• One TTF37VF center CVD drive shaft assembly

Requirements

• Keep the U-joint and shaft spline greased
• A removable-type locking adhesive is recommended on screws threading into metal

Specifications

• Collapsed length, end to end: 102mm
• Recommended travel limits, end to end: 107-142mm (35mm total travel)
• Spline engagement at 142mm: 10mm
• Compatible with 5mm output shafts
• M3 threaded holes for vehicle attachment
