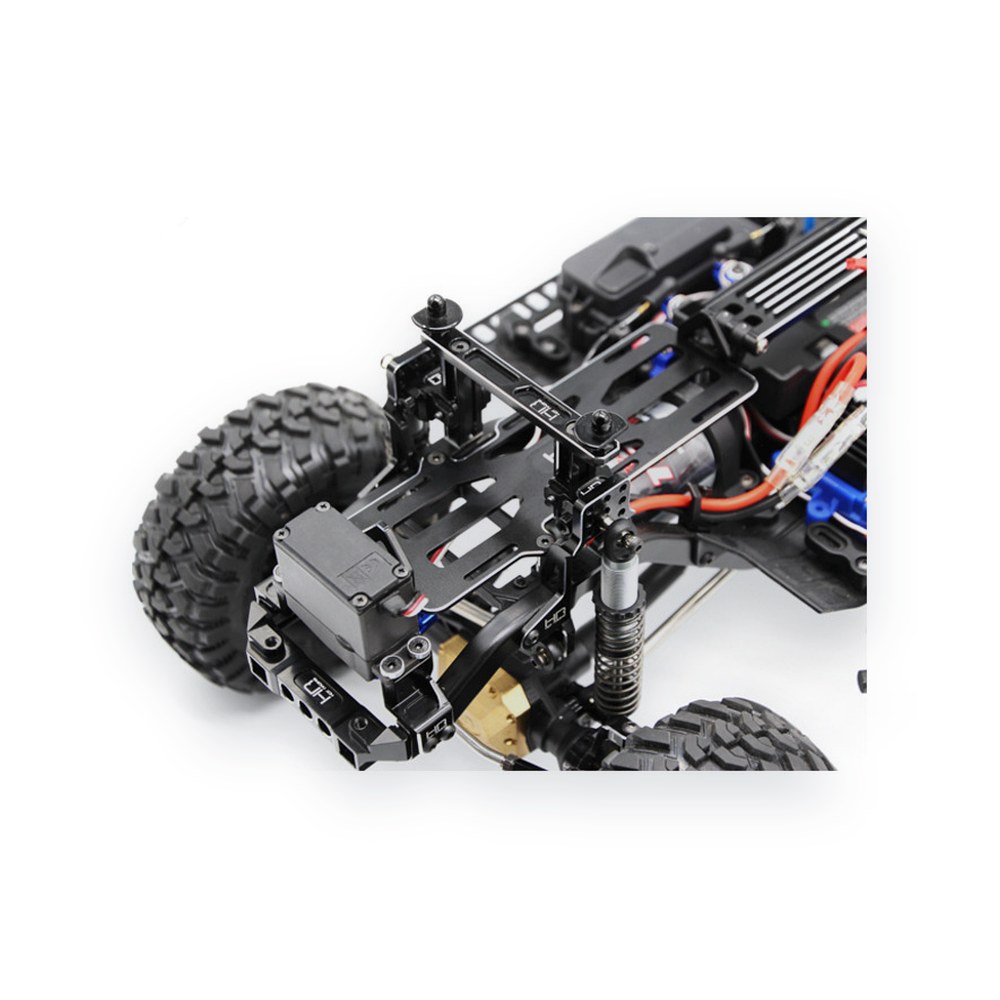

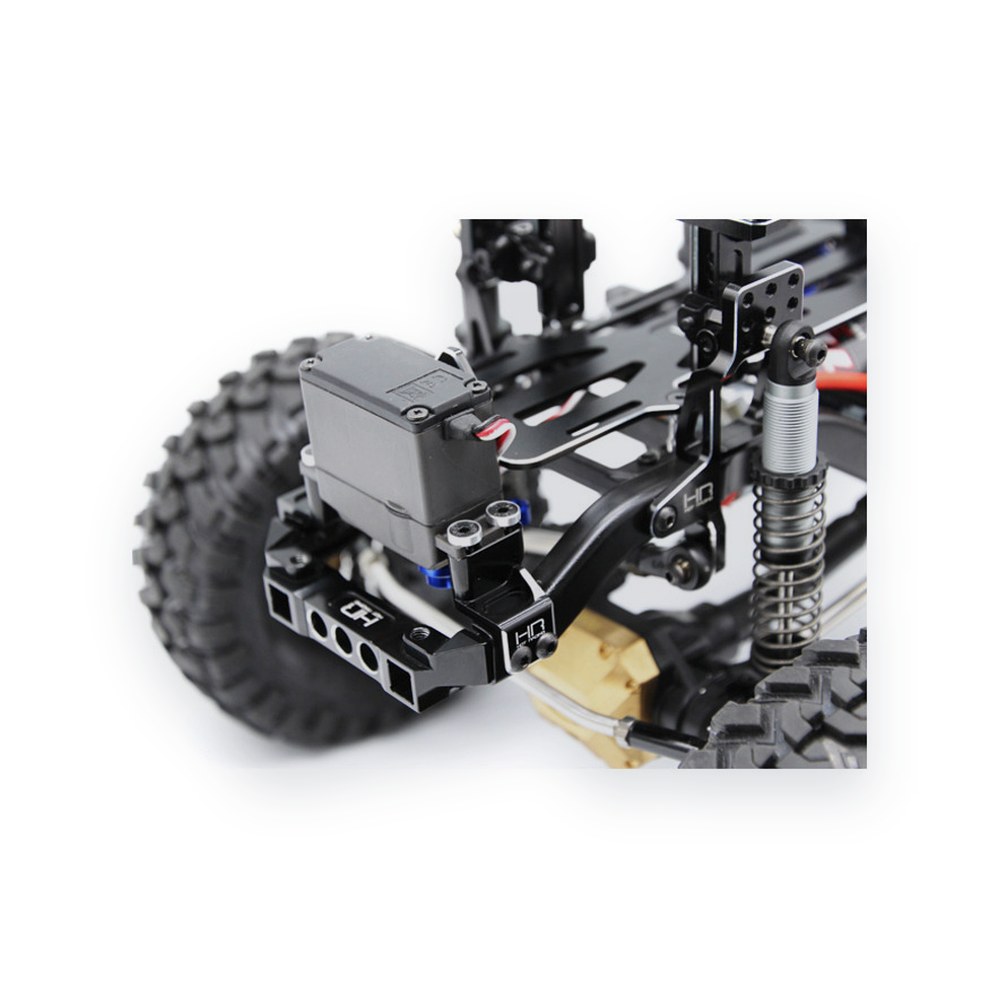

Hot Racing TRX-4 Forward Mounted Battery and Servo Kit

About this part

Hot Racing forward-biased steering servo and battery mount kit for the TRA TRX-4. Moving the servo and battery forward puts more weight over the front tires, which helps climbing traction and stability.

Features

• Shifts weight forward to improve climbing traction and reduce rollover risk
• CNC machined aluminum components, black anodized
• Aluminum servo mounts
• Aluminum body post mounts that replace the existing body post mount
• Aluminum battery tray
• The stock battery tray is kept, so it can still be used when needed
• Accepts most standard NiMH and LiPo packs (see comments)

You will receive

• Left and right aluminum servo mounts
• Left and right aluminum body post mounts
• One (1) battery tray
• Two (2) hook and loop battery straps
• Installation hardware

Requirements

• Installation
• Medium threadlocker (blue) for screws

Specifications

• Total kit weight: 63g
• Max battery width: 42.5mm
• Distance between battery stops: 135mm
• Distance without both battery stops: 150mm

Comments

• Supports batteries up to 135mm long with both battery stops installed. Longer batteries, and many LiPo packs, fit once the front or rear battery stop is removed.

Fits
