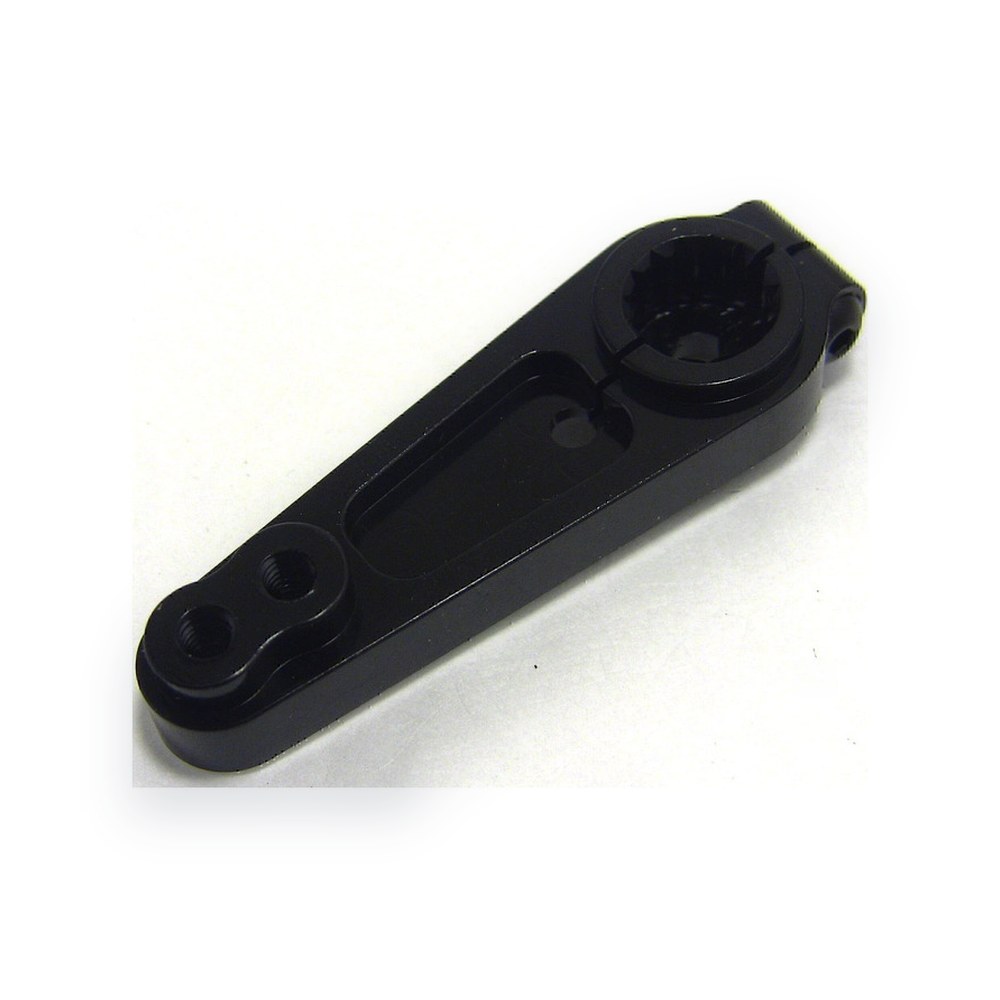

Hot Racing Large Scale Clamping Servo Arm, 15T

About this part

Hot Racing aluminum servo arm with a large 15 tooth spline, designed for Hitec servos. It suits the 1/5 scale HPI Baja 5B and 5T, the Losi 5T and DBL, and most other 1/5 vehicles.

Features

• CNC machined aluminum
• Anodized black
• Chamfered edges, finished in a secondary machining step
• Laser engraved lettering

Includes

• One large 15 spline servo horn
• One M2.5x8mm socket head cap screw for the clamp
• REQUIRES:
• Installation
• Medium threadlock on the clamping screw

Specifications

• Spline: large 15T
• Overall length: 43.5mm
• Center to end: 35mm
• Center to outside hole: 31mm
• Center to inside hole: 26mm
• Width: 13.5mm
• Body thickness: 5mm
• Drag link mount thickness: 7.5mm
• Drag link mounting holes: M3
• FITS:
• HPI Nitro Baja 5B
• HPI Nitro Baja 5T Truck
• Losi 1:5 5ive-T
• Losi 1:5 Desert Buggy XL
• Losi 1:5 5ive-R Rally
• Losi 1:5 Monster Truck XL
