Hot Racing Arrma 1:10, High Performance Cv Long Driveshafts, Front or Rear

About this part

Hot Racing heavy duty upgrade CV long driveshaft kit with splined star drive, for Arrma 1/10 4S 4X4 vehicles. Fits front or rear. See the comments below for fit details.

Features

• Replaces the stock diff outdrives and factory plastic drive axles
• CNC machined, hardened S2 spring steel wheel axle stubs
• CNC machined, hardened #45 steel outdrives, drive hubs and slider spline
• Hard anodized black aluminum 80mm slider
• Red anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Rubber dust boot keeps lubrication in and protects the slider from the elements
• IN THE BOX:

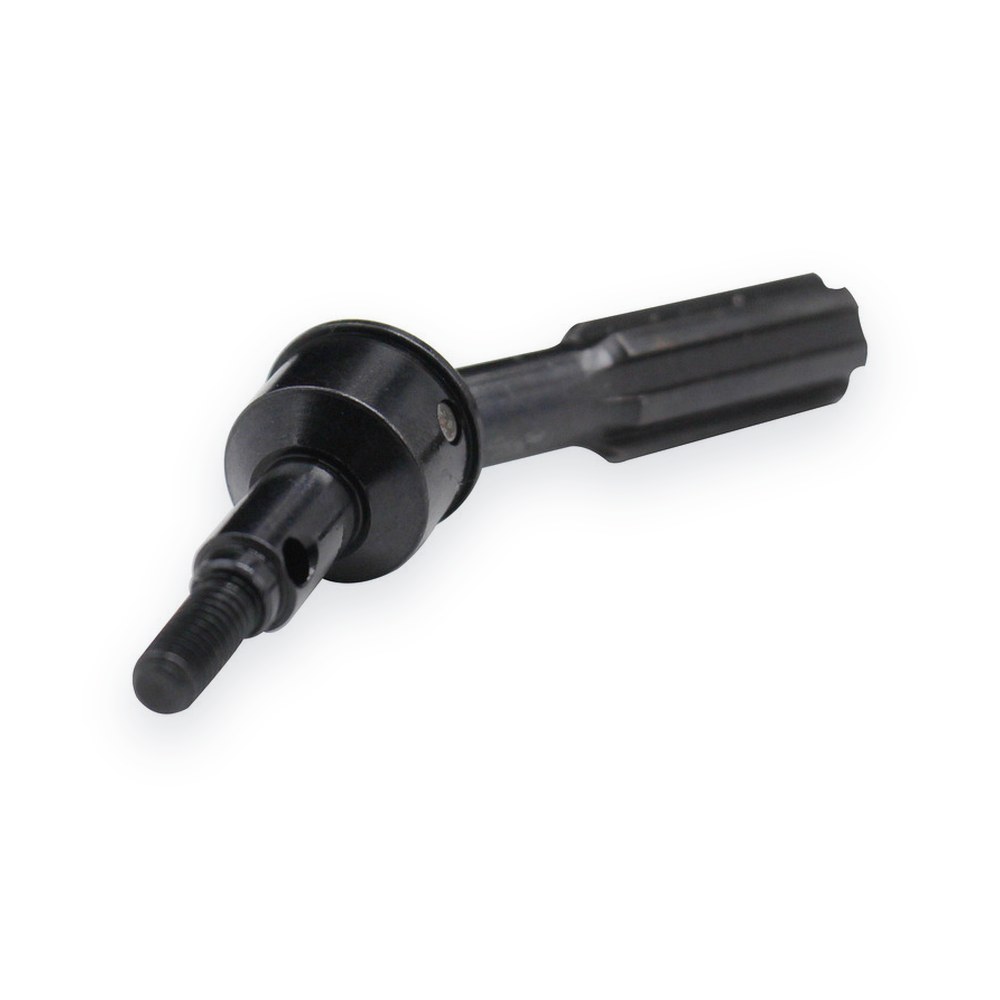

• Two (2) CVD shaft assemblies

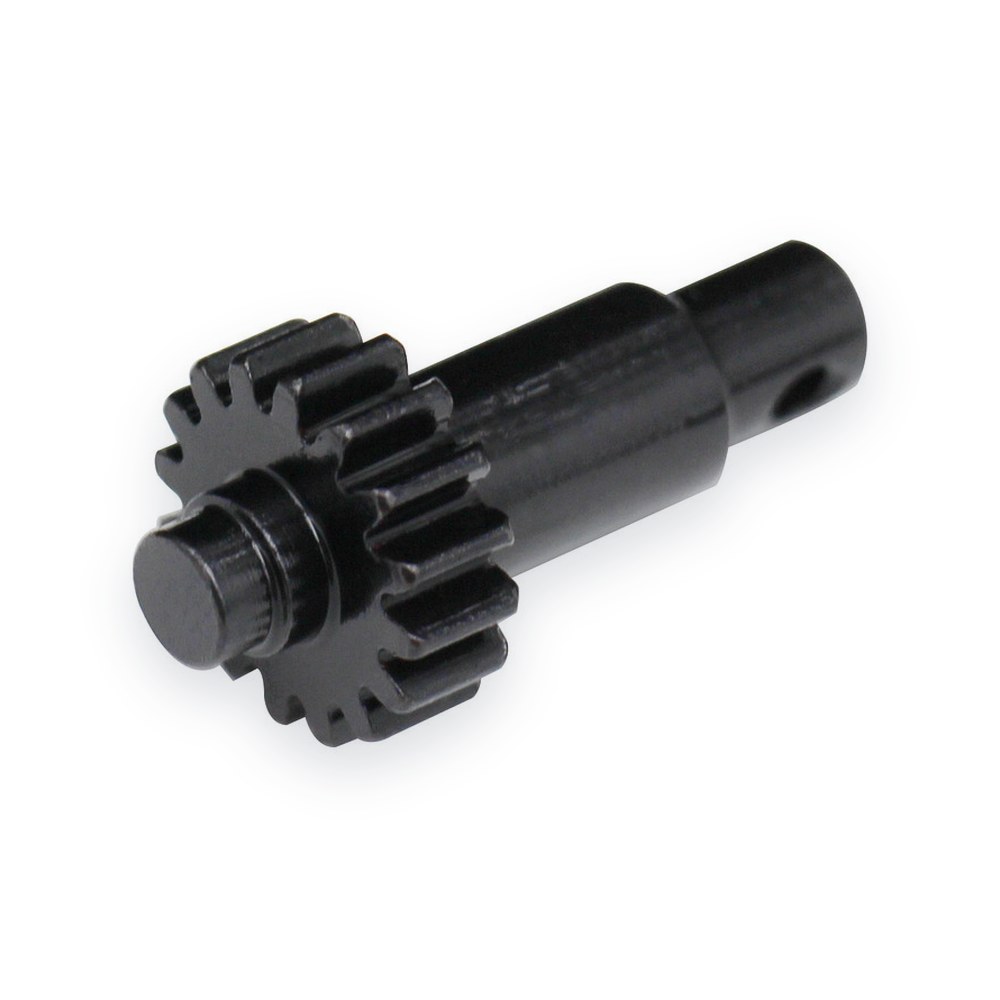

• Two (2) CNC steel output diff gears
• Two (2) M4x2.5x11mm screw shafts

Requirements

• Installation
• Removable thread lock (blue) on screws that thread into metal
• Light grease on the CV joints and slider splines helps them last longer

Specifications

• Approximate collapsed overall length: 148mm

Notes

• Replaces stock Arrma AR310775 diff outdrives, plus AR310887 front shafts or AR310888 rear shafts.
• Known to fit these Arrma vehicles. You can find the vehicle part number on Arrma's website, in the literature that came with the vehicle, or on the box near the barcode.
• Kraton 4X4 4S BLX

Fits

Replaces stock part
