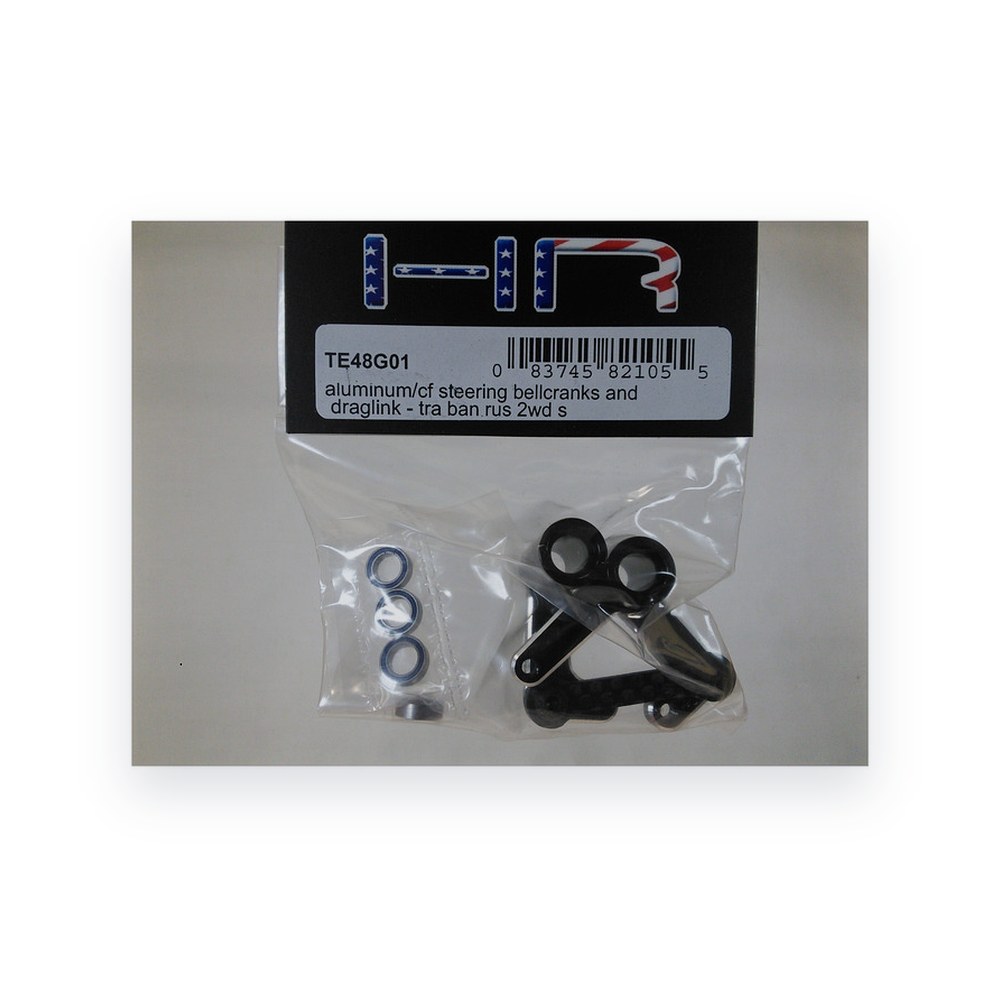

Hot Racing TRA Bandit Rustler 2WD Slash Aluminum/CF Steering Bellcranks and Draglink

About this part

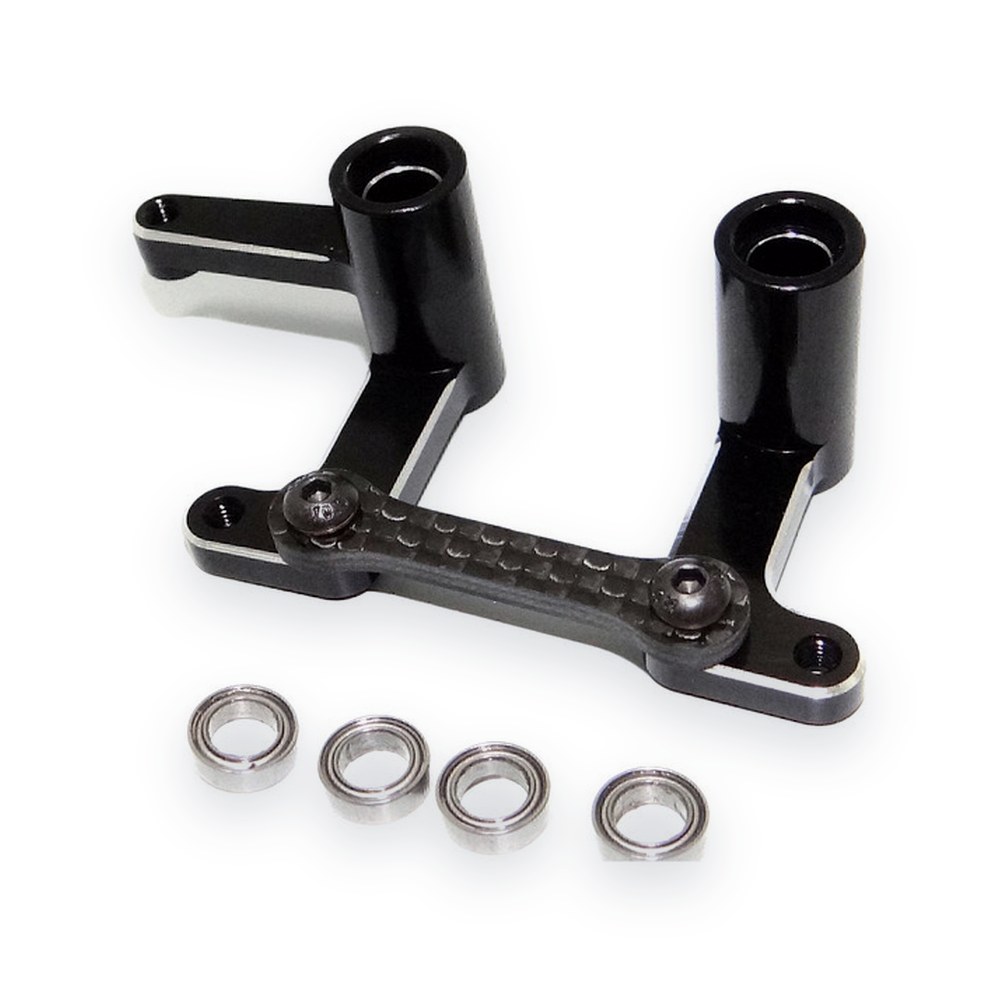

Hot Racing aluminum steering bellcranks and a carbon fiber draglink for Traxxas Bandit, Rustler, 2WD Slash, and similar vehicles.

Features

• CNC machined 6061 aluminum bellcranks, black anodized with chamfered edges
• 2.5mm carbon fiber draglink with brass bushings
• Ball bearings for smooth, consistent bellcrank action
• INCLUDED:
• One (1) right aluminum bellcrank
• One (1) left aluminum bellcrank
• One (1) carbon fiber draglink
• Four (4) 5x8x2.5mm ball bearings
• Two (2) brass bushings
• Two (2) M3x8mm button head cap screws

Requirements

• Use a removable threadlock on screws that thread into the aluminum bellcranks.
• BRASS BUSHING

Dimensions

• Inner diameter: 3mm
• Outer diameter: 4.5mm
• Total length: 3.5mm
• Flange OD: 7mm
• Flange thickness: 0.5mm
• Replaces the Traxxas plastic 3743 steering bellcranks and draglink.
• FITS:
• Traxxas Rustler 2WD EHD
• Traxxas Bandit Electric
• Traxxas Drag Slash
• Traxxas Rustler 2WD
• Traxxas Slash 2WD, all versions
• Traxxas Slash 2WD EHD
