Hot Racing TRX272R Clip-On Motor Heat Sink with Aluminum Base Fan, Blue

About this part

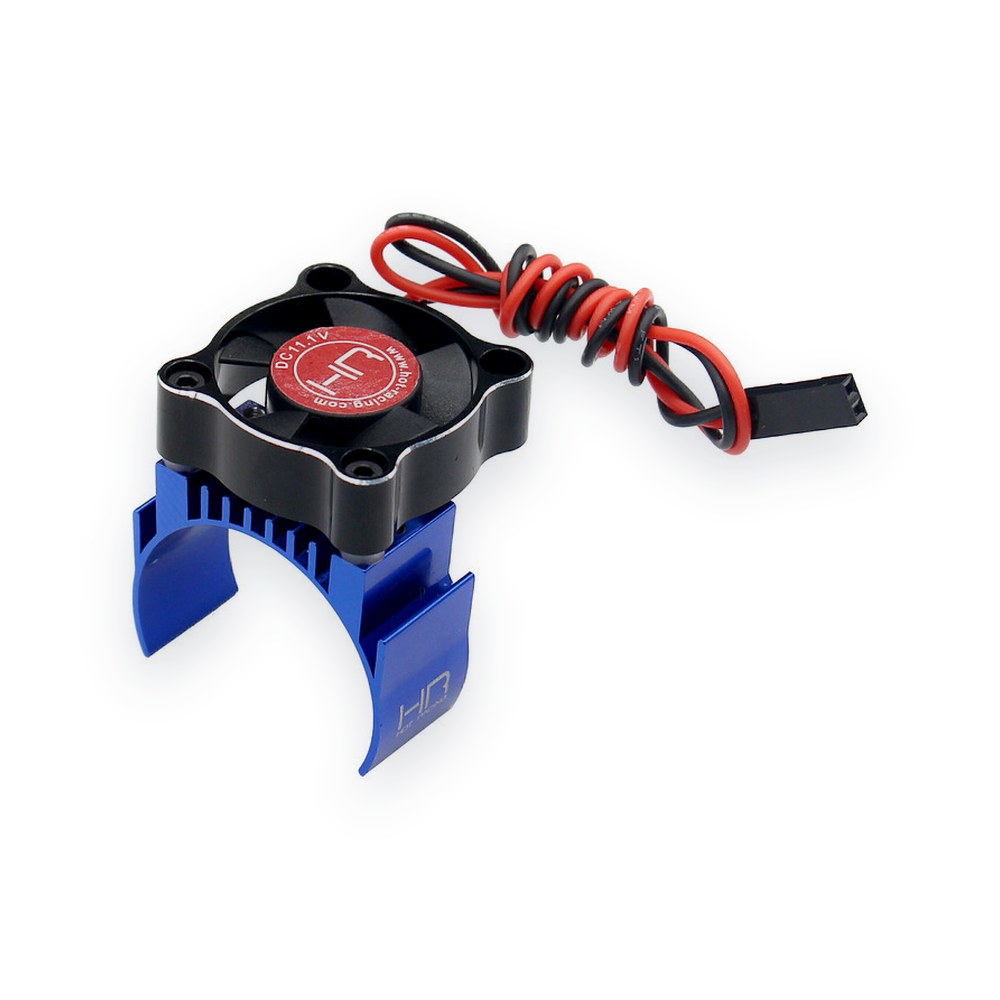

Universal clip-on motor heat sink with an aluminum base fan, in blue. It is made for 540 and 550 size motors with a 36mm can diameter and is designed to fit the TRA Pro Series Magnum 272R 2WD transmission. It keeps the motor running cooler.

Features

• Aluminum construction, including the fan base
• One-piece heat sink clip for a secure, LCG-friendly fit
• Blue and black anodized
• Laser etched Hot Racing insignia
• INCLUDED:
• One heat sink with aluminum cooling fan

Requirements

• Installation. Some units need assembly with a 1.5mm and 2mm hex wrench
• Electrical hookup with a 7.2-11.1V max DC power source
• The plug requires soldering or connection to a receiver port plug

Specifications

• Overall height: 39mm (1.54 in)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-11.1V max

Notes

• The replacement 30x30x7.5mm cooling fan is a Hot Racing part
• FITS:

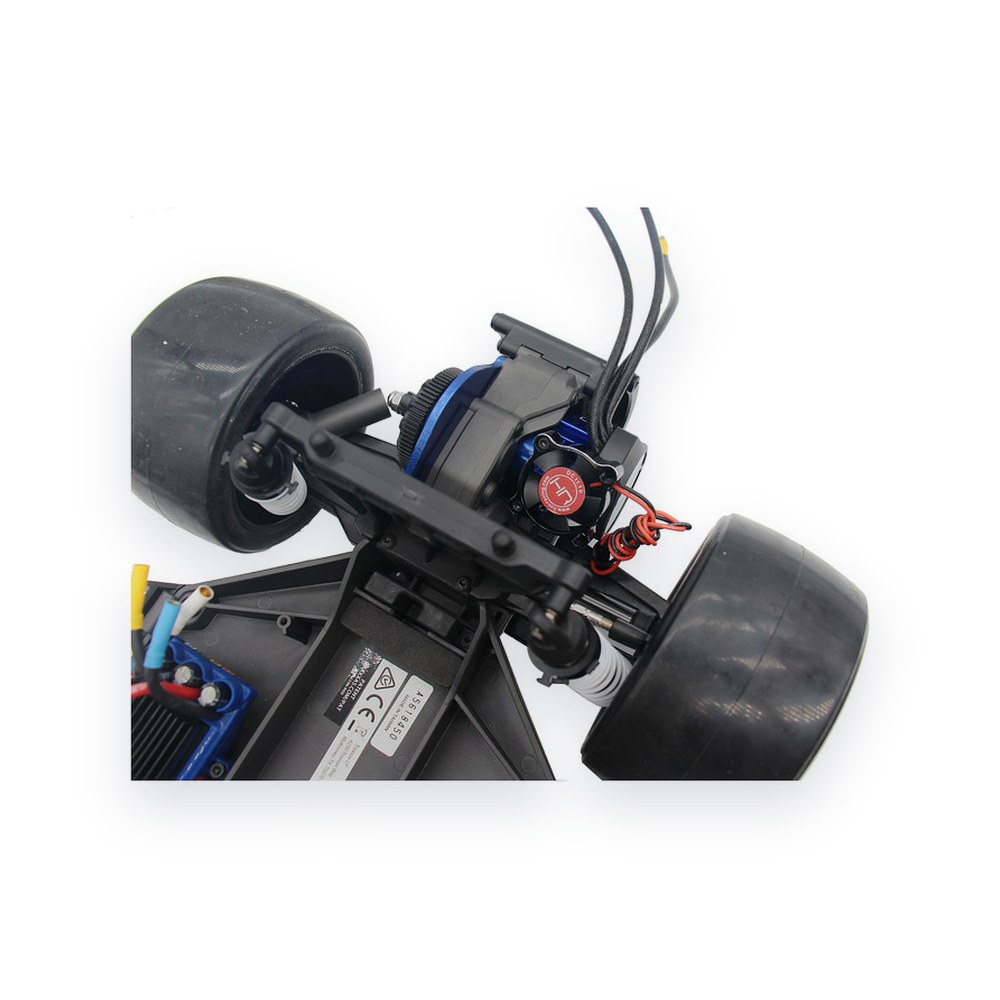

• Traxxas Bandit Electric, Drag Slash, Rustler 2WD, Slash 2WD all versions, Stampede 2WD

Fits
