About this part

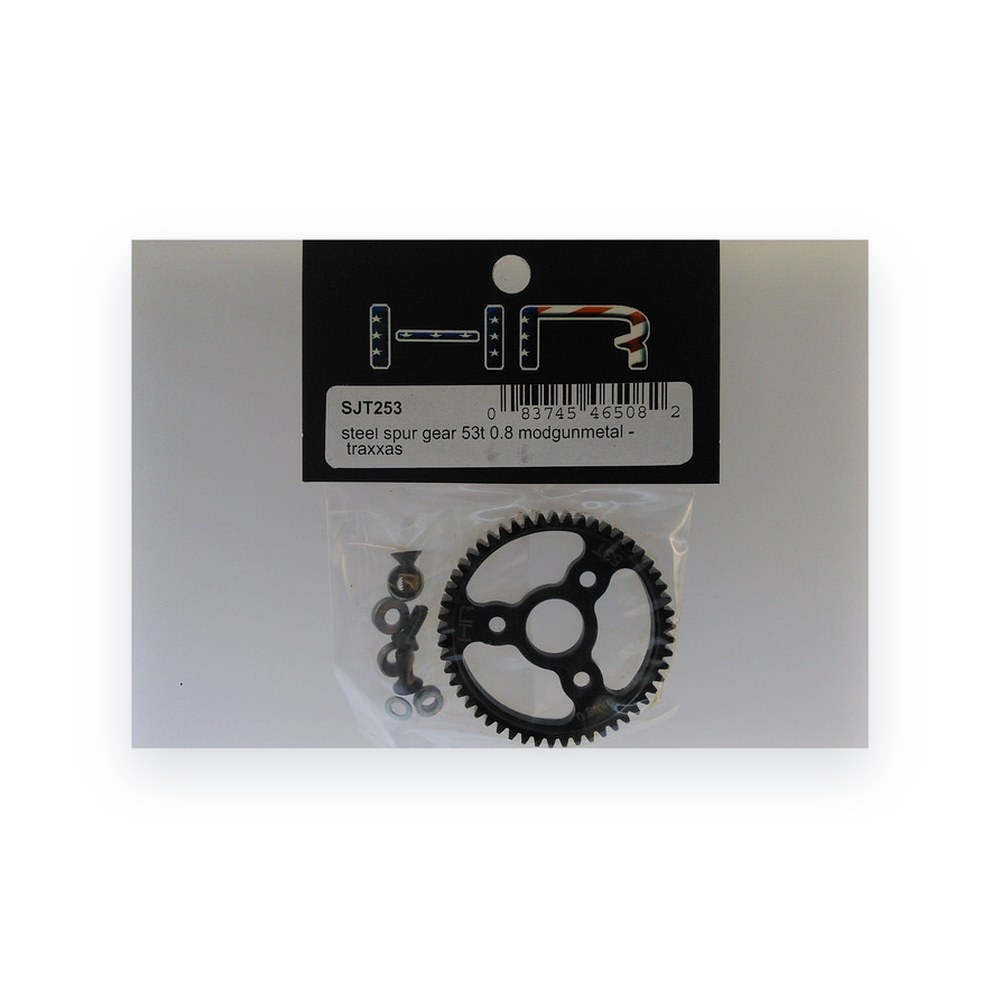

Hot Racing 53 tooth, 32 pitch (0.8 mod) steel spur gear in gunmetal. It is made for the 1/10 TRA E-Revo, Jato 3.3, T-Maxx 3.3, T-Maxx 2.5R, Summit, Rally VXL, Slash 4X4, and Stampede 4X4.
Features
- CNC machined and lightened hardened steel
- Black oxide coating for durability and corrosion resistance
- Red anodized countersunk washers
Includes
- One 53 tooth 32 pitch (0.8 mod) spur gear
- Three mounting screws
- Three red anodized countersunk washers
- Three washers, to place under the countersunk washers if the screw ends stick through the spur mounting plate
Specifications
- Teeth: 53
- Pitch: 32 (0.8 module)
- Mounting holes: 3
- Tooth face width: 6mm (0.24 inch)
- Inside diameter: about 11mm (about 0.43 inch)
- REQUIRES:
- A hardened clutch bell or pinion gear
- A slipper transmission. This gear will NOT work with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles with a center gear differential.
- FITS:
- Traxxas E-Revo 5603 5605 5608
- Traxxas Hoss 3S
- Traxxas Jato 2.5 and Jato 3.3
- Traxxas LCG Slash 4x4 or Rally
- Traxxas Rustler 4x4
- Traxxas Rustler 4x4 EHD
