Hot Racing Aluminum Servo Arm, 23 Spline, 5 mm Offset

About this part

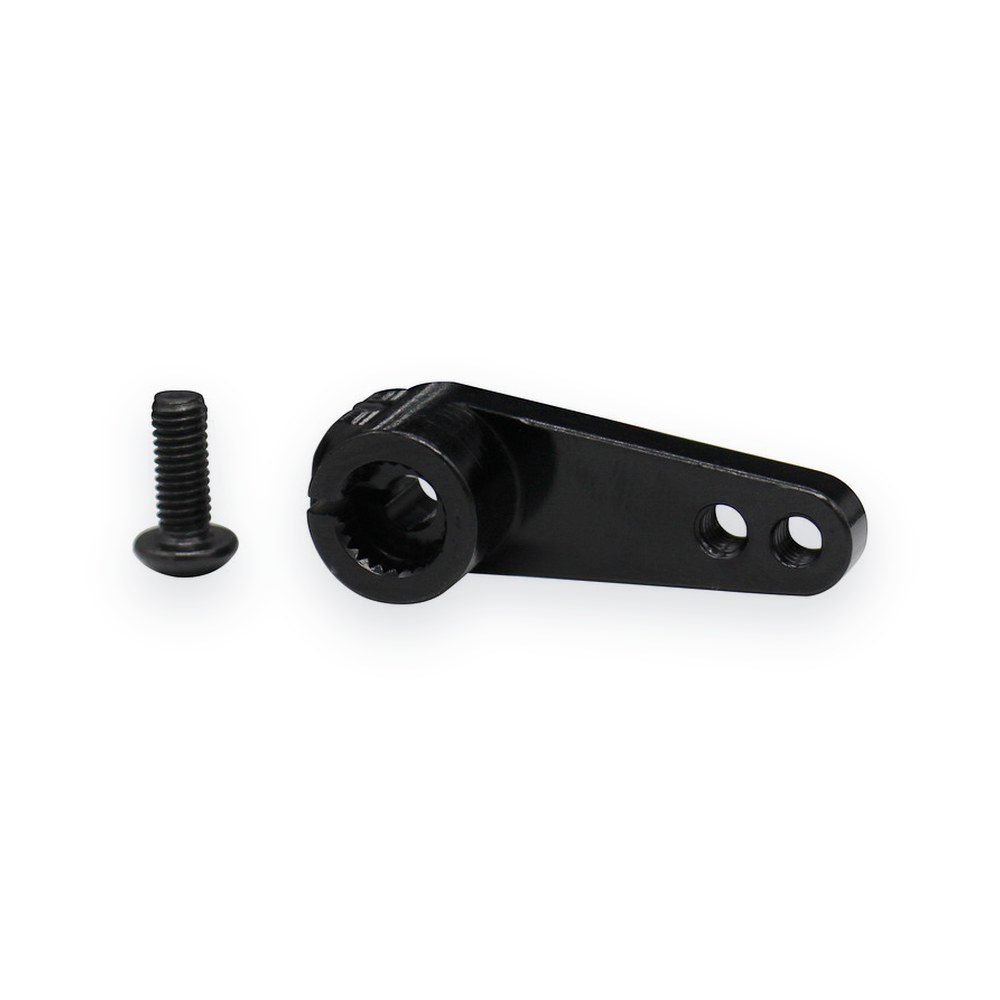

Hot Racing clamping servo horn for 23 spline JR, Airtronics, and KO servos. It is machined from 6061 aluminum and anodized black. The 5mm offset gives extra clearance, and the arm is strong and thick. It has two M3 drag link holes and a single clamp screw.

Features

• 23 tooth, for JR, Airtronics, and KO servos
• 6061 aluminum, anodized black
• Strong and thick arm
• Increased arm offset for better clearance
• Two M3 drag link mounting holes
• Single clamp screw

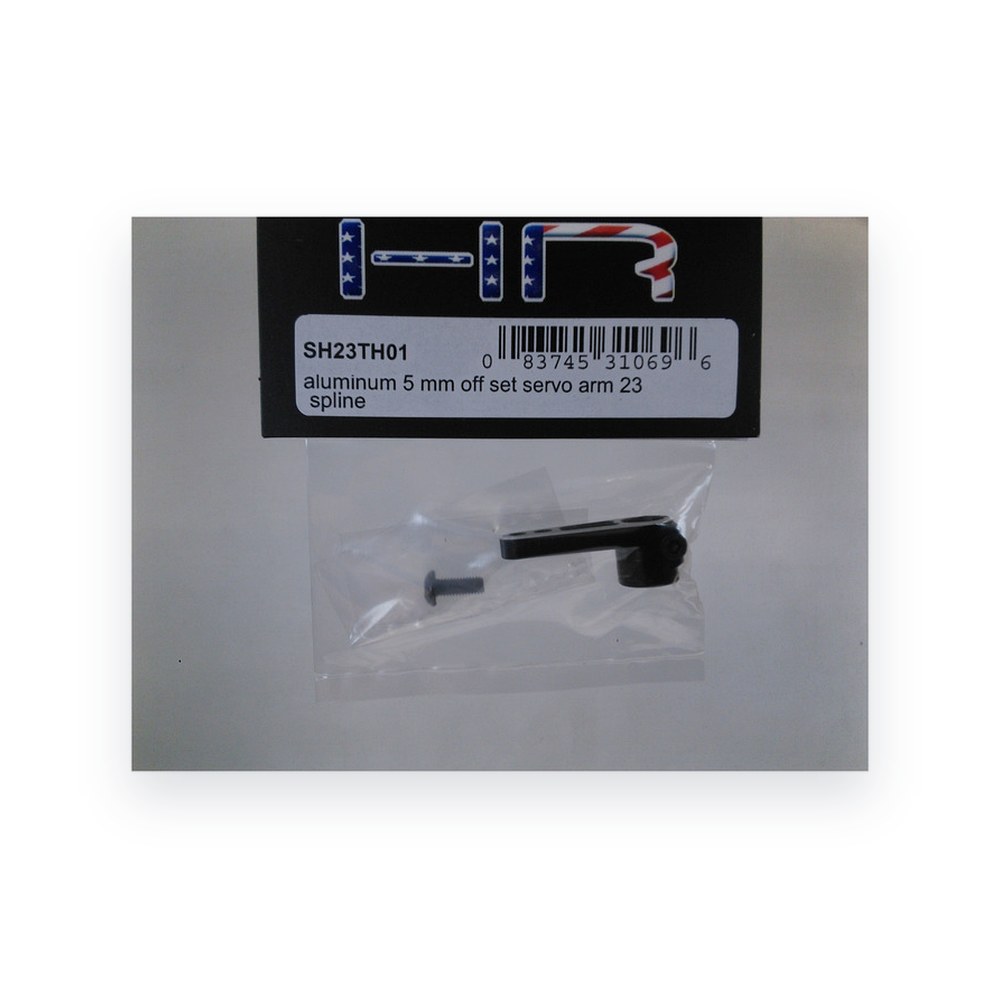

You will receive

• One 23 tooth servo horn
• One M2.5x5mm socket head cap screw for the clamp

Requirements

• 23 spline servo (JR, Airtronics, or KO)
• Servo screw
• Thread lock adhesive

Specifications

• Hole A distance: 16mm
• Hole B distance: 20mm
• Thickness: 10mm
• Offset: 5mm
• Material: 6061-T6 aluminum
• Spline: 23T
• Arm thickness: about 3.5mm, length about 28.5mm
• FITS:
• Tamiya Hummer
• Tamiya F-150/S-10
• Tamiya Hi-Lift F350, Tundra, HiLux
• HPI Electric Wheely King 1/12
• Axial AX-10 Scorpion Crawler
• Tamiya CR-01 Crawler FJ40
