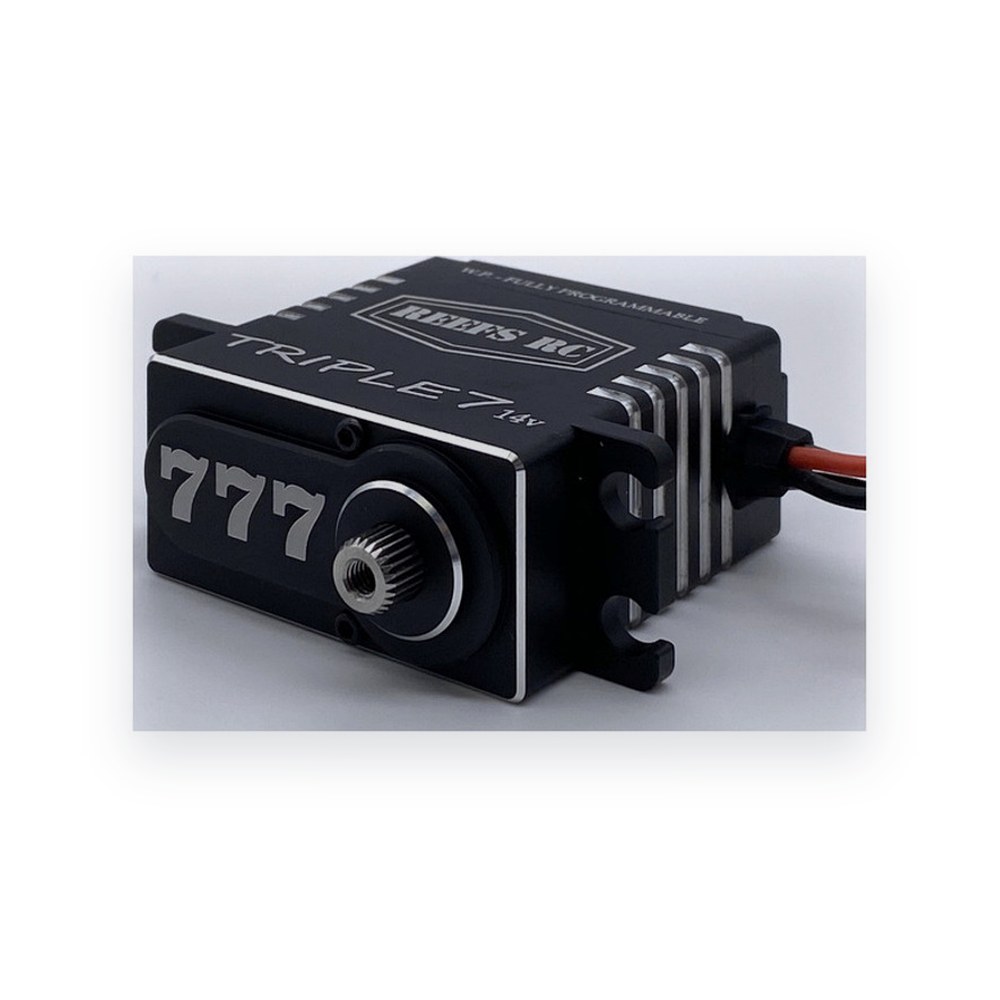

Reefs RC Programmable Servo, Triple7, 14V

About this part

A fully programmable 14V servo built on the REEFS patented CNC case. The REEFS USB Link (sold separately) and REEFS software give full parameter control, including output power, servo angle, sensitivity, and inversion.

Features

• Submarine waterproof with seven-point seals
• Magnetic angle sensor
• Pulse width modulation control
• Fully programmable with REEFS software (REEFS Link required)

Specifications

• Voltage: 10V / 14V
• Internal: steel gears, all CNC aluminum casing
• Bearing type: three ball bearings
• Weight: 3.1 oz
• Dimensions (LWH): 1.57 x 78 x 1.63
• Torque: 666 oz at 11.1V / 700 oz at 12.0V / 777 oz at 14V
• Speed: 10sec at 11.1V / 0.09 sec at 12V / 0.08 sec at 14V
• FITS:
• HPI Nitro RS4 (belt, really old), HPI Nitro RS4 Super Nitro, HPI Electric RS4, HPI Electric Pro 2, HPI Nitro N. Racer 2 RS4 (belt), HPI Nitro N. Racer RS4 (belt)
