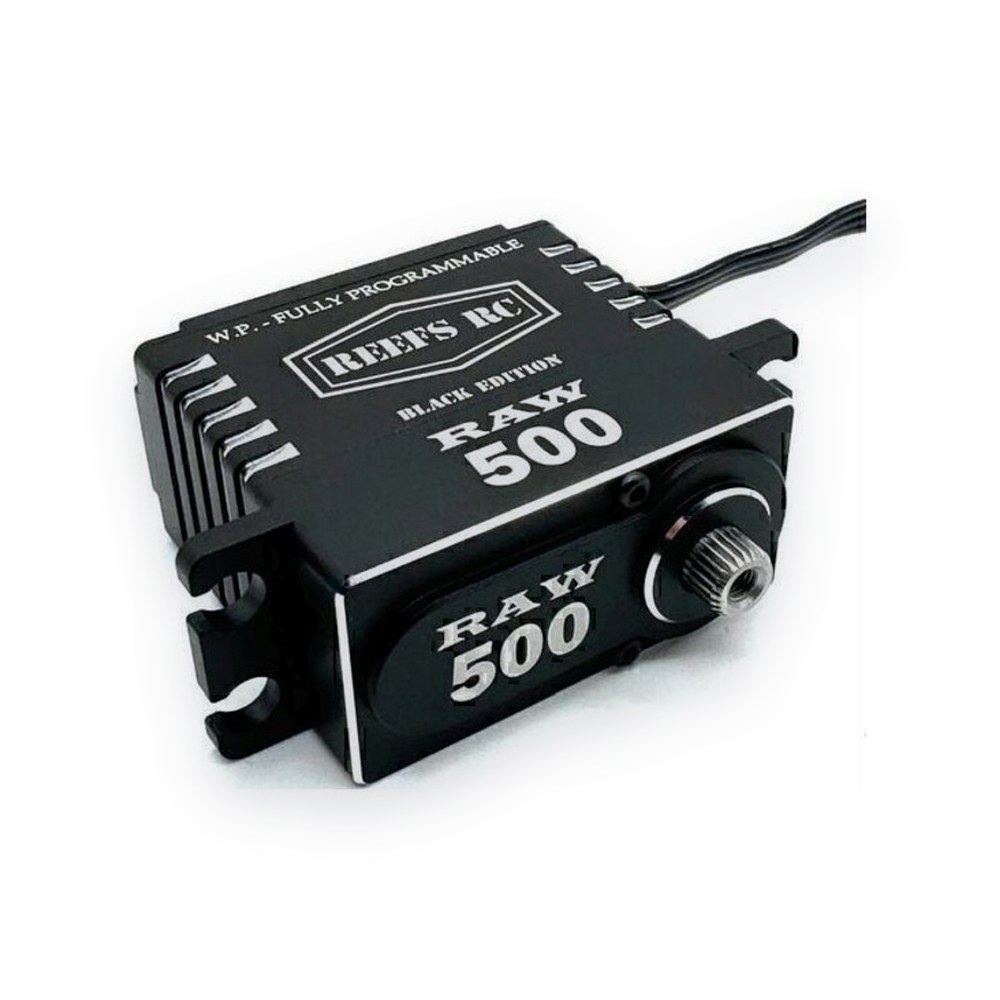

SEHREEFS178Reefs RC Raw 500 Servo, Black Edition, Programmable
Reefs RC Radio Accessories
$153.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part
The Raw 500 Black Edition is a high-torque, high-speed brushless programmable servo with military grade construction. A REEFS LINK is required for programming.
Features
- Submarine waterproof with 7 point seals
- Magnetic angle sensor
- Pulse width modulation control
Specifications
- Voltage: 4.8V and 8.4V
- Internal: steel gears, all CNC aluminum casing
- Bearings: 2 ball bearings
- Weight: 2.75oz
- Dimensions (LWH): 1.57 x .79 x 1.5
- Torque: 450oz @ 6v / 500oz @ 7.4v / 565oz @ 8.4v
- Speed: .11sec @ 6v / .095sec @ 7.4v / .08sec @ 8.4v
- Spline: 25T
- Dead band width: 2s
- BEC not required, recommended for max performance
