Hot Racing Scx10 Ii Heavy Duty Steel Scale Look U-Joints Shafts, (2speed)

About this part

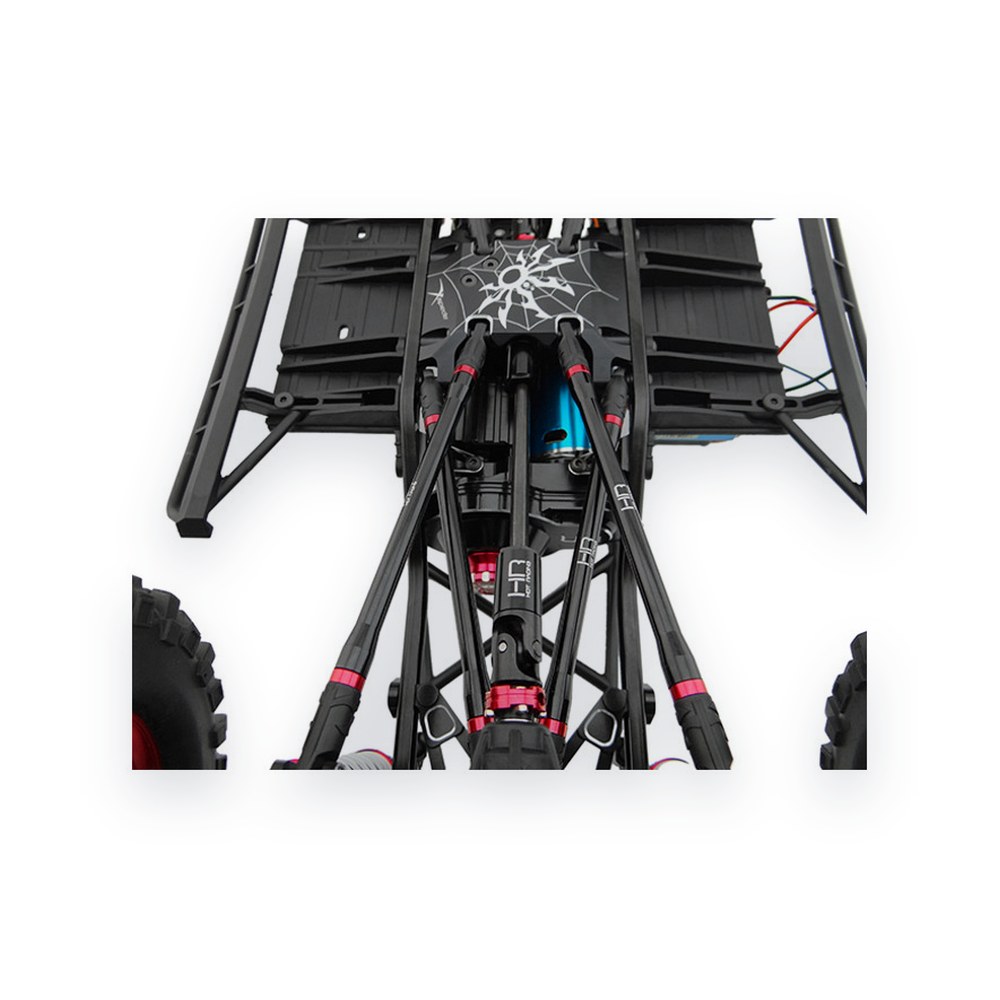

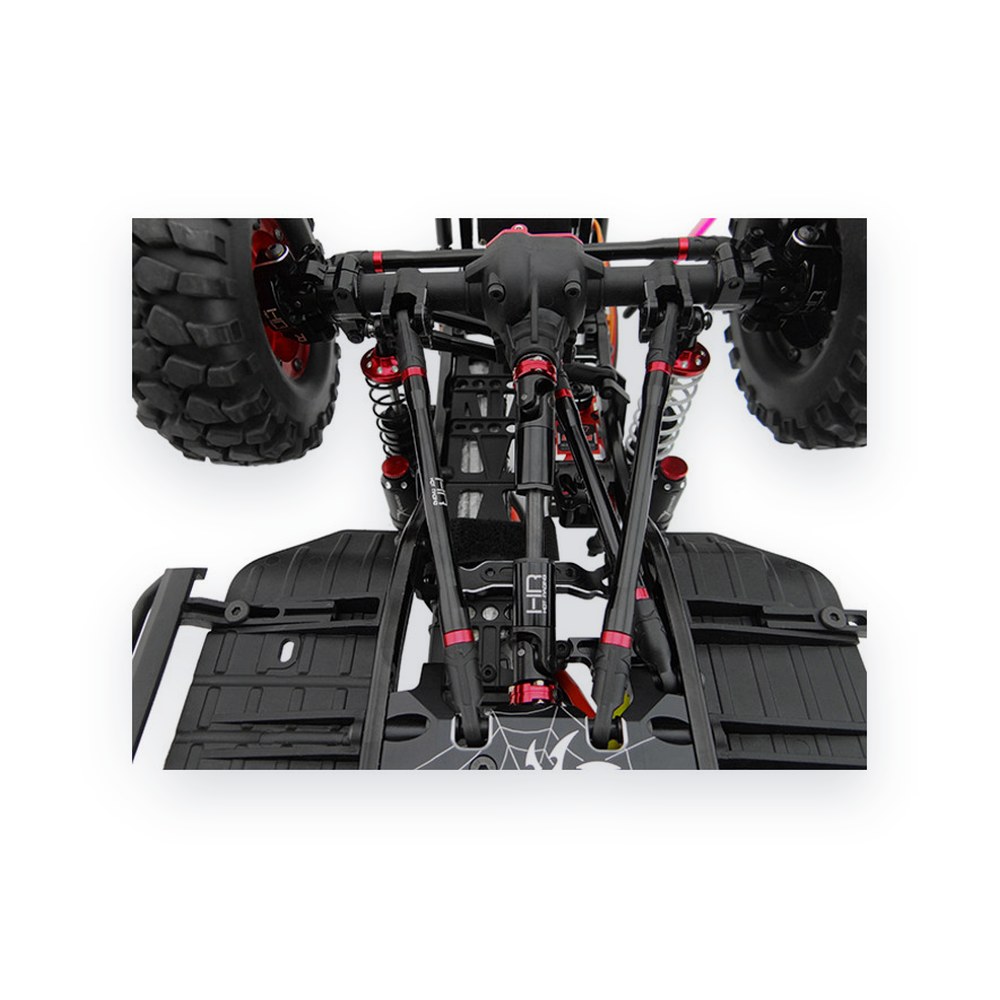

Hot Racing heavy duty hardened carbon steel front and rear telescoping driveshafts with a scale look for the Axial SCX10 II kit (not RTR). The shafts are CNC machined, and 6061 aluminum screw-on sleeves hold the steel telescoping pins. A red anodized aluminum cross pin ring adds to the scale appearance. They replace the factory plastic driveshafts.

Features

• Heavy duty CNC machined hardened carbon steel
• 6061 aluminum screw-on sleeves capture the steel telescoping pins
• Red anodized aluminum cross pin ring for a scale look
• Replaces the factory plastic front and rear driveshafts
• INCLUDED:
• One (1) front steel driveshaft with universal joints
• One (1) rear steel driveshaft with universal joints

Requirements

• Installation, see the vehicle manual
• SCX10 II kit (not RTR) with a two speed capable transmission
• Use medium threadlocker on the screw shafts
• Keep the telescoping assembly greased

Specifications

• Short shaft compressed length: 61.5mm joint to joint, 90mm overall
• Short shaft extended length: 84mm joint to joint, 112.5mm overall
• Short shaft travel: about 22mm
• Long shaft compressed length: 108mm joint to joint, 136.5mm overall
• Long shaft extended length: 130mm joint to joint, 158.5mm ov
