Hot Racing Scx Ii Kit, Heavy Duty Steel Drive Shafts with U-Joints

About this part

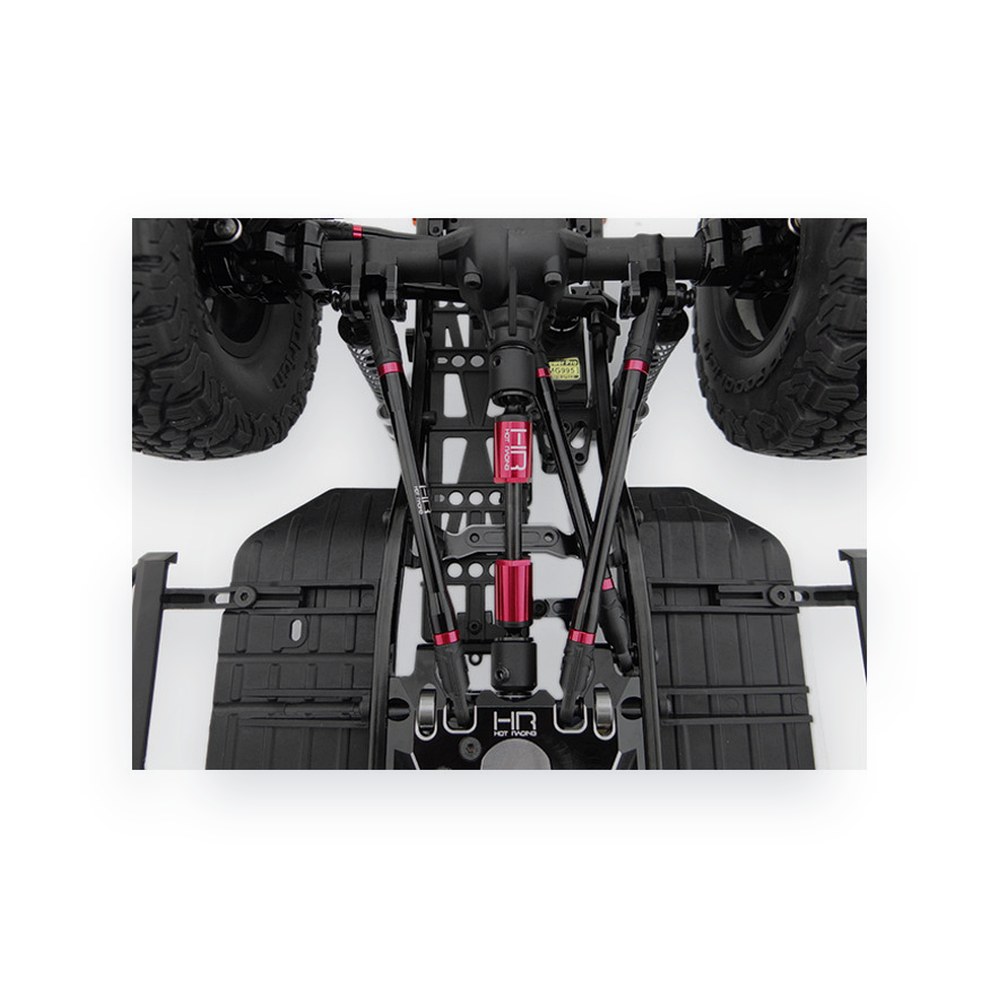

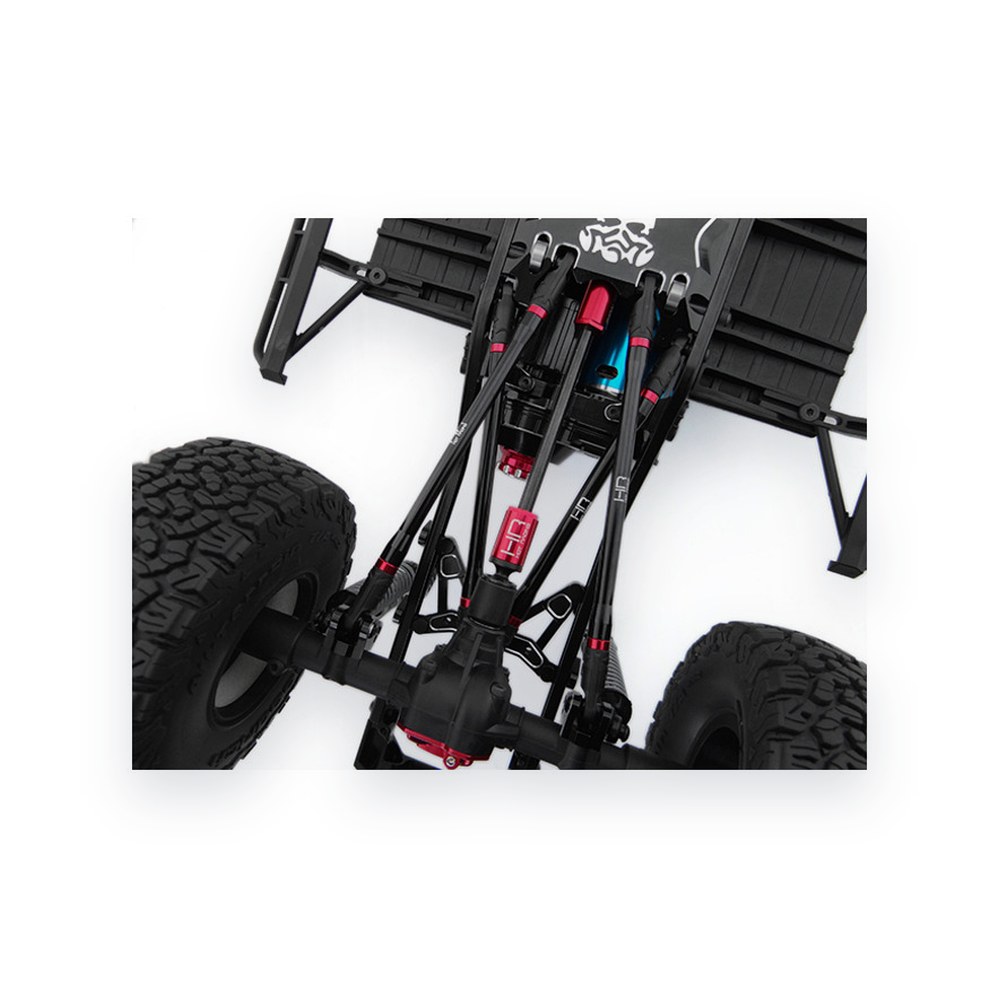

Hot Racing heavy duty hardened carbon steel front and rear telescoping driveshafts for the Axial SCX10 II kit (not RTR). The shafts are CNC machined, and 6061 aluminum screw-on sleeves hold the steel telescoping pins. They replace the factory plastic front and rear driveshafts.

Features

• Heavy duty CNC machined hardened carbon steel
• 6061 aluminum screw-on sleeves capture the steel telescoping pins
• Replaces the factory plastic front and rear driveshafts
• INCLUDED:
• One (1) front steel driveshaft
• One (1) rear steel driveshaft

Requirements

• SCX10 II kit (not RTR) with a two speed capable transmission
• Axial AXA0286 M4x2.5x13mm screw shafts are required
• Axial AX31148 W88 V2 joint 10x15mm
• Axial AX31028 2x11mm pin
• Axial AX31114, one part of the W88 V2 driveshaft
• Keep the telescoping assembly greased

Specifications

• Short shaft compressed length: 65.5mm joint to joint
• Short shaft extended length: 84.5mm joint to joint
• Short shaft travel: about 19mm
• Long shaft compressed length: 111mm joint to joint
• Long shaft extended length: 130mm joint to joint
• Long shaft travel: about 19mm
• Outside diameter: 11.5mm
• Shaft diameter: 5mm

Notes

• Does NOT work with vehicles equipped with the RTR transmission
