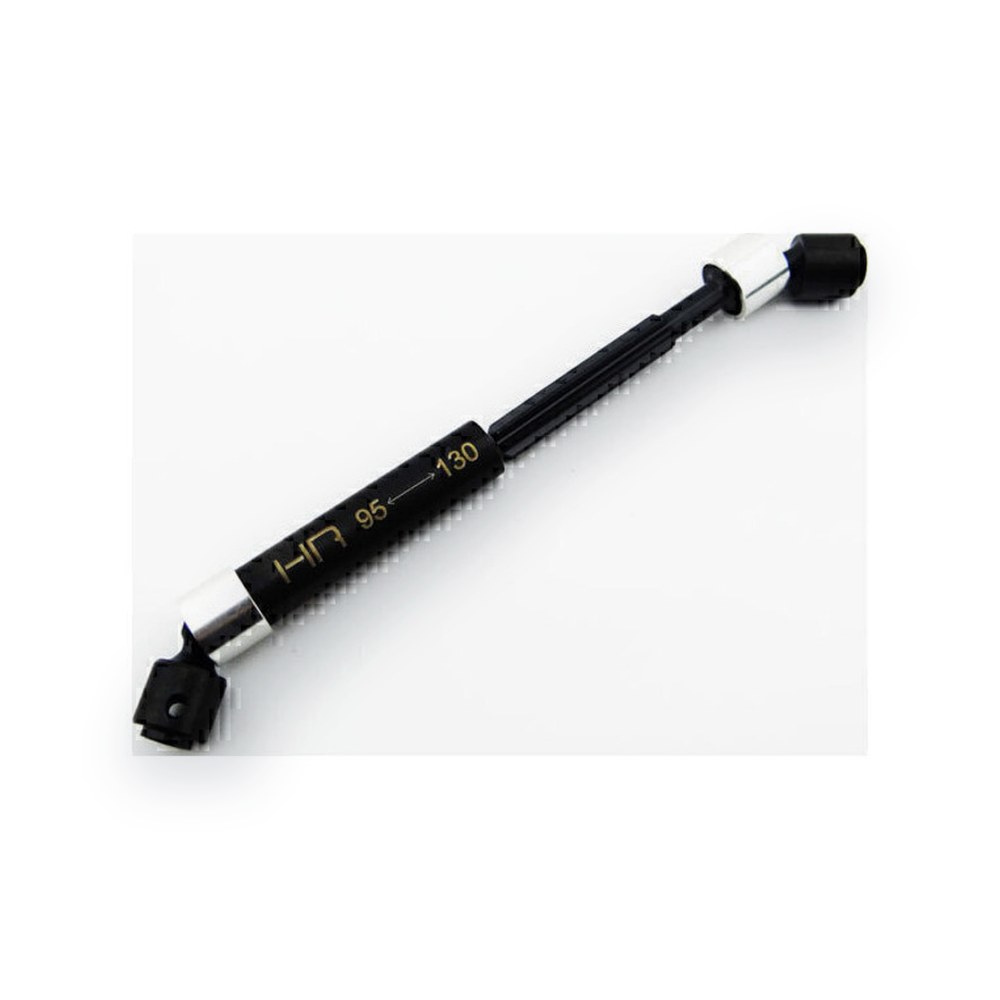

Hot Racing Steel Center Driveshaft, Short, 95-130mm

About this part

A short-length splined star drive shaft from Hot Racing, offered as an optional upgrade. It suits the Tamiya CR01 front, the stock Axial AX10, the Axial SCX10 front, and custom vehicles. Check the specifications below to confirm fitment.

Features

• Heavy-duty CNC machined hardened carbon steel
• Aluminum pin capture rings with rubber O-rings to stop movement
• Design eliminates the CV pin setscrew
• Compatible with 5mm output shafts
• Black finished steel
• INCLUDED:
• One (1) center CVD drive shaft assembly

Requirements

• Four M3 setscrews or two screw pins (for example, Axial AXA0175) to attach to the transmission and differentials
• Grease the CV joint and shaft spline to maintain them
• Use a removable-type locking adhesive on screws that thread into metal

Specifications

• Collapsed length end-to-end: 93mm
• Recommended operating length: 95-130mm end-to-end (85-120mm hub pin to hub pin)
• Recommended travel: 35mm
• Spline engagement at 130mm: 10mm
• Compatible with 5mm output shafts
• M3 threaded holes for vehicle attachment

Comments

• Fits the Tamiya CR01 front, stock Axial AX10, Axial SCX10 front, or a custom vehicle.
• Replacement parts from Hot Racing include RCV11DH (drive hub), RCV11P (CV re
