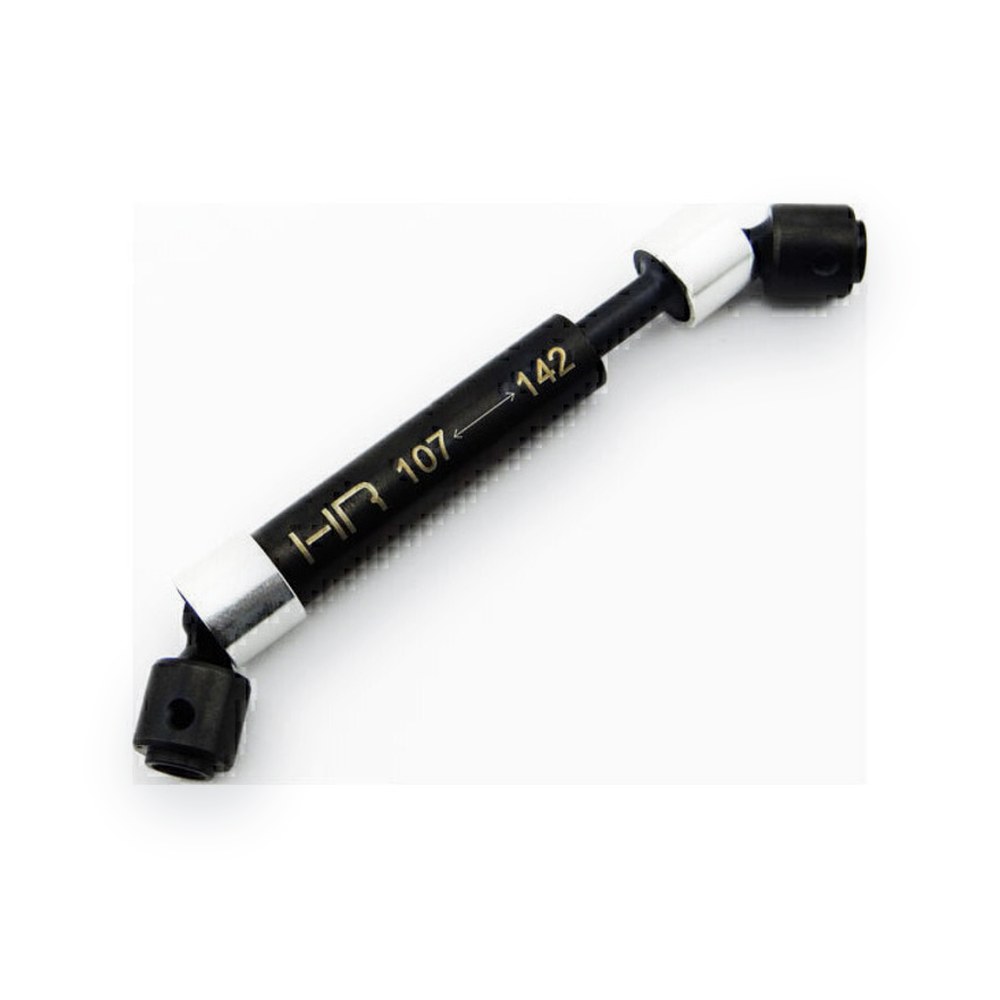

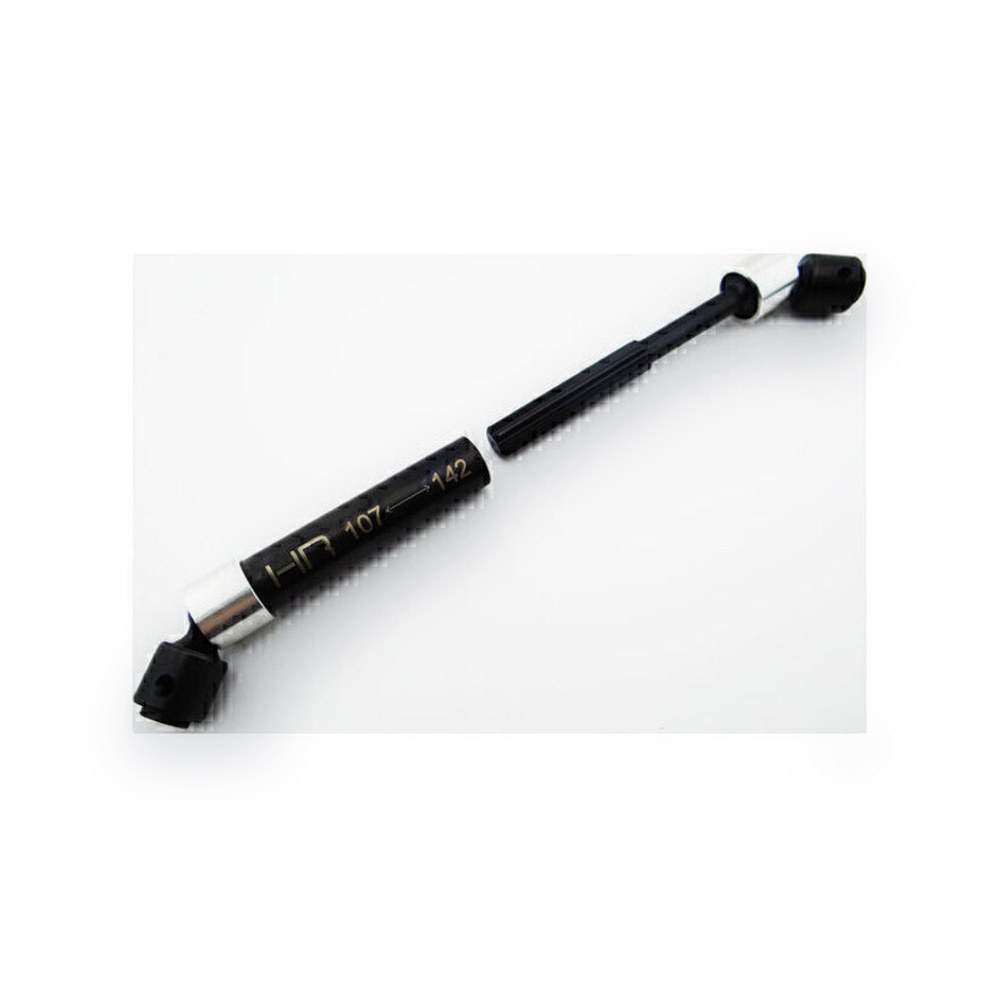

SCP37VMHot Racing Steel Center Driveshaft, Medium, 107-142mm
Hot Racing Drive-train: shafts and axles
$20.99
In stock
30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link
Whippy checked a few minutes ago:
it's in stock.
- Lock it in
About this part
A heavy-duty splined star drive shaft from Hot Racing, offered as an optional upgrade. It is made for the Axial AX10, Axial RR10 front, Axial SCX10, Axial Wraith, Tamiya CC01, Tamiya CR01 front, Red Cat Gen8, and custom vehicles. Check the specifications below to confirm fitment.
Features
- CNC machined from hardened carbon steel for heavy-duty use
- Aluminum pin capture rings with rubber O-rings to stop movement
- Design eliminates the CV pin setscrew
- Compatible with 5mm output shafts
- Black finished steel
- INCLUDED:
- One (1) center CVD drive shaft assembly
Requirements
- Four M3 setscrews or two screw pins (for example, Axial AXA0175) to attach to the transmission and differentials
- Grease the CV joint and shaft spline to maintain them
- Use a removable-type locking adhesive on screws that thread into metal
Specifications
- Collapsed length end-to-end: 104mm
- Recommended operating length: 107-142mm end-to-end (97-132mm hub pin to hub pin)
- Recommended travel: 35mm
- Spline engagement at 142mm: 7mm
- Compatible with 5mm output shafts
- M3 threaded holes for vehicle attachment
Comments
- Replacement parts from Hot Racing include RCV11MF (slider shaft), RCV11DH (drive hub), RCV11P (CV rebuild kit),
