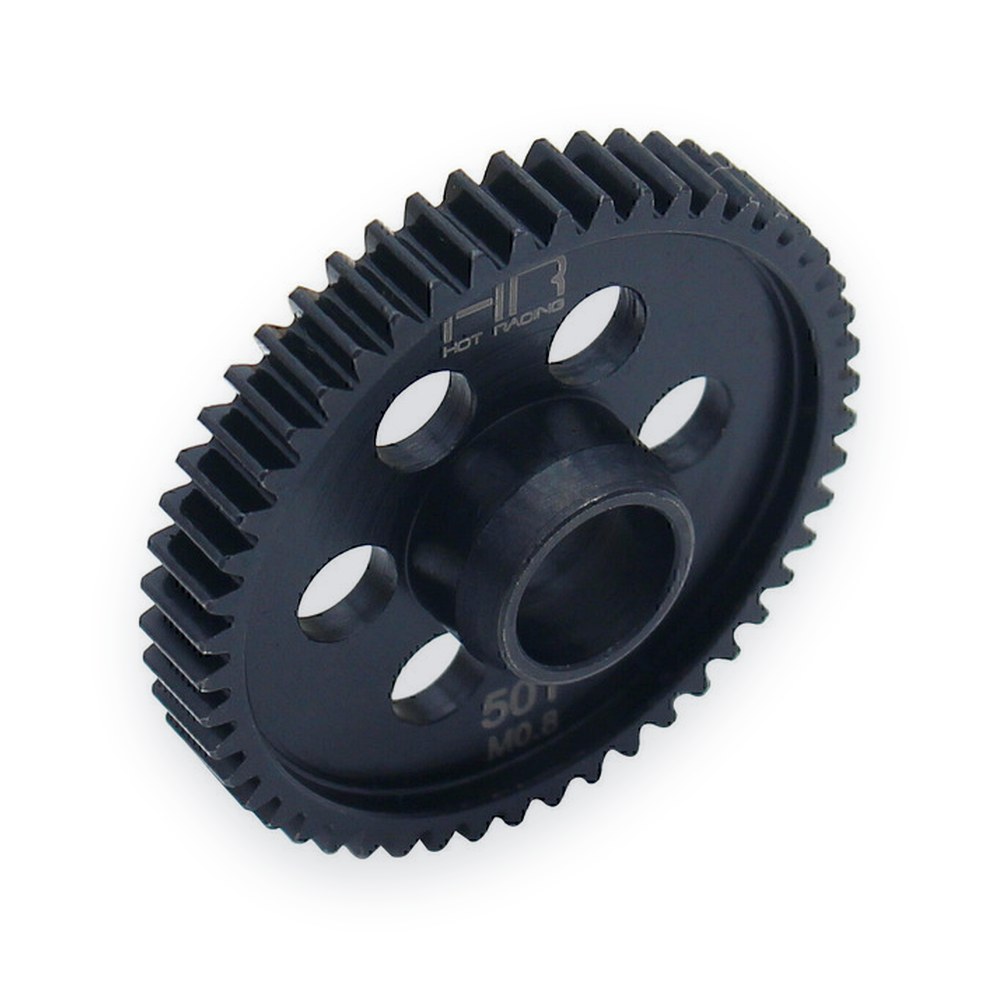

Hot Racing Vendetta Steel Spur Gear, 50T, Mod 0.8

About this part

Hot Racing 50-tooth steel spur gear at 0.8 module (32 pitch), built for 1/10 off-road and 1/8 all-road Arrma 4x4 vehicles. It is CNC machined from lightened, hardened steel with a black oxide finish. It replaces the factory plastic gear and runs with factory slipper pad 310994 or Hot Racing ATF15HN.

Specifications

• Number of teeth: 50
• Gear pitch: 32 pitch (0.8 module)

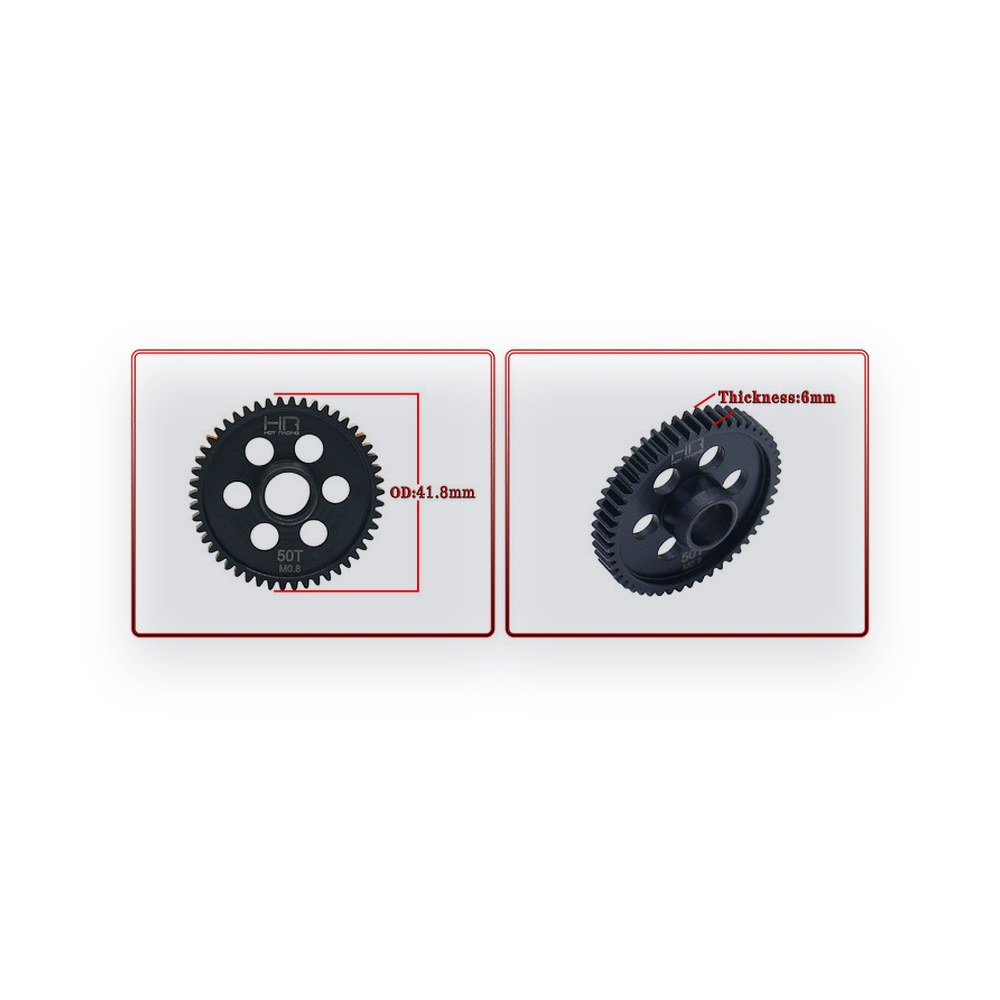

• Tooth face width: 0.24 in (6 mm)
• INCLUDED:
• One 50-tooth 0.8 module spur gear

Requirements

• Stock plastic center gear bushing, Arrma ARA311103
• Arrma 310994 slipper pad or Hot Racing ATF15HN

Notes

• Upgrade for the factory plastic ARA311103 50-tooth, 32 pitch gear. Known to fit ARA4215V3 (1/8 Infraction 4WD Mega Resto-Mod Truck RTR). Vehicle part numbers are listed on the manufacturer's website, in the vehicle literature, and on the box near the barcode. Vehicles marked optional may fit but may need modification.
• FITS:
• Arrma 1:8 Infraction Mega, Arrma 1:8 Vendetta 3S

Fits
