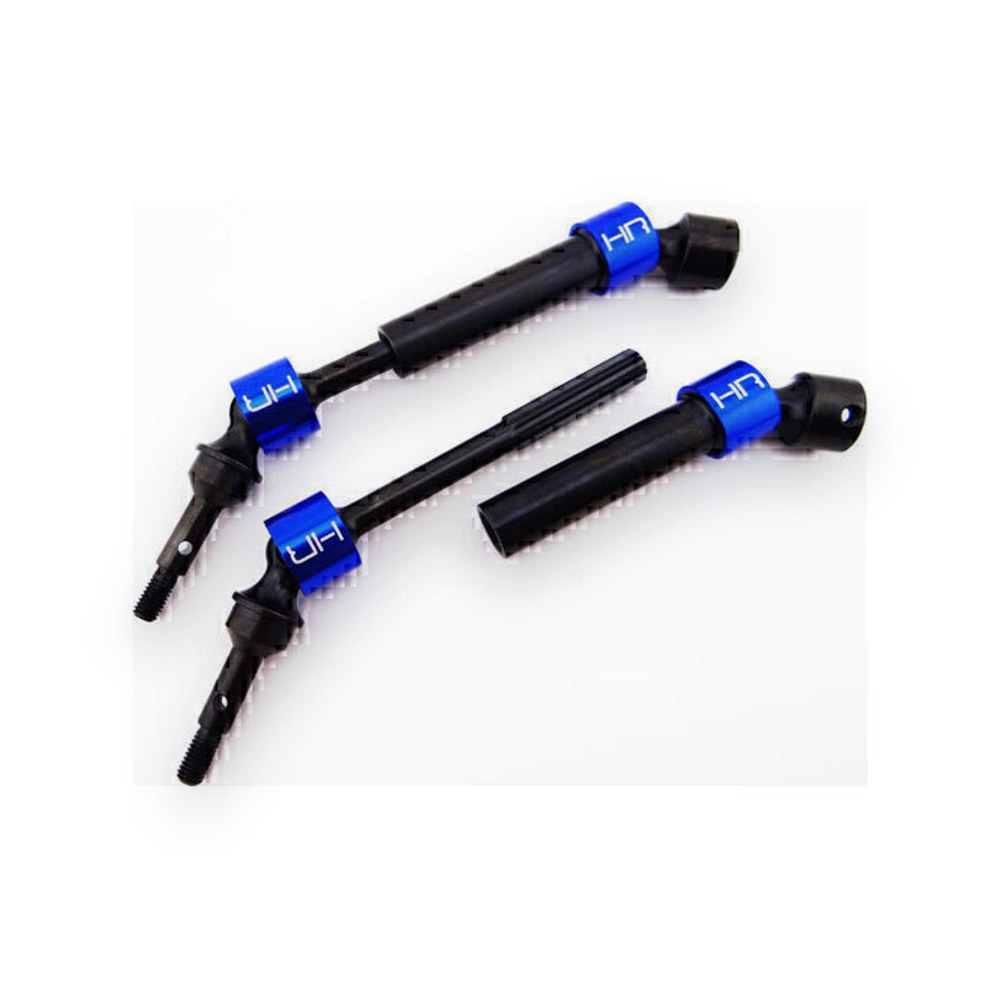

Hot Racing Revo 4WD Ssd CV Drive, Steel

About this part

Heavy duty splined star drive CVD axle kit from Hot Racing, an optional upgrade for the front or rear of the new Traxxas 1/10 E-Revo, E-Maxx, Revo 3.3, T-Maxx 3.3, and Summit (56076-4). These shafts fit vehicles that use Traxxas 5451X axle shafts, so confirm your vehicle uses them before ordering.

Features

• Heavy duty CNC machined #45 hardened carbon steel construction
• Replaces factory plastic front or rear drive axles
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Design eliminates the CV pin setscrew
• Black finished steel

You will receive

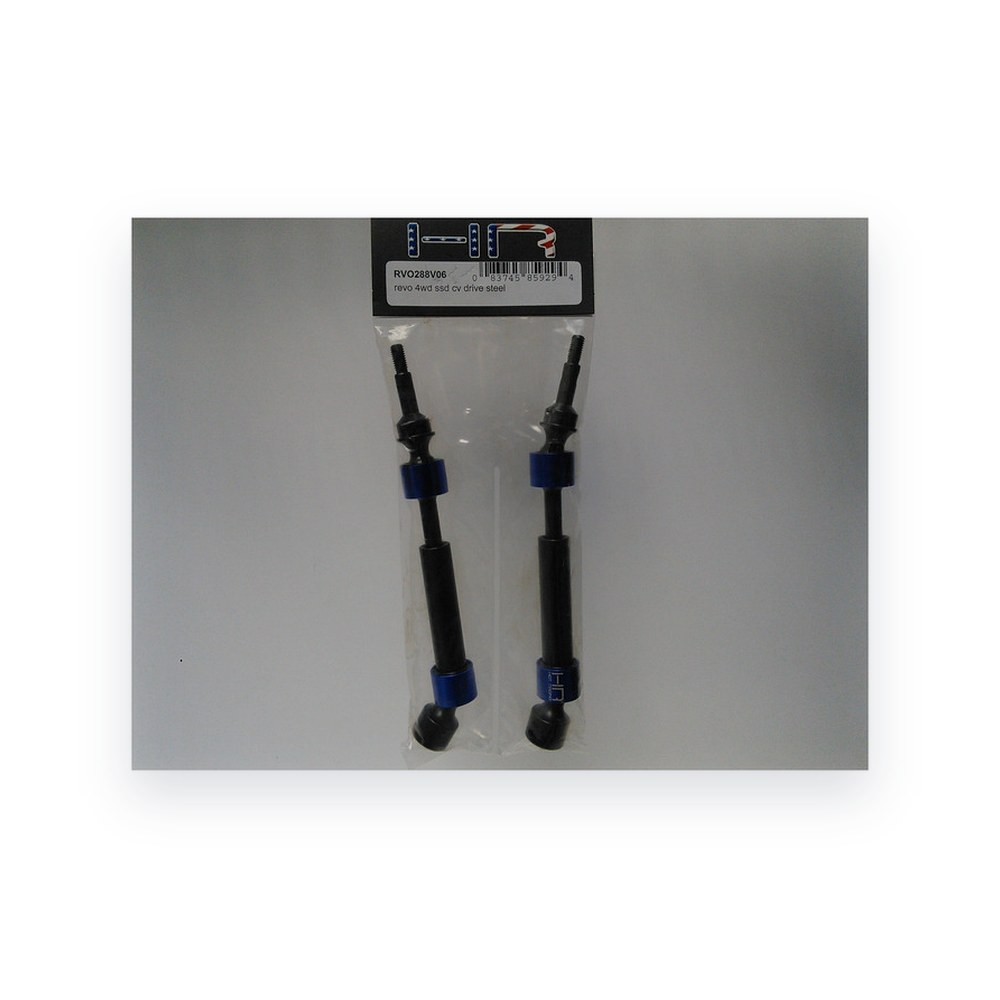

• Two (2) splined CVD shaft assemblies

Requirements

• Installation at the rear drive assembly
• Grease recommended to maintain the CV joint and shaft spline
• A removable-type locking adhesive is recommended on screws threading into metal

Specifications

• Approximate collapsed length: 151mm (5.9 inches)
• Approximate full extension, zero shaft engagement: 199mm (7.8 inches)
• Pins: 15x2.5mm

Comments

• Replaces the factory plastic Traxxas 5451X axle driveshaft assembly
• Replacement or spare drive hubs are Hot Racing RCV15DH
• Replacement or spare slider shafts are Hot Racing RCV15MF86

Fits

Replaces stock part
