Hot Racing Revo Heavy Duty CNC Aluminum Outer Differential Case, Black

About this part

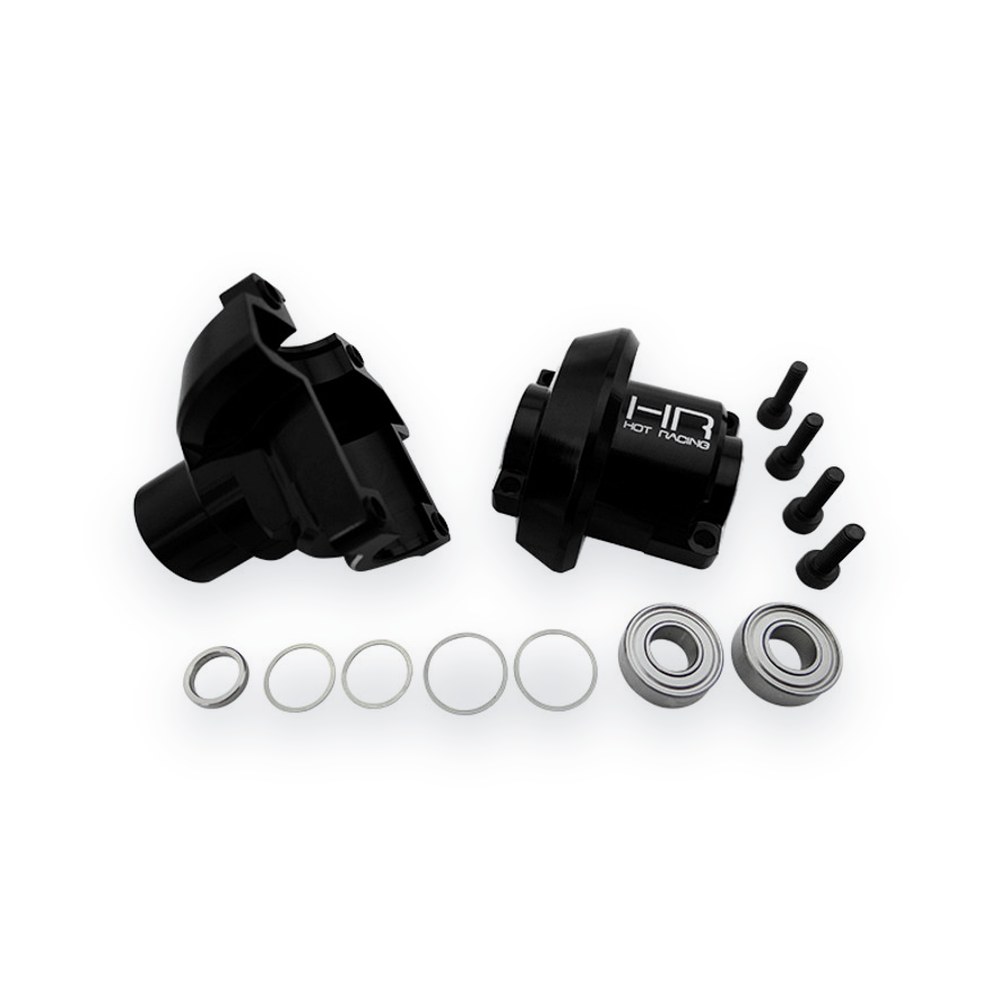

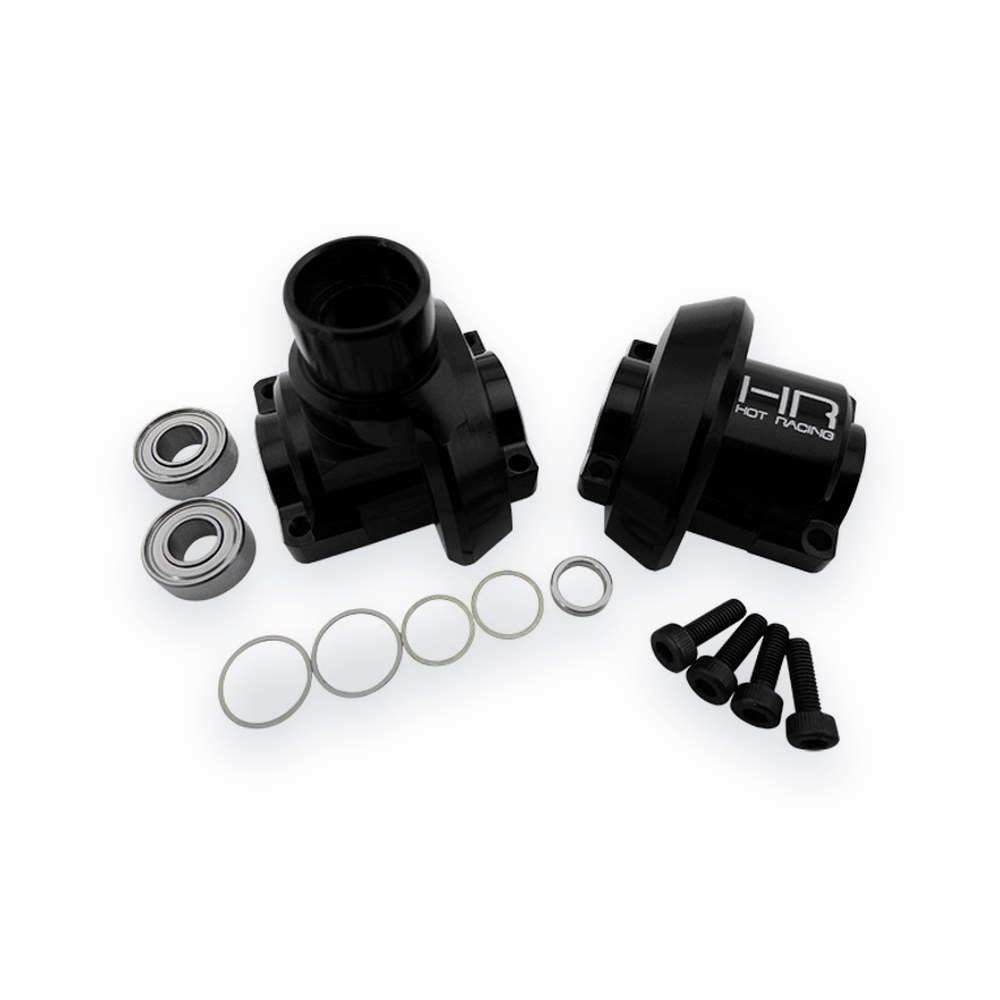

Aluminum outer differential housing from Hot Racing for the Traxxas E-Revo, Revo 3.3, and Slayer Pro 4X4.

Features

• Two oversize heavy duty bearings
• CNC machined billet aluminum, anodized black
• Direct fit hop-up that requires no modifications

You will receive

• One (1) differential housing, two pieces
• One (1) steel bearing crush sleeve
• Four (4) M3x10 socket head cap screws
• Two (2) 11.2x10.2x0.2mm shims
• Two (2) 9.4x8x0.1mm shims
• Two (2) 6x13x5 bearings

Requirements

• Installation
• Shimming may be needed for proper alignment and fit
• Removable thread lock for screws threading into metal
• 2.5mm hex wrench for the housing screws

Specifications

• Length: 52.7mm, width: 35mm, height: 43.5mm

Comments

• The preferred match for the SRVO1337T steel helical spiral differential ring and pinion gear set. Replaces the Traxxas plastic 5380 differential housing.

Fits
