Hot Racing Ascent 18 Steel Gear Set, Ultra Low Range 20.5:1
RACM38U

Hot Racing Ascent 18 Steel Gear Set, Ultra Low Range 20.5:1

Hot Racing Drive-train: gearbox and gears
$33.88
In stock
Added ✓

30-day returns · Secure checkout by Stripe · We accept Visa, Mastercard, American Express, Discover, Apple Pay, Google Pay and Link

Whippy
Whippy checked a few minutes ago:
it's in stock.
- Lock it in

About this part

An ultra low range 20.5:1 internal gear set from Hot Racing for the Ascent 18. The set is CNC machined from #45 steel and brass, with hardened gears for better wear resistance and fatigue life. It replaces the stock plastic gears.

Features

  • Precision CNC machined #45 steel and brass
  • Hardened gears for improved wear resistance and fatigue life
  • Replaces the stock plastic gear set

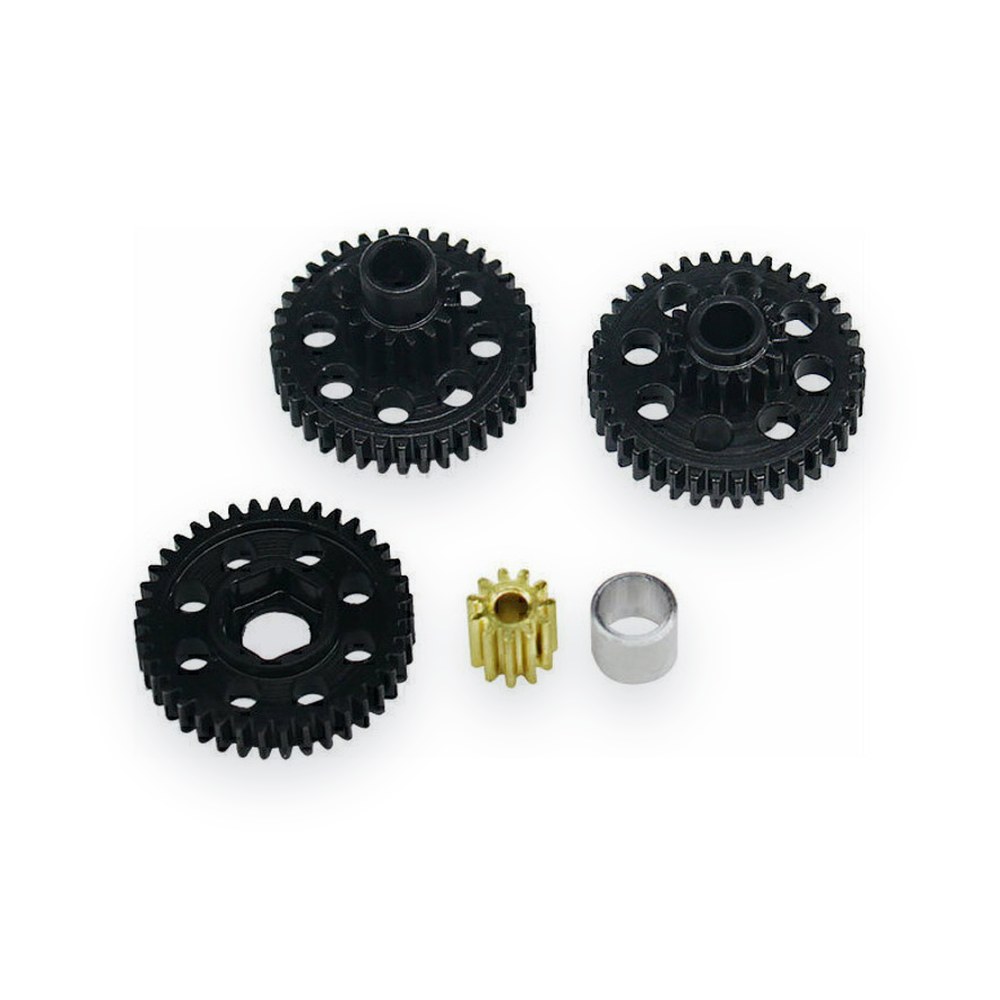

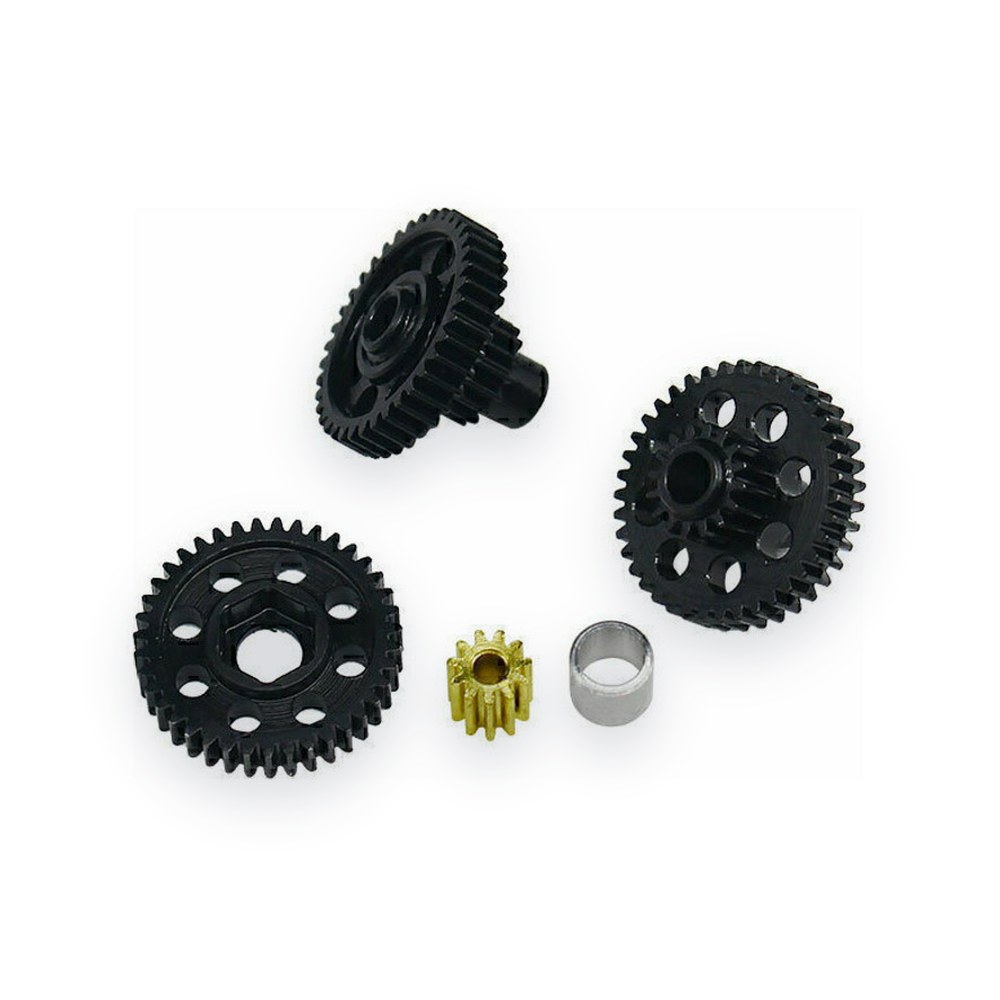

You will receive

  • One (1) steel drive gear, 38T/16T
  • One (1) steel idler gear, 39T/16T
  • One (1) steel output drive gear, 39T
  • One (1) brass pinion gear, 11T

Requirements

  • Replaces the stock transmission and hardware
  • Apply a light amount of grease to the gears during installation
  • A gear remover is recommended for installing the pinion gear, SDR1380

Comments

  • Replaces RER29168 and RER29171. TRXM180N9 can also be used. Stock gear ratio is 13:1.

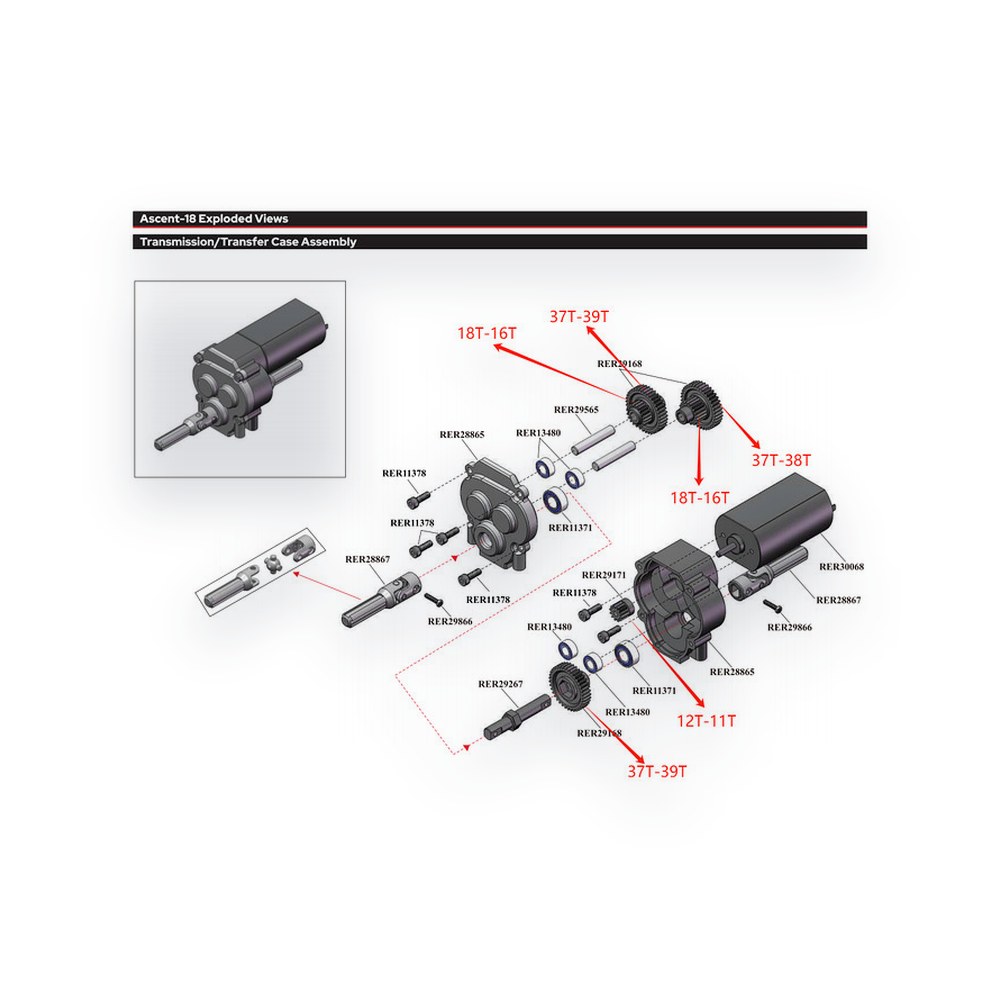

  • The stock plastic set consists of a 37T/18T drive gear, a 37T/18T idler gear, a 37T output drive gear (RER29171), and a 12T plastic pinion gear, with RER29168 as the stock gear set.

Fits

Redcat 1:18 Ascent Rock Crawler
