Hot Racing Maxx 1:10 Metal Cv Splined Drive Shaft, Wide

About this part

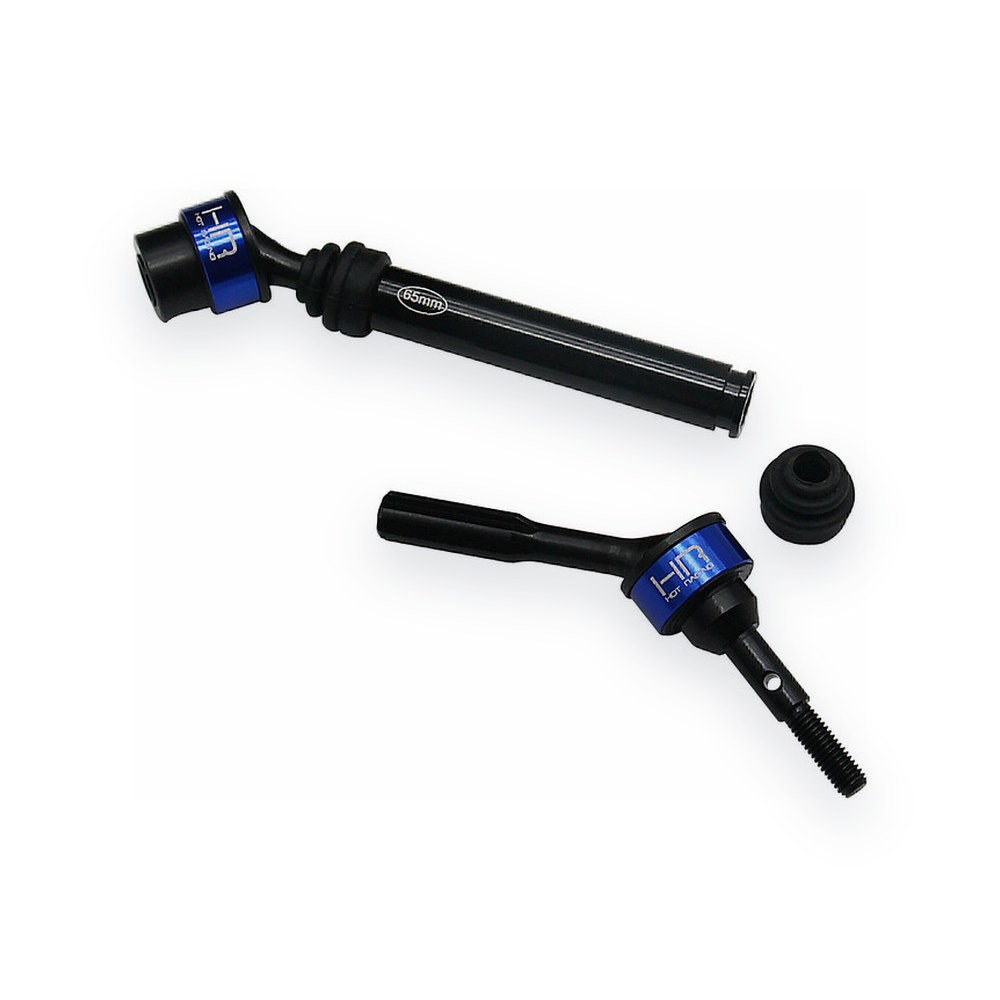

Heavy-duty splined star-drive CV axle kit for the front or rear of the 1/10 scale new Wide Maxx. The CVs, drive hub, male slider spline, and stub axle are CNC machined from #45 hardened carbon steel. The slider tube is CNC machined aluminum. Blue anodized aluminum pin capture rings with rubber O-rings prevent movement, and rubber dust boots cover the joints. These replace the factory front or rear driveshaft axles.

Includes

• Two (2) splined axle assemblies.

Requirements

• Installation into the drive assembly. Reuse the stock drive pin and set screw. Keep the CV joint and shaft spline greased. Medium thread lock is recommended on screws that thread into metal.

Specifications

• Collapsed length, overall: 160 mm
• Extended length, overall, zero shaft engagement: 176 mm
• Collapsed length, wheel pin to outdrive pin: 138 mm
• Extended length, wheel pin to outdrive pin, zero shaft engagement: 152 mm

Comments

• Designed for the TRA Wide Maxx kit (TRA8995). For the older, narrower Maxx, order MXX288RC06.
