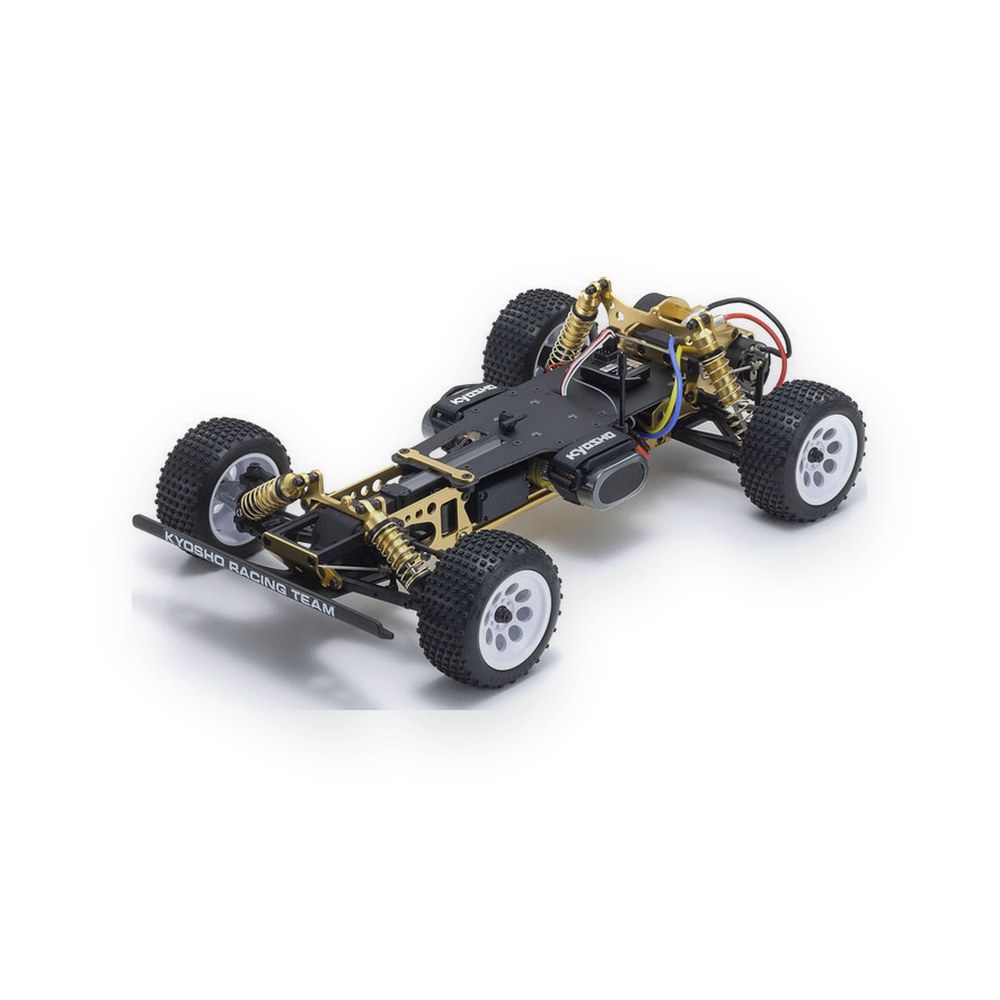

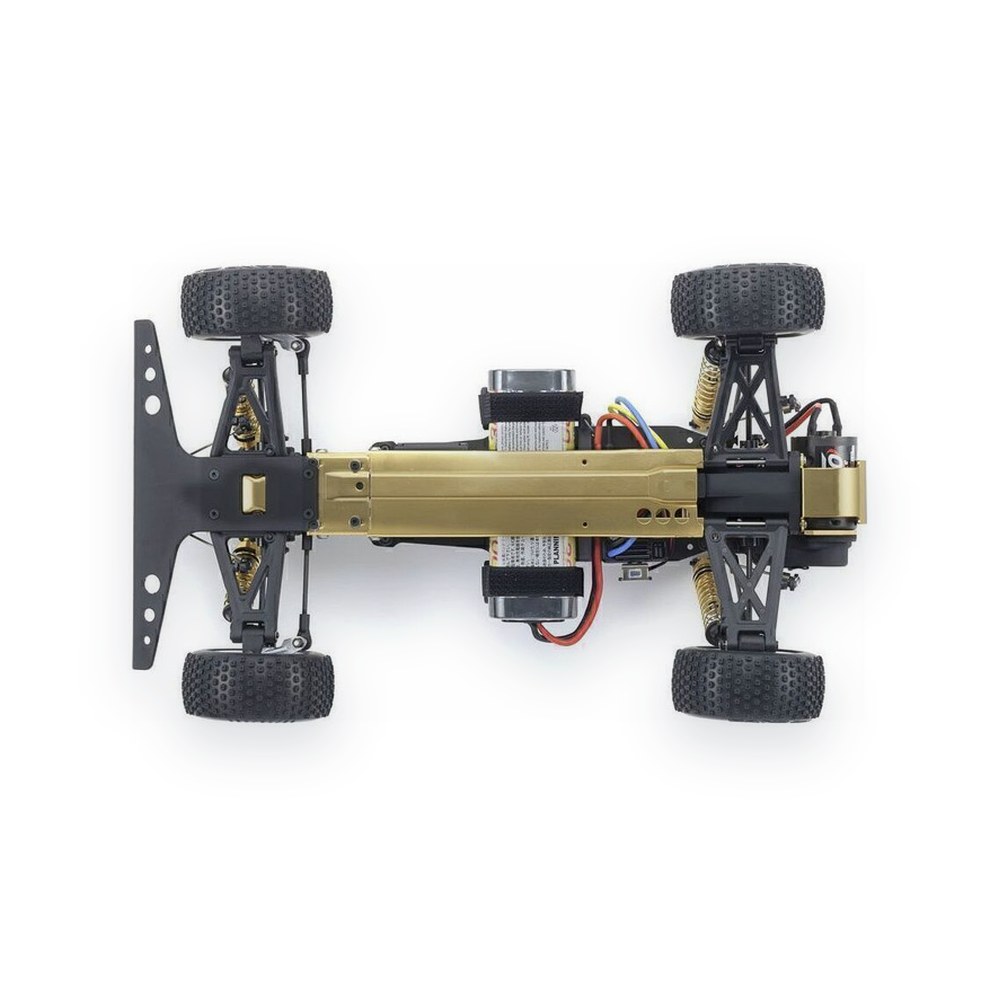

Kyosho Turbo Optima Gold Kit, 4WD, Radio Controlled Model Car

About this part

The Turbo Optima Gold is a 4WD kit from Kyosho for the Optima Vintage platform.

Specifications

• Length: 395mm
• Width: 244mm
• Height: 120mm
• Wheelbase: 260mm
• Front tread: 208mm
• Rear tread: 208mm
• Weight: approx. 1,600g
• Tires (F/R): diameter 82, 36mm wide
• Motor: 540 class (sold separately)
• Gear ratio: 9.24:1

You will receive

• Kit chassis, decals, L-shaped hex wrench, cross wrench, shock wrench, shock oil, grease

Requirements

• 2-channel R/C system (one servo, one ESC)
• 540 motor (27T-20T recommended)
• Brushless setup: No. 37031 Le Mans 240S brushless motor 19.5T and No. 37051 Le Mans 240S ESC (60A, max 13.5 turn)
• Brushed setup: No. 37021 Le Mans brushed motor 30T and No. 82245 KA060-91W ESC
• Battery: 7.2V NiMH or 7.4V Li-Po
• Battery charger: DC 12V regulated power supply
• Paint tools for body painting
• Batteries for the transmitter
• Tools: 1.5, 2.0, and 3.0mm hex wrench screwdriver, needle nose pliers, curved scissors, cutter. A Phillips screwdriver may be needed when replacing the servo horn.
