Hot Racing Kyosho Fo-Xx Mad Crusher Force Solid Axle Housing, Aluminum

About this part

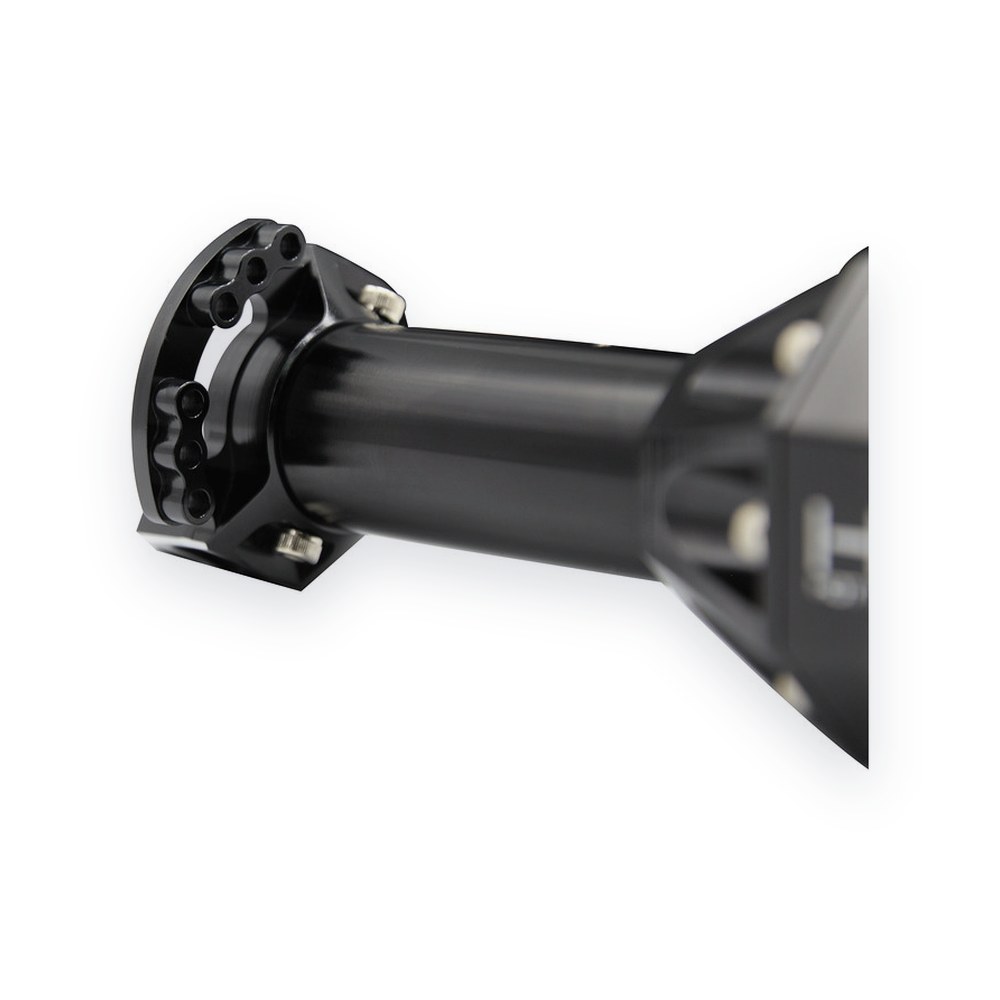

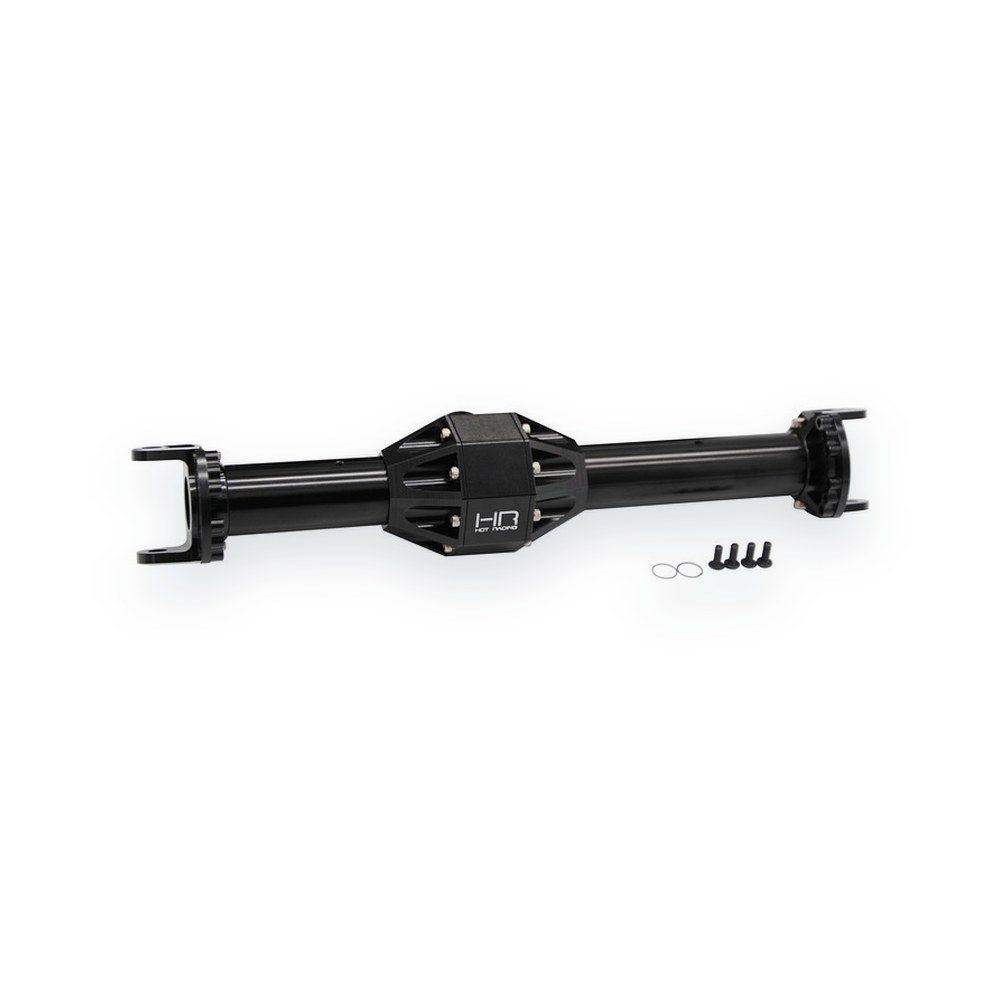

Billet aluminum solid axle housing from Hot Racing, for the front or rear of the 1/8 Kyosho FO-XX, Mad Crusher, Mad Force and Twin Force. Two are needed to complete the front and rear of the vehicle. Adjustable caster C-hubs let it run in either position.

Features

• Heavier duty than the stock plastic housing, with 24mm diameter, 3mm wall axle tubes
• CNC-machined billet aluminum, black anodized
• RECEIVE:
• Axle housing, four M3x8mm button head cap screws for radius arm attachment, bearing shims

Requirements

• Install per the vehicle manual. Apply medium blue threadlocker to the screws, which ships without it.

Specifications

• Total length 263mm, weight 245g

Notes

• Replaces Kyosho stock part numbers MA004F/MA004R and MA002. Believed to fit the vehicles below, but check your vehicle's literature.
• FO-XX VE #30887, #34251
• FO-XX GP #31228, #33151
• Mad Crusher VE #34253
• Mad Crusher GP #33152
• Mad Force Kruiser VE #30885
• Mad Force Kruiser GP #31226
• Mad Force Kruiser 2.0 VE #30888
• Mad Force Kruiser 2.0 GP #31229
• Twin Force #30521
