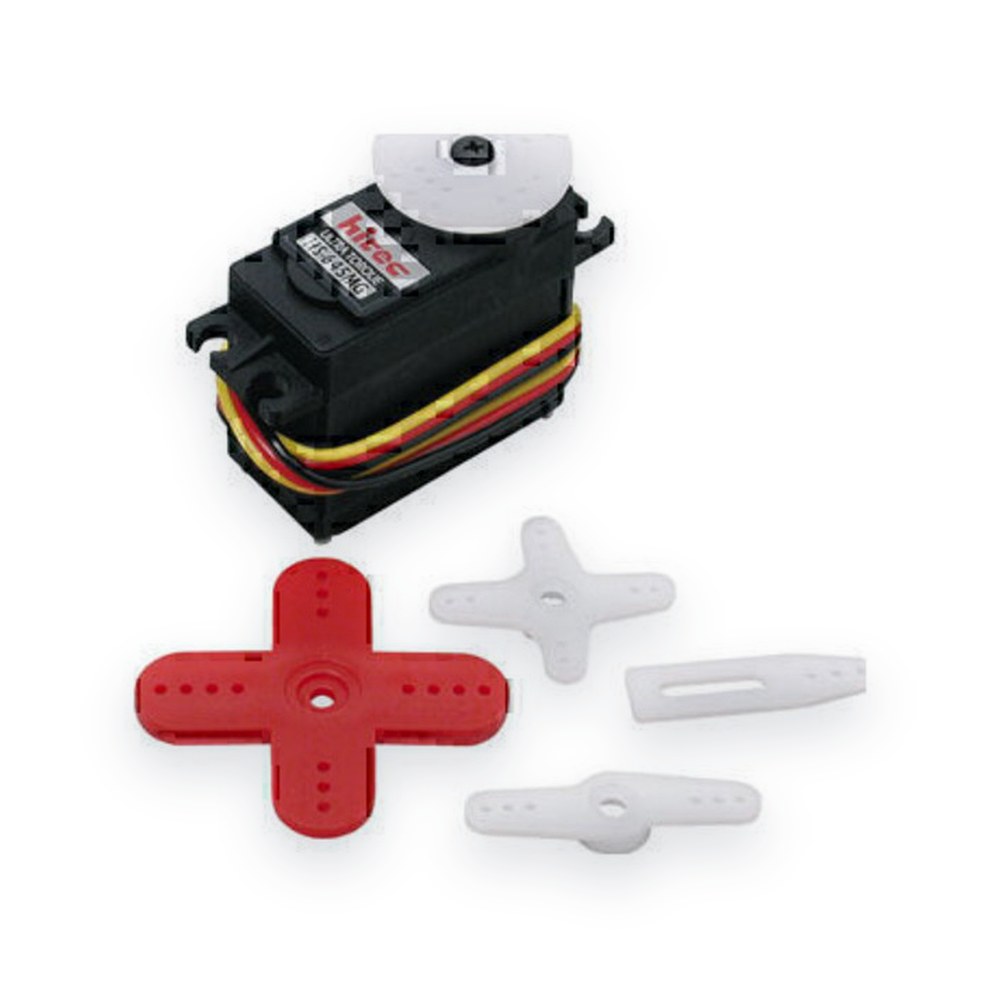

Hitec/RCD HS-645MG Ultra-Torque Servo, Universal

About this part

The HS-645MG is an ultra-torque Hitec servo with a Futaba J, Hitec, JR and AirTronics-Z style connector. It has three metal gears, including a metal first gear, along with dual ball bearings and four adjustable splined horns. It is made for .60 size helicopters and for glow or electric cars and boats.

Features

• Three metal gears
• Dual ball bearings
• Metal first gear
• Four adjustable splined horns

You will receive

• One ultra-torque servo with 11.5" connector wire
• One white small X-shaped horn
• One red large X-shaped horn
• One white adjustable horn
• One white offset straight horn
• Four 2 x 14mm mounting screws, four brass eyelets and four black rubber vibration isolators

Requirements

• Futaba J, Hitec, JR or AirTronics-Z radio system

Specifications

• Speed: 0.24 sec/60 at 4.8V, 0.20 sec/60 at 6.0V
• Torque: 106.93 oz-in (7.7 kg-cm) at 4.8V, 133.31 oz-in (9.6 kg-cm) at 6.0V
• Length: 1.59" (40.6mm)
• Width: 0.77" (19.8mm)
• Height: 1.48" (37.8mm)
• Weight: 2.11 oz (60g)
• FITS:
• HPI Nitro Nitro RS4 (belt) (really old)
• HPI Nitro RS4 Super Nitro
• HPI Electric RS4
• HPI Electric Pro 2
• HPI Nitro N. Racer 2 RS4 (belt)
• HPI Nitro N. Racer RS4 (belt)
