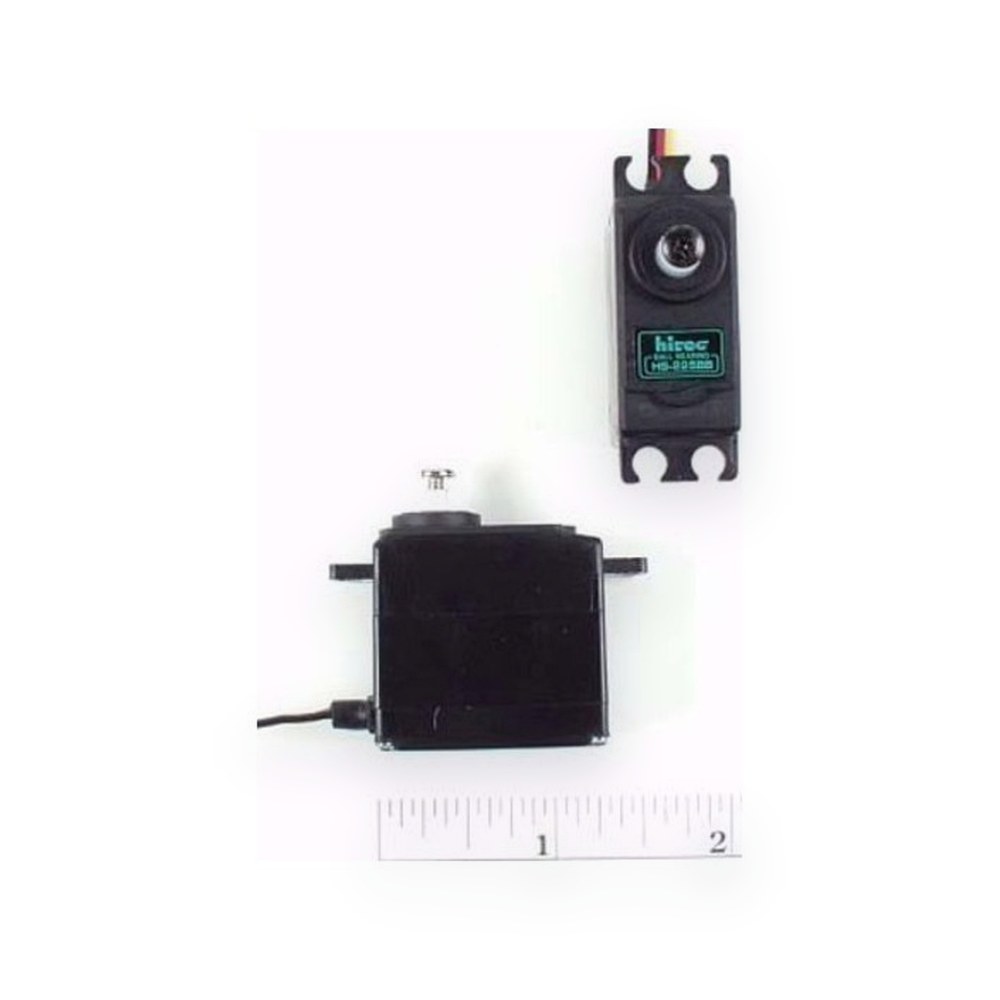

Hitec/RCD Hs-225MG Servo, Mighty Mini MG BB, S Univ

About this part

The HS-225MG is a precision mini servo from Hitec with a universal S/Z/JR and Futaba J connector that works with modern receivers and wiring accessories. It is light and small, which suits sailplanes and weight-sensitive models. It combines a ball bearing, metal gears, indirect drive and a hybrid circuit.

You will receive

• One HS-225MGS metal gear micro servo
• Four screws, grommets and eyelets
• Three servo arms and one wheel

Specifications

• Size: 32.4mm L x 16.8mm W x 30.8mm H (1.27" x 0.66" x 1.21")
• Transit: 0.14 sec/60 at 4.8V, 0.11 sec/60 at 6.0V
• Torque: 3.9 kg-cm (54.2 oz-in) at 4.8V, 4.8 kg-cm (66.7 oz-in) at 6.0V
• Weight: 31g (1.09 oz)
• REPLACEMENT:
• The replacement metal gear set is #56396
