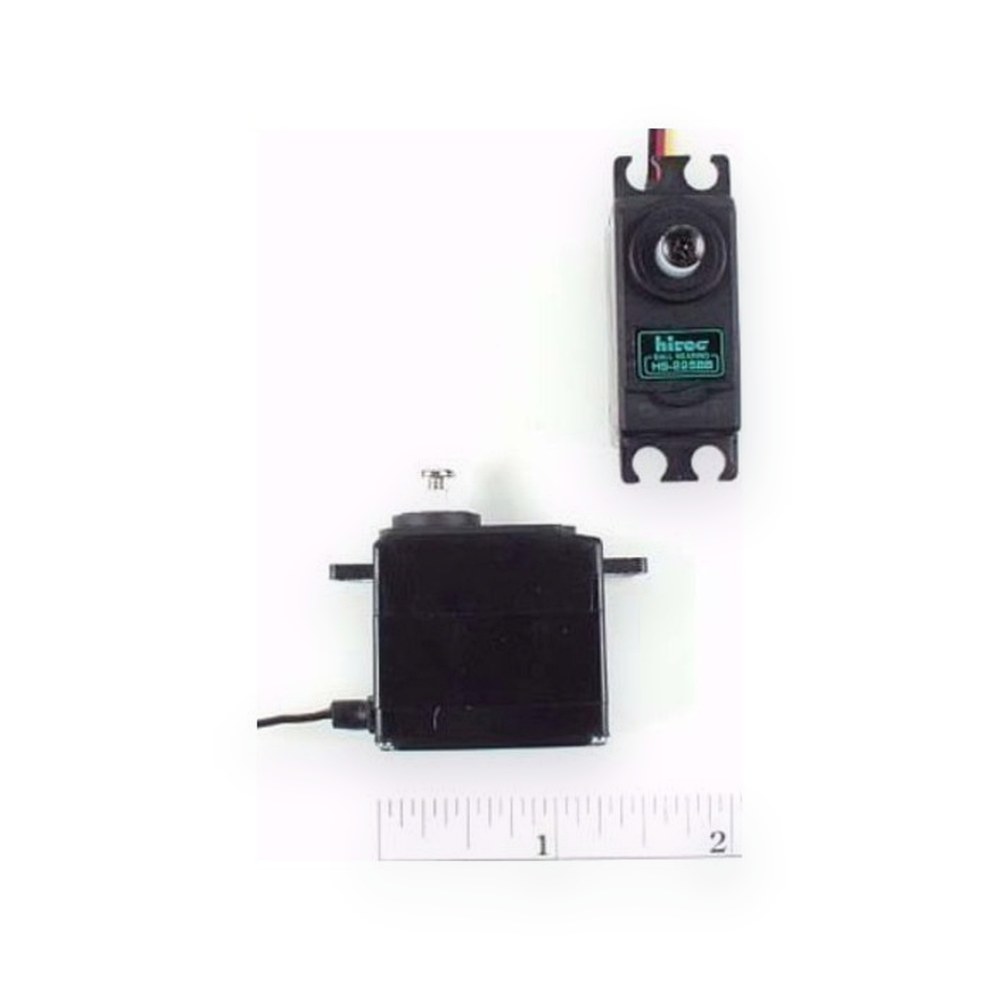

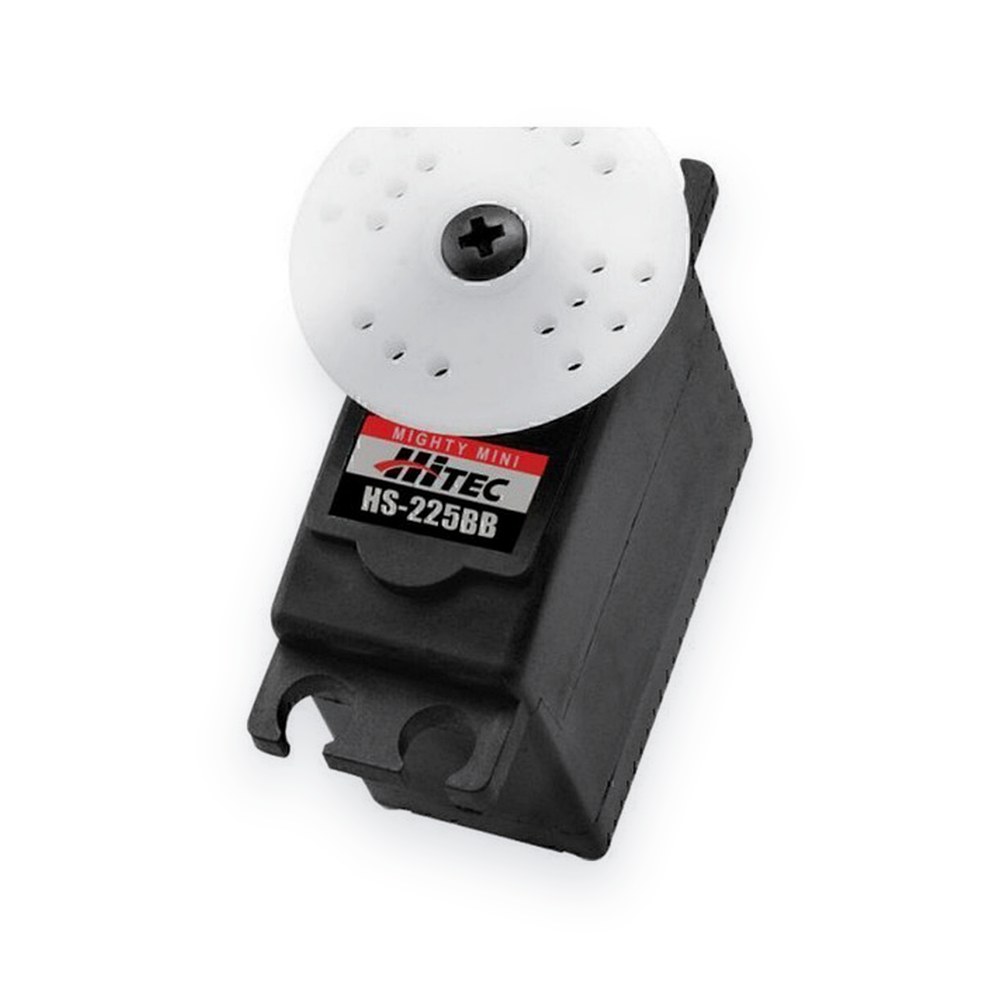

Hitec/RCD Mighty Mini BB Servo, HS-225, Universal

About this part

The HS-225BB Mighty Mini ball bearing servo from Hitec/RCD has a Futaba J, Hitec/JR/AiRTRonics Z style connector. The connector works with all modern receivers and wiring accessories.

Features

• Mini servo with ball bearing and plastic gears
• Suited to small planes and hand launch gliders

You will receive

• 1 HS-225BB servo with pre-installed circular horn
• 1 straight horn
• 1 X horn
• 1 adjustable arm
• 4 black rubber grommets
• 4 brass servo eyelets
• 4 servo mount screws

Specifications

• Length: 32.4mm (1.3")
• Width: 16.8mm (0.7")
• Height: 30.8mm (1.2")
• Weight: 27g (0.95oz)
• Torque: 3.9 kg-cm (56.4 oz-in)
• Speed: 0.14 sec/60
• Servo wire lead: about 10" long
• REPLACEMENT PARTS:
• HRCM6341 (6341 gear set)
• 6342 servo case set
• HRCM6315 (6315 horn set)
• HRCM6336 (6336 hardware set)
• 8471 ball bearing
• FITS:
• Associated RC-12LW
• Speedmerchant Rev 2
• Associated RC-12L
• Speedmerchant Rev 3
• Calandra Racing Carpet Knife
• Associated RC-12L3
