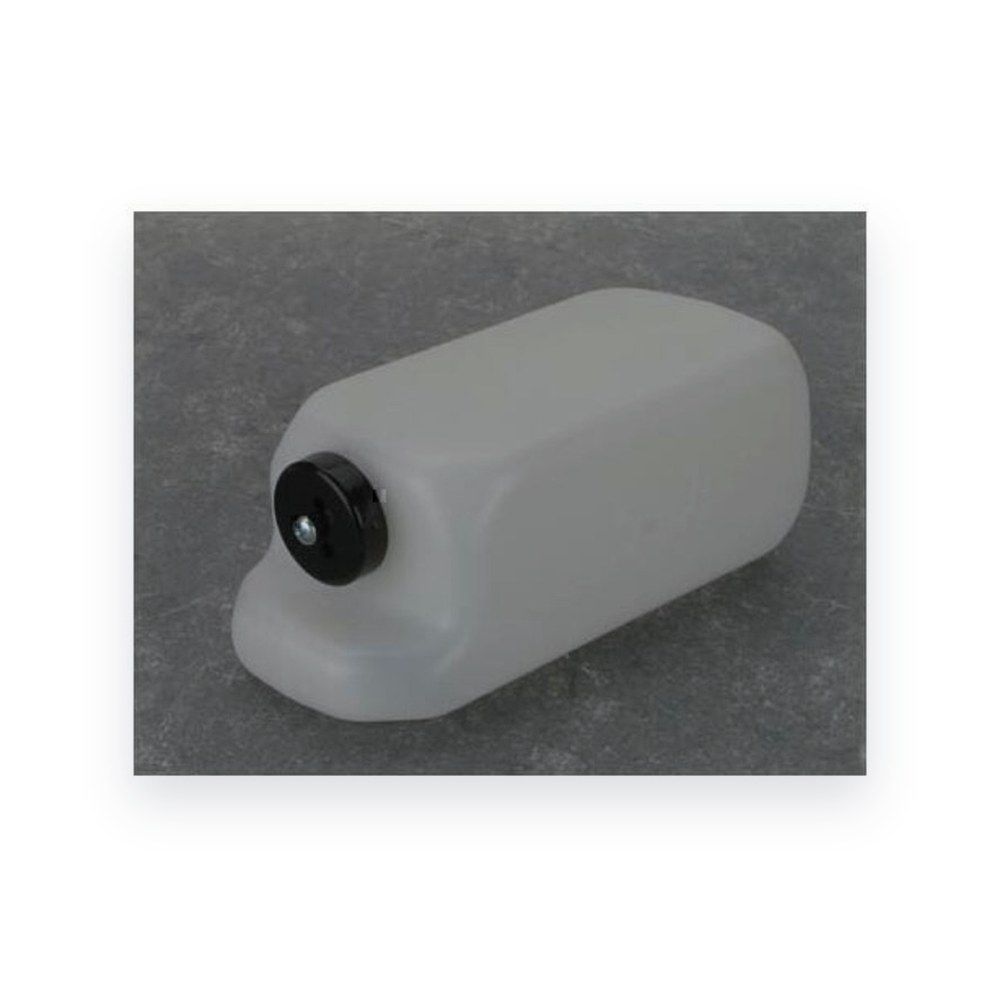

DU-BRO S8 Square Fuel Tank, 8 Oz

About this part

An 8 oz square fuel tank from DU-BRO. It resists splitting or cracking from vibration or pressure and can be used in pressurized fuel systems. The one-piece clunk has built-in fuel barbs, so tubing stays on. A protruding front lip keeps fuel lines from being crimped. The filler cap fits over a smooth machined neck for a leakproof seal. Single or twin vent options, soft brass tubes and a clunk pickup for even fuel flow are included. Illustrated assembly instructions are provided. USE: Can be used with Glo-Fuel or gasoline. Gasoline use requires the DUBQ0675 Gasoline Conversion Stopper, sold separately. INCLUDED: One 8 oz fuel tank with all hardware

Requirements

• Assembly, hobby knife, Phillips screwdriver

Specifications

• Capacity: 8 oz (240cc)
• Height: 1-15/16 in.
• Width: 2-5/16 in.
• Length: 4-7/8 in.

Notes

• If the installation uses gasoline or diesel, replace the rubber plug and silicone tubing with suitable material.
• FITS: General hobby RC aircraft parts.
