Arrowmax Purple Body Post Trimmer

About this part

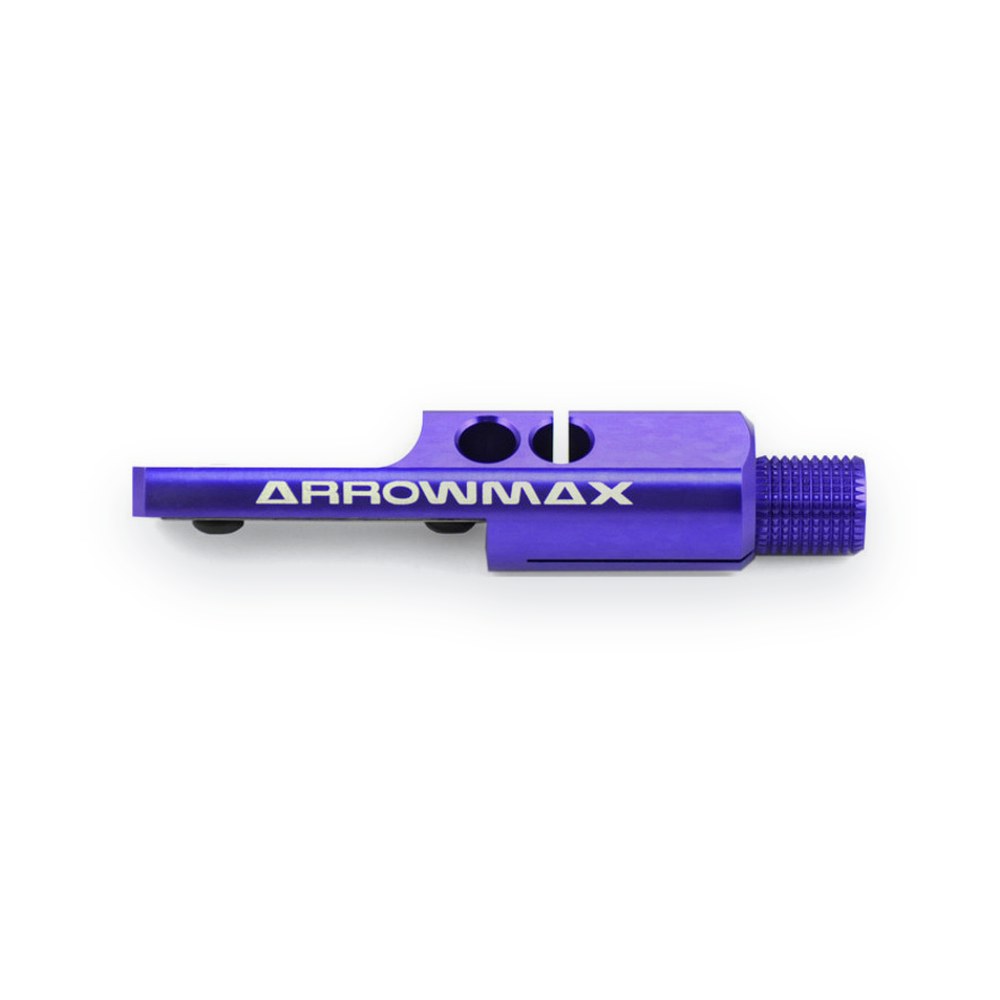

An Arrowmax purple body post trimmer. It trims your car's body posts so the shell sits at the correct height and the posts finish smooth and chamfered. FITS: Redcat THUNDER EPX DRIFT Tamiya TT-02D Yokomo 1:10 YD-2 Drift Yokomo 1:10 MD 1.0 Master Drift Yokomo 1:10 SD Super Drift Yokomo 1:10 YD-4 Drift BEFORE YOU START: Fit the body to the car to check its height, then remove it. TRIMMING: Place the trimmer on the first post. Choose the 6mm or 10mm length by turning the tool. Turn the knurled screw counterclockwise until it comes out, insert a cutter knife or scalpel, then turn the screw clockwise until the blade stops at the end of the slot. Lift off the cut top with the trimmer and repeat on the other posts. FINAL CUT: Seat the stud hole over the post and turn the trimmer about 360 degrees under light pressure to cut a 1mm chamfer.

Note

• If the chamfer is not right, set the blade gap to 0.2 to 0.5mm from the edge of the aluminum body.
