Hot Racing Yeti XL Aluminum Shock Ez Bleeder Upgrade Kit

About this part

Hot Racing optional aluminum dress-up set for the 1/8 Axial Yeti XL. It includes bleeder shock caps, lower shock caps, spring retainers, and adjustable collars. The bleeder screws make it easy to bleed the shocks.

Features

• CNC machined aluminum construction
• Anodized red
• Bleeder screws for easy bleeding
• Collars with o-rings to prevent accidental adjustment

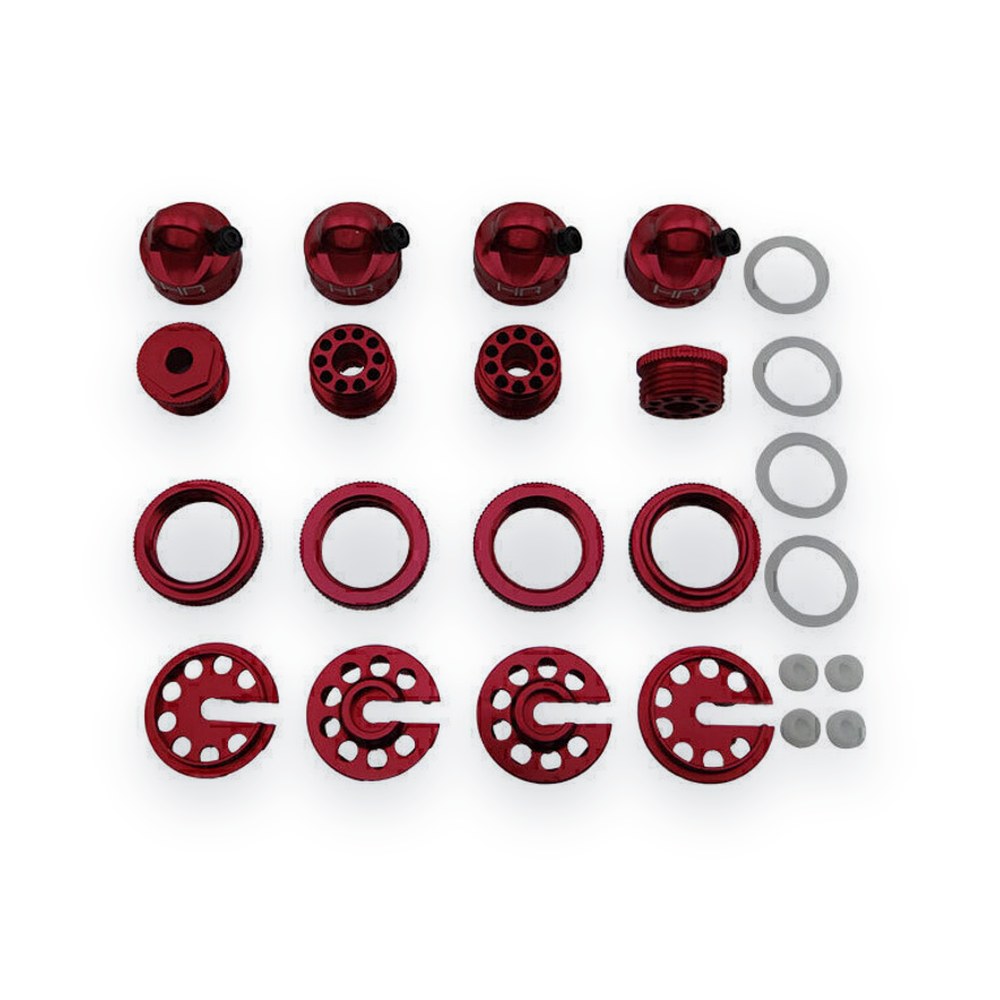

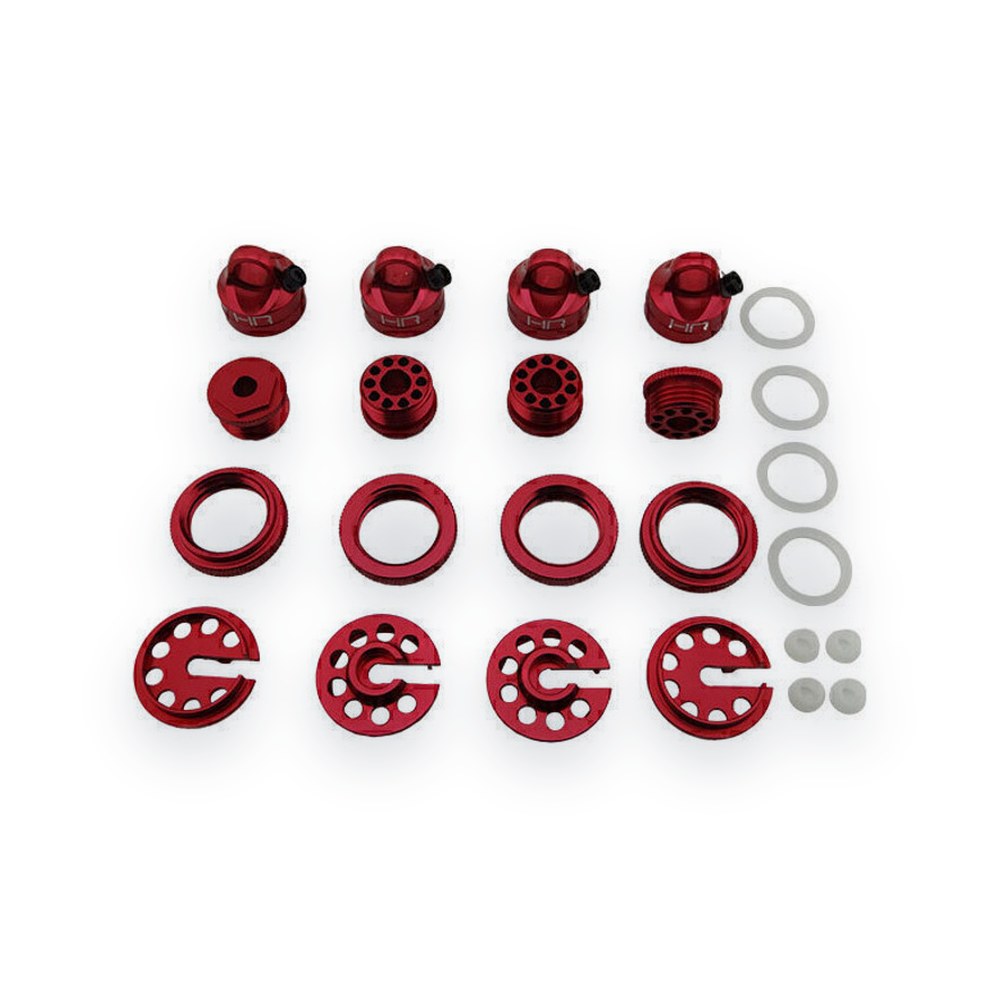

• IN THE BOX:
• Four (4) aluminum bleeder shock caps
• Four (4) aluminum spring adjusters and collars
• Four (4) aluminum lower shock caps
• Four (4) aluminum spring retainers

Requirements

• Installation onto shock absorbers. Some parts from the stock shock are needed.

Specifications

• Shock cap o-ring: 19x15x2mm

Notes

• To bleed, remove the bleeder screw so the oil and air have a place to escape. Slowly compress the shaft to push out excess oil and air. With the shaft compressed, reinstall the small screw into the bleeder cap.
• Replacement o-rings and bushings are Hot Racing part RYEX156R

Fits
