Hot Racing TRX4M Steel Helical Diff Ring/Pinion, Overdrive (12/22)

About this part

Steel helical ring and pinion overdrive, 22T ring with 12T pinion, for the 1/18 TRA TRX-4M. The spiral cut gears are stronger and run smoother than factory straight cut bevel gears, with less vibration, noise and wear. This ratio is a 10% overdrive compared with the stock 24T/12T, which raises wheel speed and is commonly used in the front for better digging. It works on the front or rear.

Features

• Precision machined helical spiral cut gears
• High carbon steel construction

You will receive

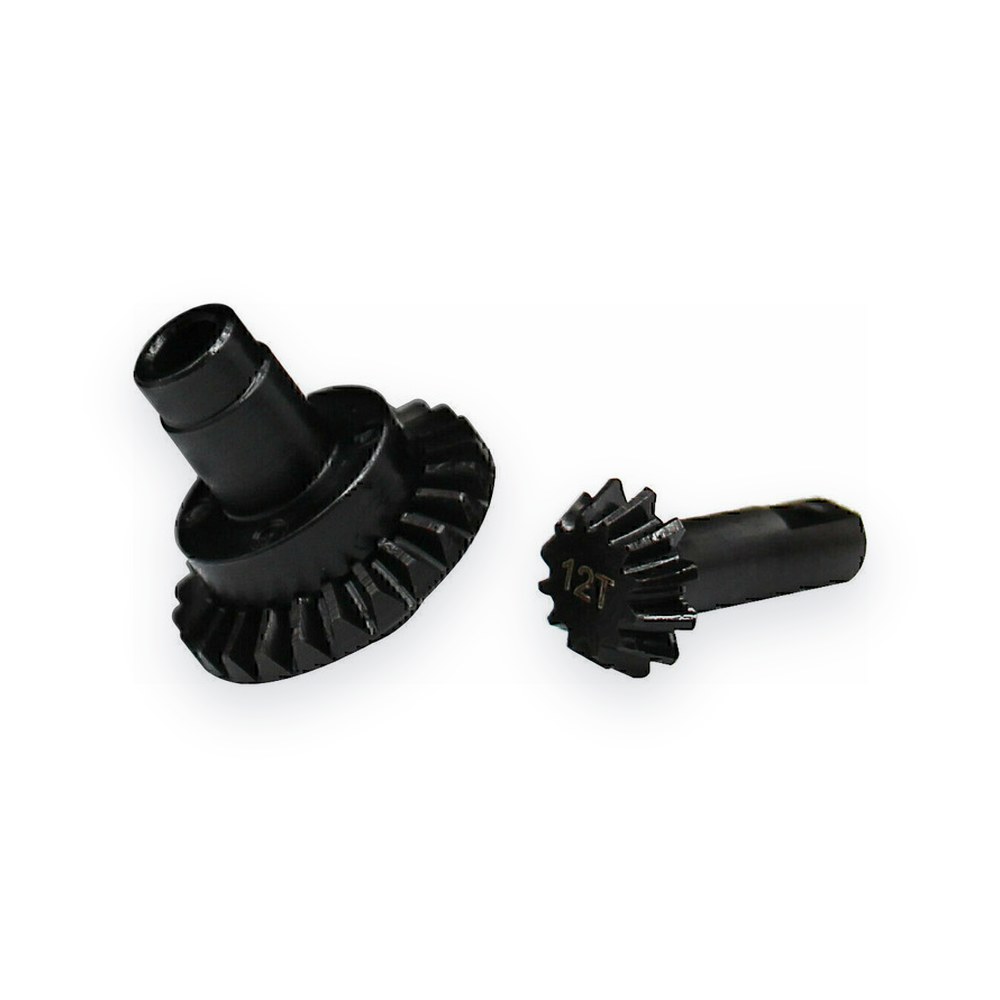

• One 22 tooth spiral cut ring gear
• One 12 tooth spiral cut pinion gear

Requirements

• Installation following the kit manual
• Medium blue threadlock if screws thread into metal
• Hot Racing SPL10G05 high temp grease is recommended

Comments

• Replaces the TRA9779 option part.
• Typical setups: overdrive the front axle and underdrive the rear. Combinations include TRXM9224 front with TRXM9022 rear, TRXM9224 front with TRXM9024 rear, TRXM9222 front with TRXM9224 rear, and TRXM9222 front with TRXM9024 rear.

Fits

Replaces stock part
