Trinity MX10 Gen3 1/10th ESC

About this part

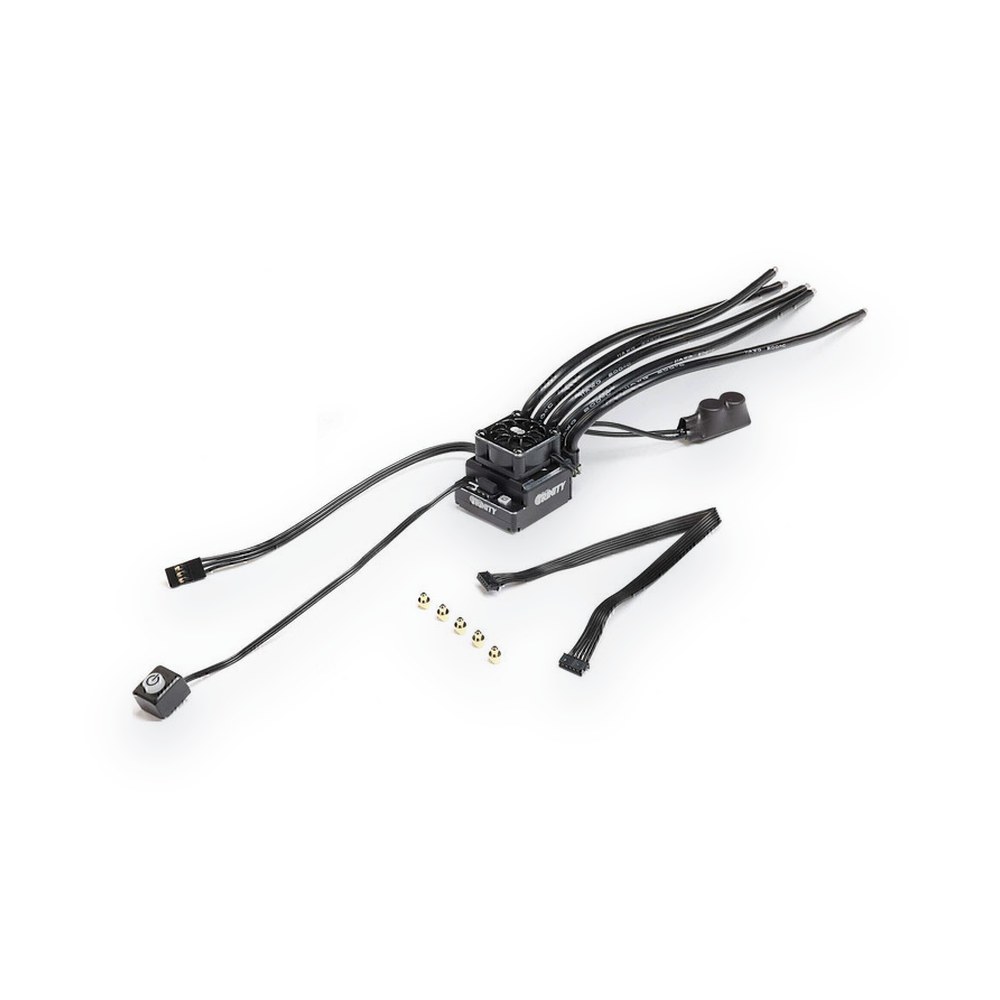

The Trinity MX10 Gen 3 is a 160 amp sensored ESC for competitive 1/10 scale stock and modified racers. It is rated for 160 amps constant and 1200 amps burst, and it runs in a black machined aluminum case built to shed heat. This third generation ESC uses a 32-bit microprocessor for more precise power output. Each unit ships with high strand count, high flex 13 gauge wire, a fan and a capacitor bank. A shortened receiver connector wire is included for a cleaner wiring layout. The MX10 Gen 3 can be programmed with the Trinity LCD ESC Program Box or the Trinity OTA Programming Module, which is sold separately. FITS: General hobby universal fit car parts

Specifications

• Application: 1/10 vehicle
• Auto cutoff: yes
• BEC type: adjustable
• BEC voltage: 6.0V / 7.4V
• Input voltage: 2-3S LiPo / 5-10S NiMH
• LiPo compatibility: 2S
• Low voltage cutoff: programmable
• Maximum burst current: 1200A
• Maximum continuous current: 160A
• Motor limit: 2-pole 3.5T
• Motor type: brushless
• Output: 5V to 7.4V adjustable
• Overload protection: yes
• Height: 1.19 in (30mm)
