Hot Racing Air Shocks, Green Internal Spring, 90mm

About this part

A set of 90mm internal spring air shocks for rock crawlers and custom builds. Black bodies with green anodized caps, air damping, and a precision 7mm stainless shaft.

Features

• CNC machined aluminum bodies, black anodized
• Upper cap with o-ring seal, green anodized
• Lower cap with shaft guide, green anodized
• Precision machined 7mm stainless steel shaft
• Double o-ring lower shaft seal
• Internal springs in gold (soft), black (medium) and silver (stiff)
• All aluminum is anodized for durability, corrosion resistance and appearance

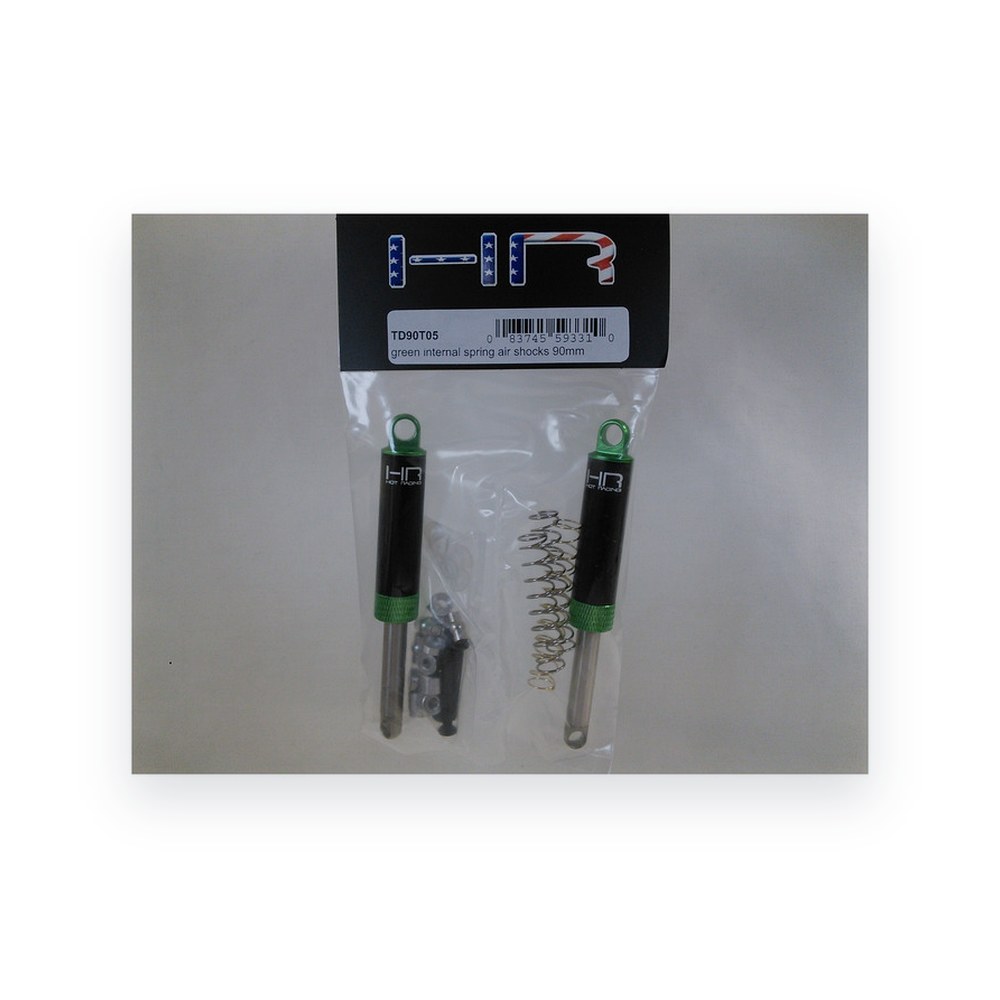

You will receive

• Two (2) assembled shocks
• Two (2) gold (soft) springs
• Two (2) black (medium) springs
• Two (2) silver (stiff) springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Team Associated Green Slime ASC1105 is recommended on the lower o-ring seals

Specifications

• Extended center to center length: 90mm (3.5 inch)
• Compressed center to center length: 62mm (2.4 inch)
• FITS:
• Tamiya Juggernaut, Tamiya Clodbuster/Super Clodbuster, Tamiya Hi-Lift: F350 Tundra HiLux, HPI Electric
