Hot Racing Double Spring Shock Set, Aluminum 126mm (Red)

About this part

Hot Racing 126mm dual spring threaded aluminum shocks, supplied fully assembled. The bodies are hard anodized and the spring retainers and caps are red anodized.

Features

• Dual spring system with machined Delrin spring collars
• CNC machined 6061-T6 aluminum bodies, spring retainers, threaded spring collars, bottom seal retainers and caps
• Hard anodized bodies for smooth action and good corrosion and wear resistance
• Teflon two-hole pistons
• Red anodized spring retainers, threaded collars and caps
• 1.1mm black dual springs
• 1.0mm chrome dual springs

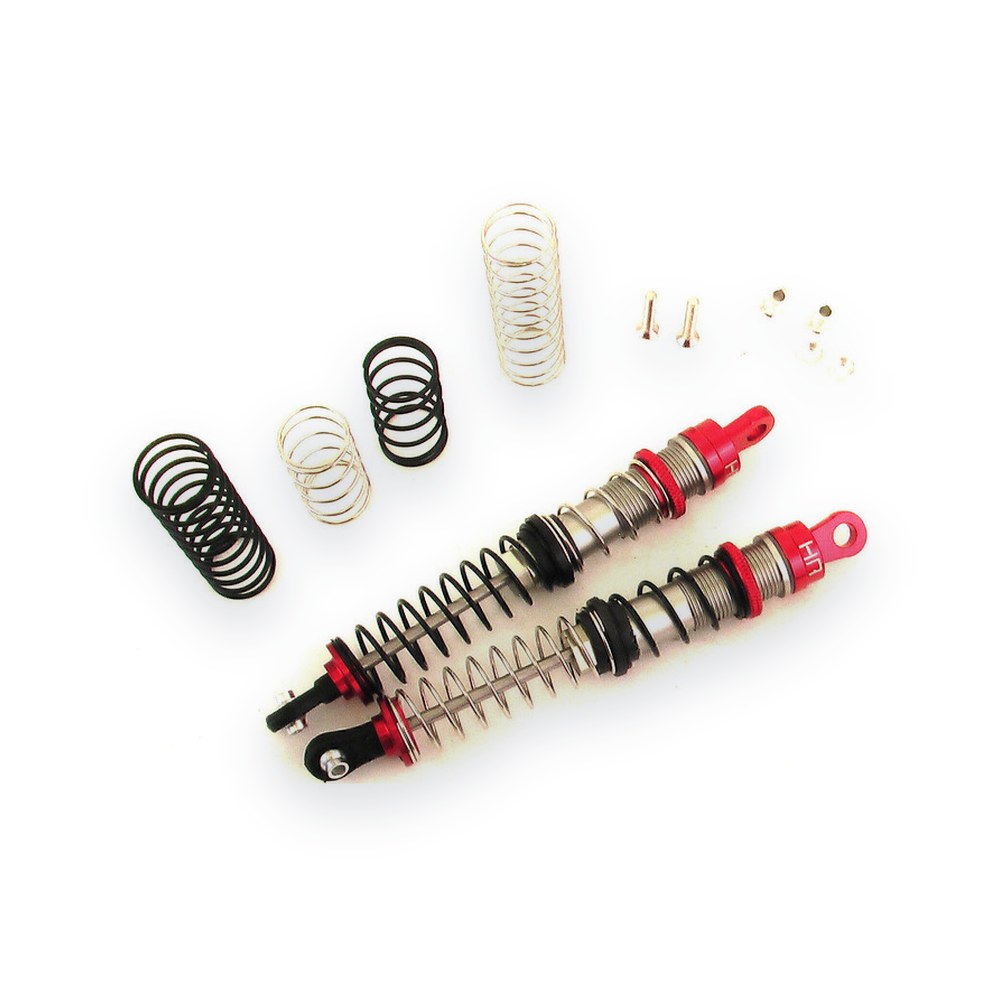

You will receive

• Two (2) fully assembled shocks with black main and tender springs
• Two (2) chrome tender springs
• Two (2) chrome main springs
• Two (2) aluminum upper cap bushings
• Two (2) aluminum countersunk washers
• Two (2) flat head cap screws

Specifications

• Extended mount to mount: 4.96 inch (126mm)
• Compressed mount to mount: 3.30 inch (84mm)
• Body diameter: 1/2 inch (13mm)

Requirements

• Silicone shock oil

Note

• The dual spring design gives a quick initial response while both tender and main springs compress together. Once the tender spring closes fully, only the main spring works, which gives the firmer final rate.
• FITS:
• Tamiya 1:18 TL
