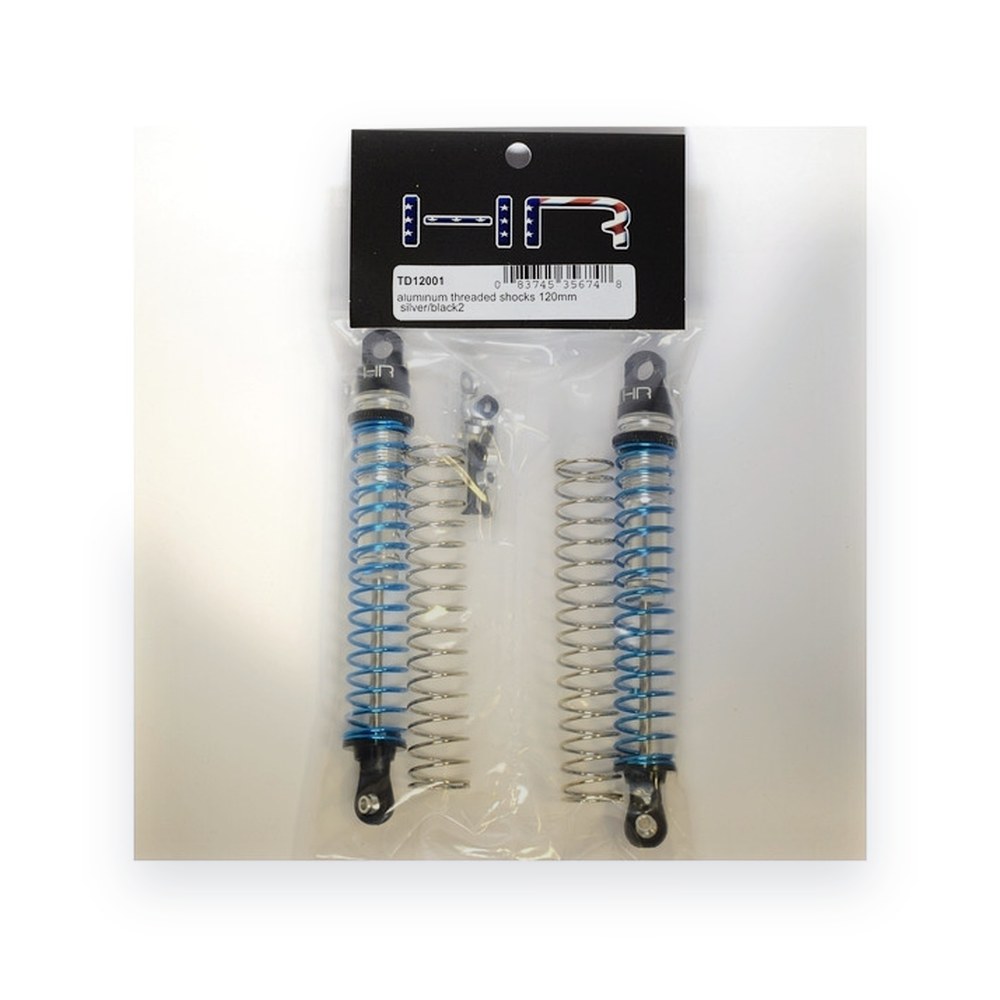

Hot Racing Threaded Aluminum Shocks, 120mm (Black/Silver)

About this part

Aluminum threaded 120mm emulsion shocks from Hot Racing, designed for the Axial AX10, HPI Wheely King and similar vehicles. They come fully assembled, so you only need to add oil. Two spring rates are included.

Features

• Aluminum threaded bodies, caps, spring adjusters and spring retainers
• 3.2mm stainless steel shafts
• Teflon two-hole 10mm pistons
• Black anodized bodies with black anodized accent caps, collars and spring retainers
• Plastic lower shock eyelet
• Springs: harder 18-coil 1.2mm wire (blue) and softer 19-coil 1.1mm wire (silver)

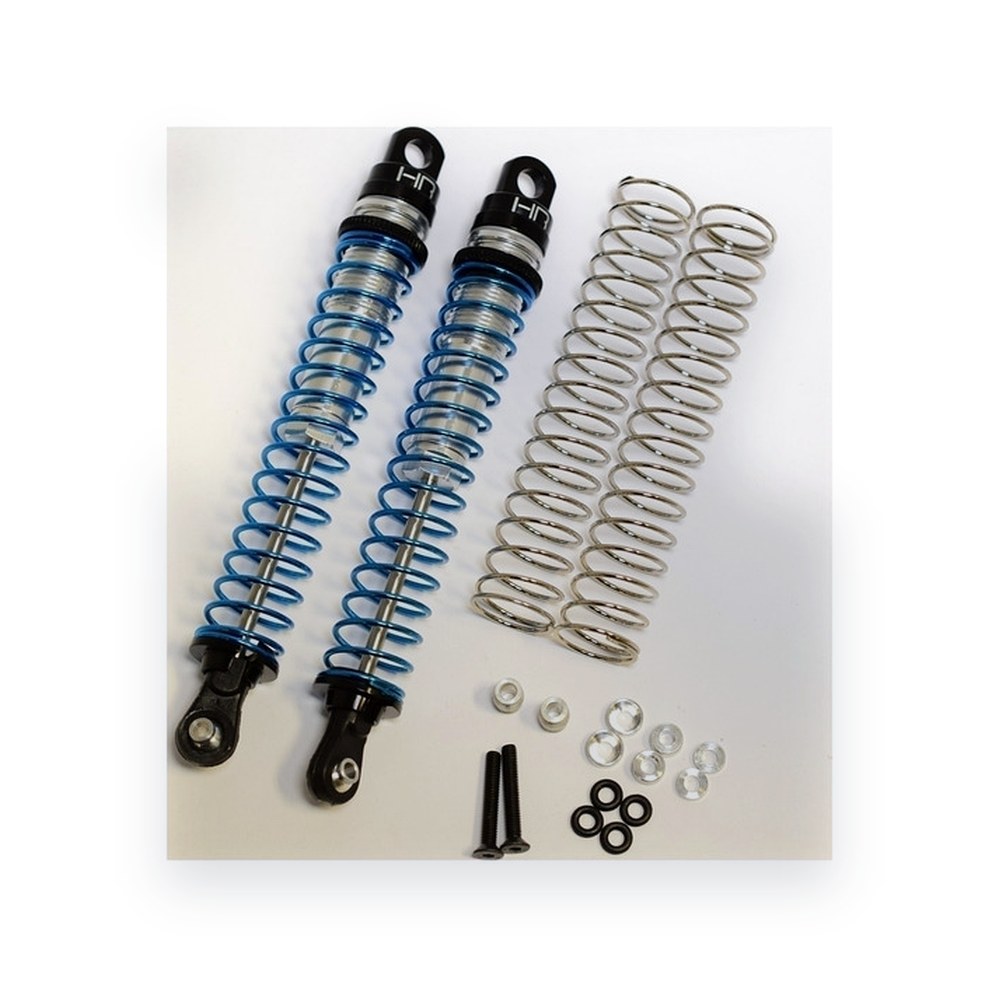

You will receive

• Two (2) assembled shocks
• Two (2) harder 18-coil 1.2mm wire springs (blue)
• Two (2) softer 19-coil 1.1mm wire springs (silver)
• Mounting hardware

Specifications

• Extended length (eye to eye): 120mm (4.7 inch)
• Collapsed length (eye to eye): 80mm (3.1 inch)

Requirements

• Silicone shock oil
• May need extra hardware or modification if not used on the Axial AX10 or HPI Wheely King
• Team Associated Green Slime grease or shock o-ring grease is recommended when rebuilding the lower seal

Note

• Replacement Hot Racing RTD120 parts include 3.2mm shafts and shock ends.
• FITS:
• Tamiya Clodbuster/Super Clodbuster, HPI Electric Wheely King 1/12, Axia

Fits
