Hot Racing Air Shocks, Black Internal Spring, 100mm

About this part

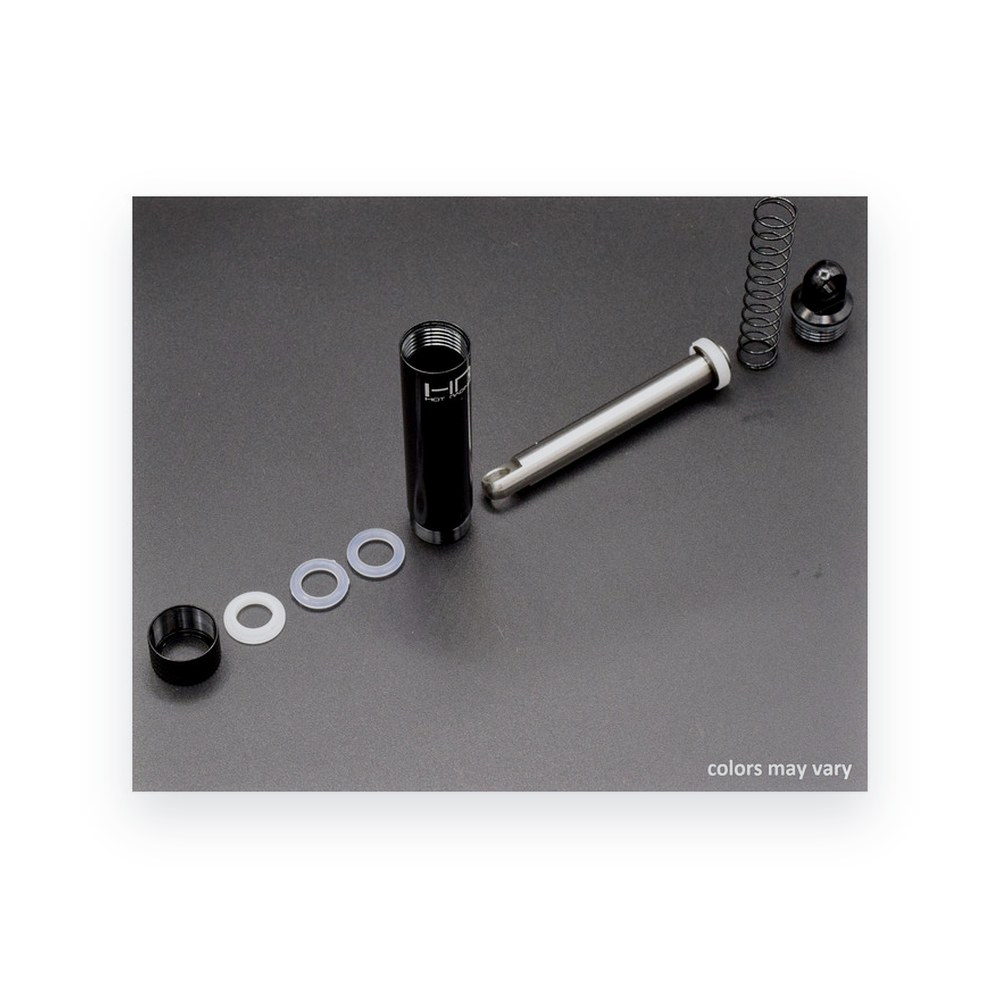

A set of 100mm internal spring air shocks for rock crawlers and custom builds. Each shock uses air damping and has a black anodized aluminum body with a precision 7mm stainless shaft.

Features

• CNC machined aluminum bodies, black anodized
• Upper cap with o-ring seal, black anodized
• Lower cap with shaft guide, black anodized
• Precision machined 7mm stainless steel shaft
• Double o-ring lower shaft seal
• Internal springs in gold (soft), black (medium) and silver (stiff)

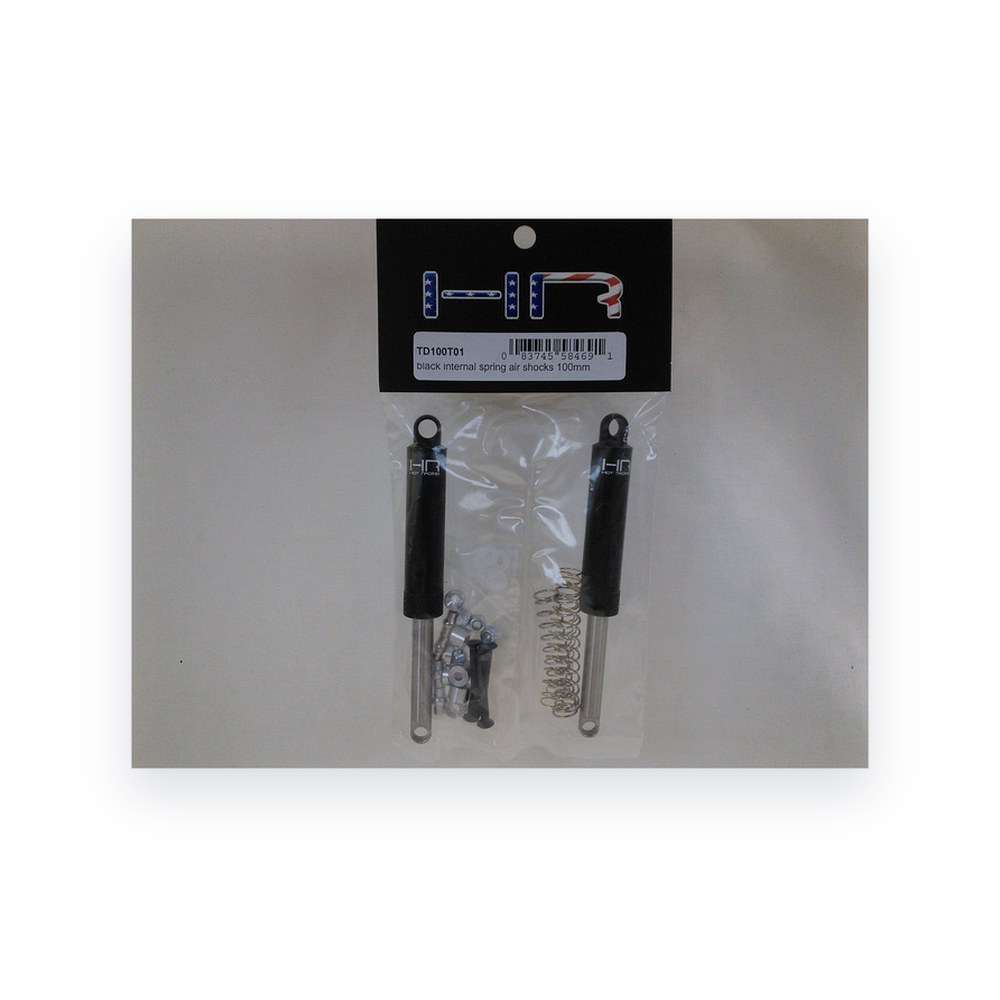

You will receive

• Two (2) assembled shocks
• Two (2) gold (soft) springs
• Two (2) black (medium) springs
• Two (2) silver (stiff) springs
• Two (2) 4.8mm ball mounts
• Two (2) 5.8mm ball mounts
• Four (4) 5x7mm offset spacers
• Four (4) 3mm countersunk washers
• Four (4) 3x25mm flat head cap screws
• Eight (8) 3mm o-rings
• Four (4) lock nuts

Requirements

• Installation on vehicle
• Team Associated Green Slime ASC1105 is recommended on the lower o-ring seals for better sealing and smoother action

Specifications

• Extended center to center length: 100mm (3.9 inch)
• Compressed center to center length: 68mm (2.7 inch)
• FITS:
• Axial AX-10 Scorpion Crawler, Axial SCX-10 II Deadbolt, Axial SCX-10 II RTR, Axial SCX-10 Scale Truck, Cross RC SG-4 4x4 D
