Hot Racing SCX30 HD Oil Dampers (4), 26mm

About this part

A 26mm adjustable HD compression spring oil damper set from Hot Racing for the Axial SCX30 and for heavier custom rock crawler builds. The dampers are oil-filled for real damping action.

Features

• CNC machined T6 aluminum shock bodies
• Precision machined 1.5mm stainless steel HD shock shafts for durability
• Oil-filled for real damping action
• Three HD spring rates included

You will receive

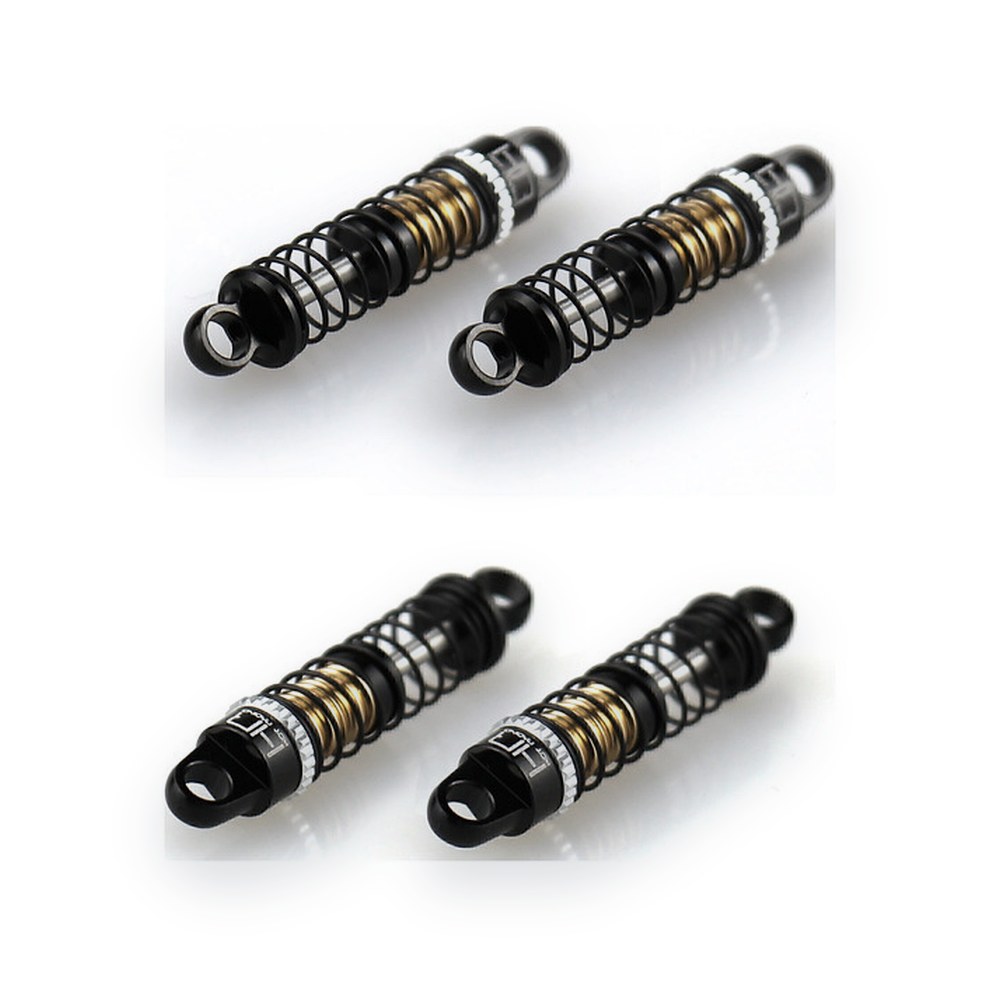

• Four (4) assembled shocks
• Four (4) silver springs, medium (0.3)
• Four (4) black springs, firm (0.35)
• Four (4) gold springs, extra firm (0.4)
• One (1) oil dropper

Requirements

• Installation on the vehicle is required
• Silicone shock oil of your choice

Specifications

• Extended center to center length: 26mm
• Compressed center to center length: 23mm
• Overall length: 30mm
• Body diameter: 3.85mm
• Shaft diameter: 1.5mm

Notes

• An emulsion setup means keeping a consistent mix of oil and air inside the shock for smooth damping. Fill with good-quality silicone oil, then loosen the cap to push out the extra oil while the shaft is half compressed. Repeatability is what makes the setup work. Hold the shaft at its midpoint while you tighten the cap, which leaves enough air to make up for the shaft entering the body.
