Hot Racing Axial SCX30 Adjustable Dampers (4), 21.5mm

About this part

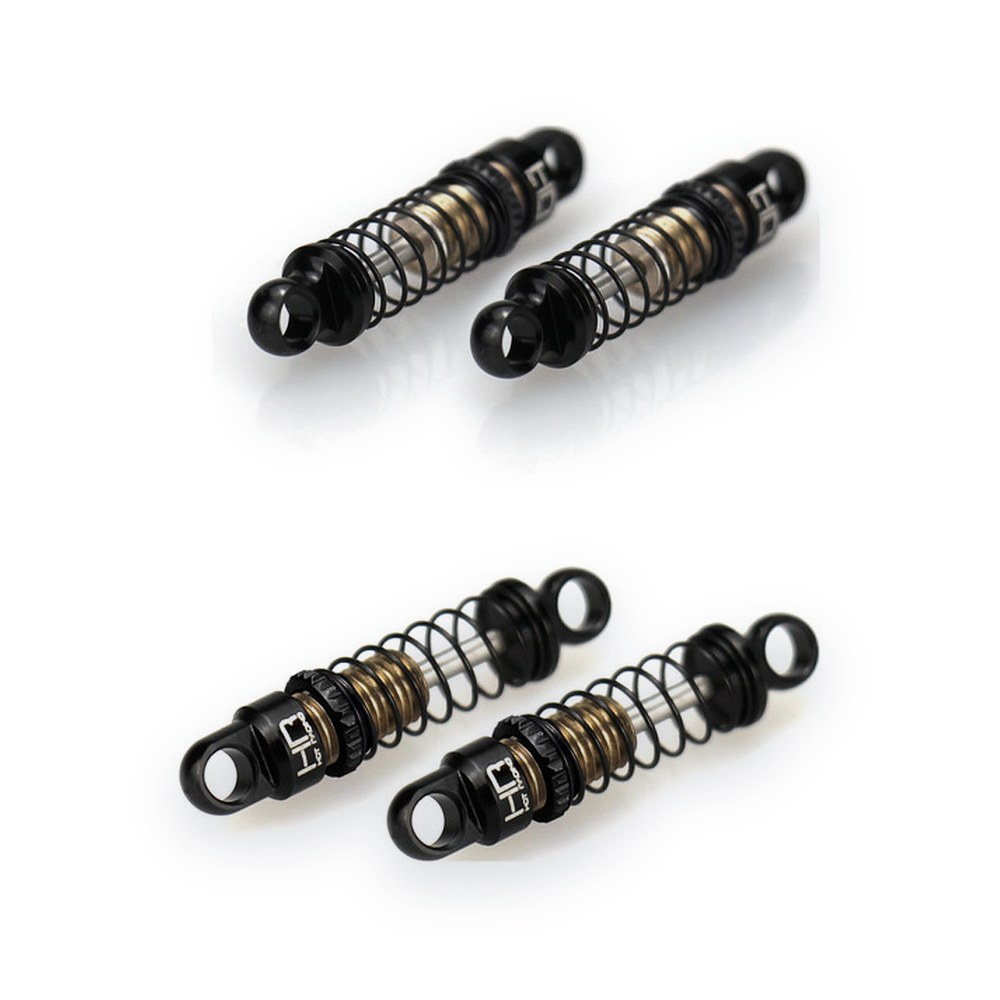

An adjustable 21.5mm compression spring damper set from Hot Racing for the Axial SCX30 and other custom rock crawler builds. These are friction dampers rather than oil-filled units.

Features

• CNC machined T6 aluminum shock bodies
• Precision machined stainless steel shock shafts for durability
• Friction shock mechanism, not oil-filled
• Three spring rates included
• Hard anodized for durability, corrosion resistance, and appearance

You will receive

• Four (4) assembled shocks
• Four (4) silver springs, soft (11T)
• Four (4) black springs, medium (10T)
• Four (4) gold springs, firm (9T)

Requirements

• Installation on the vehicle is required
• SPL10G08 is recommended for smoother action

Specifications

• Extended center to center length: 21.5mm
• Compressed center to center length: 16.5mm
• Overall length: 25.5mm
• Body diameter: 3.85mm
• Shaft diameter: 1.5mm

Notes

• To change to a different spring, first remove the cap and spring adjuster. This step matters for a smooth installation. Do not try to remove the shock end for this process.
