Hot Racing SCX24 Conversion Threaded Telescopic Shock Kit

About this part

Hot Racing aluminum conversion telescopic shock kit for the SXTF326R01 or SXTF326RX04 shocks. These conversion shocks are friction damped and need only a coating of tacky grease.

Features

• Machined aluminum and brass construction
• Telescopic design for maximum travel
• Threaded shock bodies for quick preload adjustment
• Three spring rates included

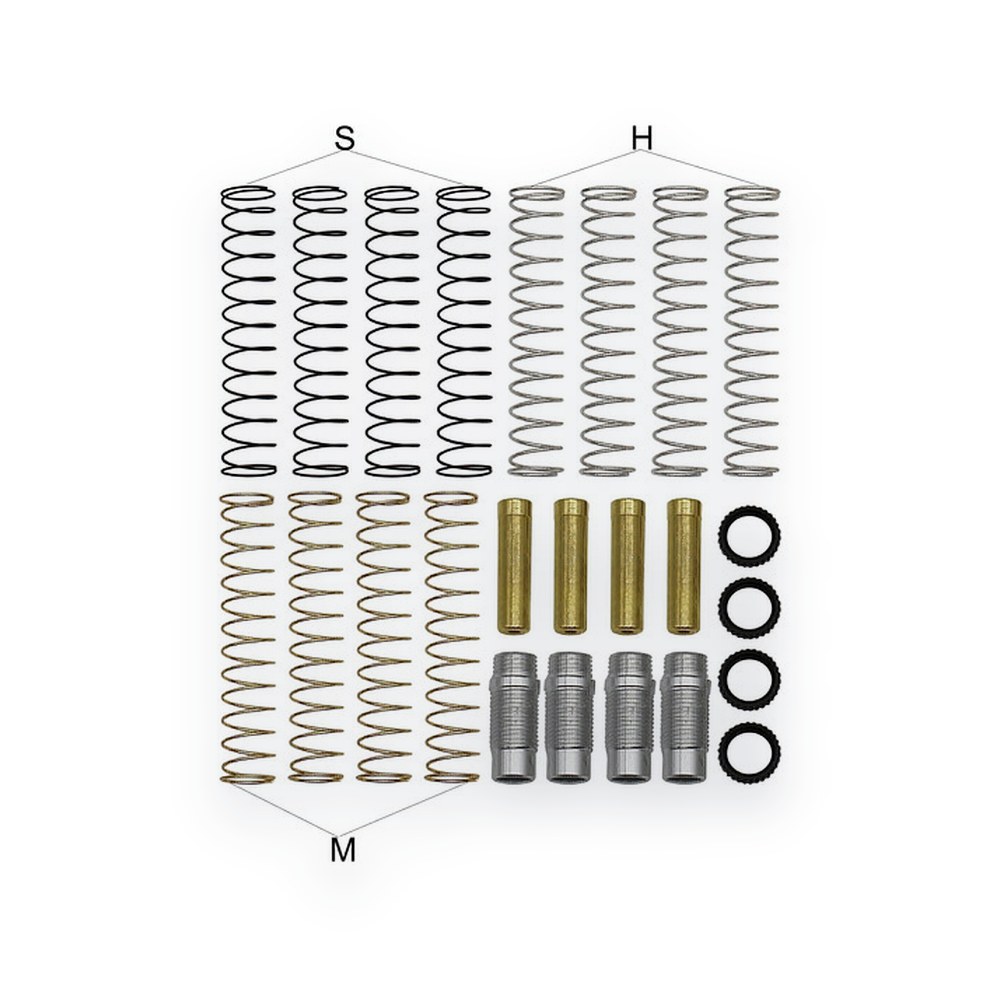

You will receive

• Four (4) threaded shock bodies
• Four (4) brass second stage shock bodies
• Four (4) upper shock spring adjusters
• Four (4) soft springs (black)
• Four (4) medium springs (gold)
• Four (4) firm springs (silver)

Requirements

• Use parts from the SXTF326R01 or SXTF326RX04 shock
• A 0.05in hex wrench for the screws
• Tacky grease or silicone diff lube, applied for a heavy coating

Specifications

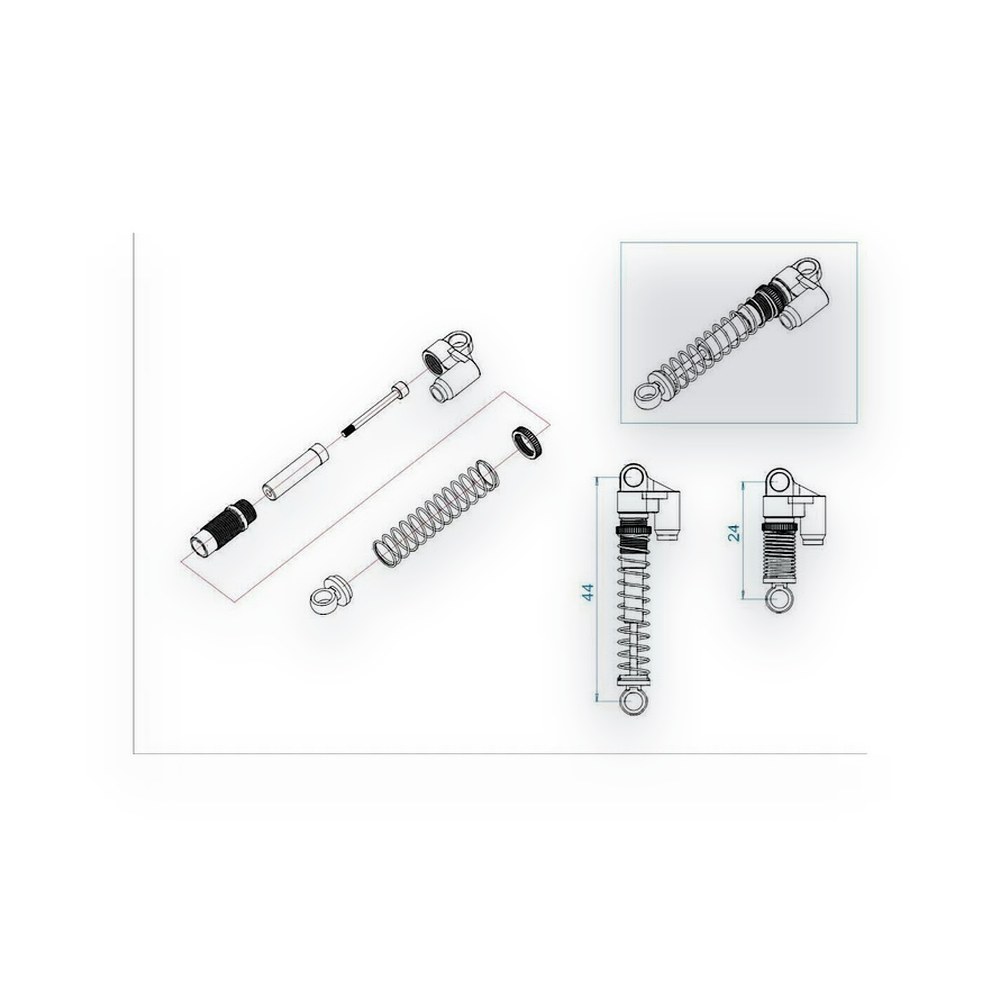

• Extended length, eye to eye: about 48.5mm
• Compressed length, eye to eye: about 28.5mm
• Stroke: 20mm
• Spring length: 32mm, 14 turn (0.3, 0.35, 0.4)

Notes

• Replaces the Axial AXI31612 SCX24 shock set. The reservoir is non-functional. Mount with the wide flange facing outward to retain the O-rings.

Fits

Replaces stock part
