Hot Racing Steel Helical Diff Ring/Pinion Overdrive Gear Set, 36T/14T

About this part

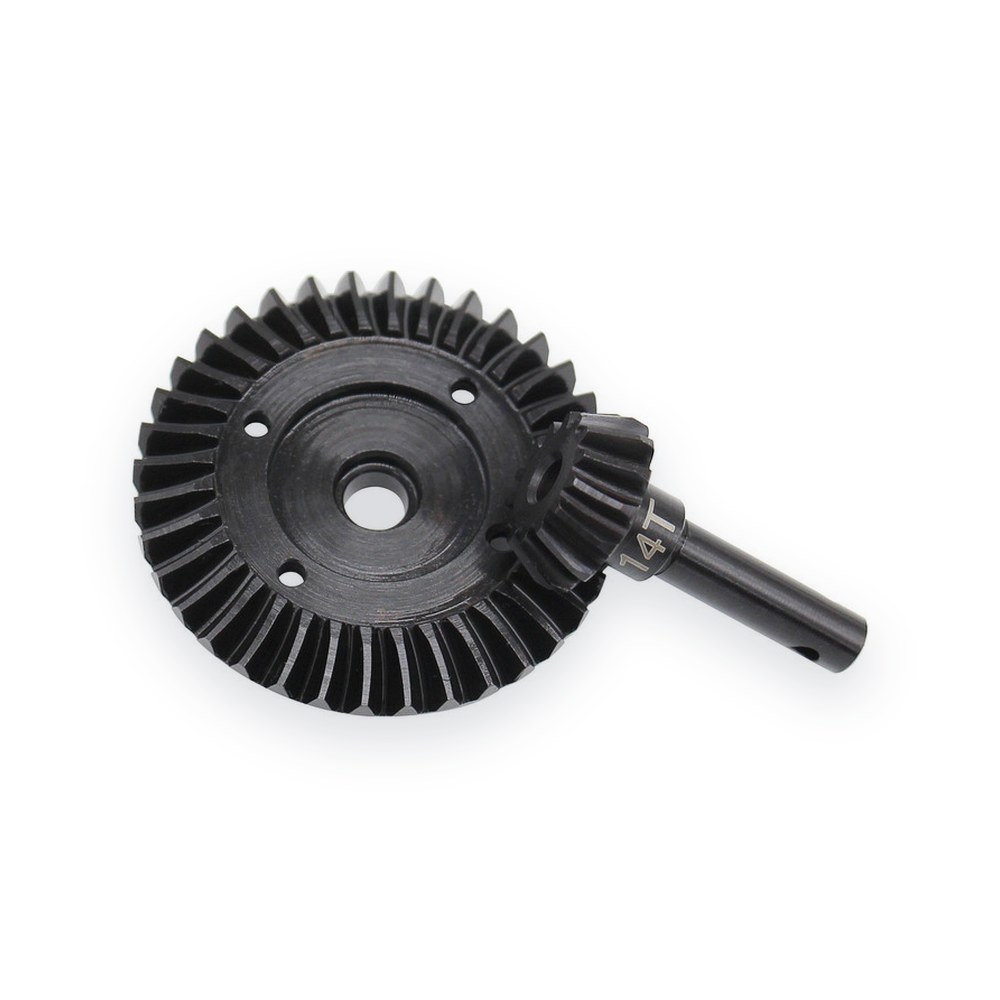

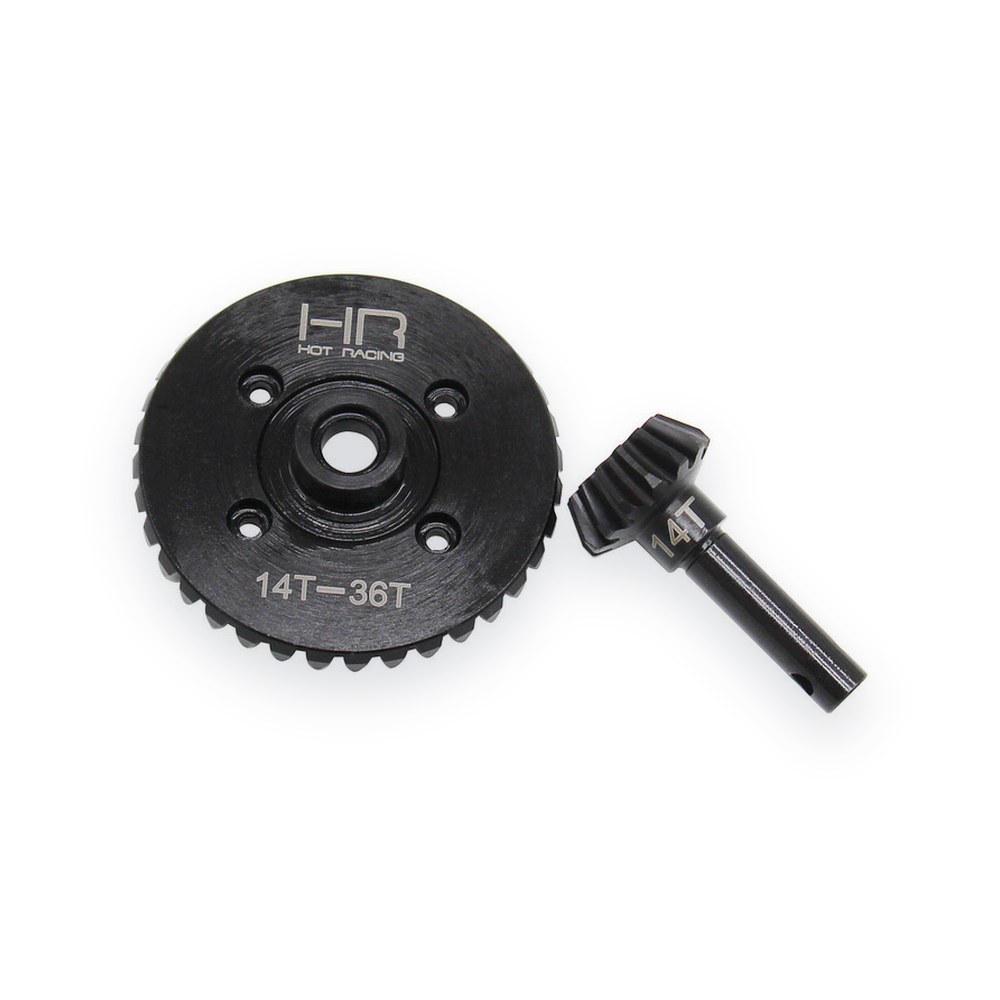

Hot Racing steel helical spiral overdrive gear set with 36 teeth on the ring gear and 14 on the pinion, a 12 percent overdrive ratio for 1/10 scale Axial AX10, EXO, RR10 Bomber, SCX10, SMT10, Wraith and Yeti models.

Features

• Precision machined helical spiral cut gears are stronger and run smoother than factory bevel cut gears
• High carbon steel construction
• The 36T/14T ratio is a 12 percent overdrive compared with the stock 38T/13T. It raises wheel speed and is commonly used in the front for digs.
• Works on the front or rear. It is usually fitted at both ends together, or at the front only to increase front digs.

You will receive

• One 36 tooth spiral cut ring gear
• One 14 tooth spiral cut pinion gear

Requirements

• Install following the kit manual
• Driveshaft attachment needs an M3x2.5x11mm screw shaft (Axial AXA0175 or Hot Racing SSP311), or an M3x2.5x12mm screw shaft (Axial AXA176)
• If originally equipped, do not use the stock M3x3mm setscrew (Axial AXA180)
• Use medium blue threadlock if the screws thread into metal
• Hot Racing SPL10G05 high temp grease is recommended

Comments

• Replaces the Axial AX30392 38/13T bevel cut zinc cast gears.

Fits

Replaces stock part
